Key Features of the WiiM Vibelink Amp:

  • Housing designed to perfectly match the WiiM Ultra
  • Perfectly pair with WiiM streamers Mini, Pro, Pro Plus or Ultra
  • Output Power: 100W per channel at 8Ω (stereo)
  • ESS 9038Q2M high-performance DAC
  • Premium unibody aluminium for durability & heat dissipation
  • Analog Inputs: 1x RCA Stereo (Line-In, pure analogue signal path)
  • Digital Inputs: 1x Optical (TOSLINK), 1x Coaxial (S/PDIF)
  • Audio Output: Stereo Banana Plugs
  • TI TPA3255 Class-D with PFFB (Post-Filter Feedback) technology
  • Total Harmonic Distortion (THD+N): ≤0.005%
  • Signal-to-Noise Ratio (SNR): ≥110dB.
  • Frequency Response: 20Hz – 20kHz ± 0.5dB
  • Impedance Range: 3~8 ohms
  • 12V Trigger In: Auto power-on with compatible devices
  • Bit-Perfect Playback: Supports up to 192kHz/24-bit audio.
  • Pure Analog Input: No ADC conversion, maintaining signal integrity.

The Vibelink Amp delivers room-filling sound with exceptional clarity and precision, effortlessly handling complex soundstages without distortion. Boasting 100W per channel or 200W per channel, it packs 67% more power than the WiiM Amp Pro, it’s streaming partner.

It’s designed for audiophiles and home theatre enthusiasts seeking a more immersive listening experience Paired with its built-in premium DAC, it supports high-resolution audio formats, preserving the depth and detail of every track. Whether you're streaming music, watching movies, or powering large speakers, the Vibelink Amp maintains outstanding fidelity across all volumes.

Designed to seamlessly integrate into the WiiM ecosystem, the Vibelink Amp is the ideal match for WiiM streamers, including the WiiM Ultra, Pro Plus, Pro, and Mini. With the same user-friendly OS and form factor as the WiiM Ultra, it enables effortless pairing and outstanding multi-room audio.

Dimensions and Weight:

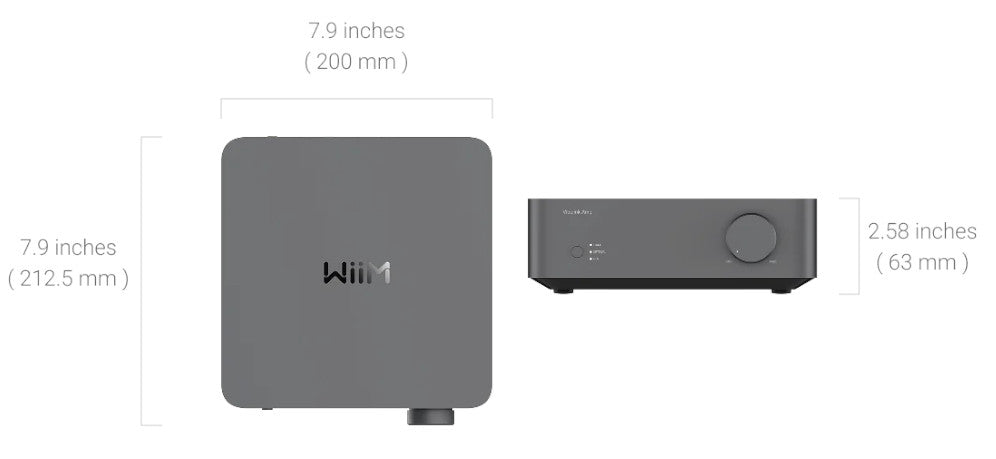

Dimensions: 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)

Weight: 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Max



Power & Amplification

• Output Power : 100W per channel at 8Ω (stereo)

• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology

• Total Harmonic Distortion (THD+N) : ≤0.0005%

• Signal-to-Noise Ratio (SNR) : ≥120dB

• Frequency Response: 20Hz – 20kHz ± 0.5dB

• Impedance Range: 3~8 ohms



Audio Processing

• Premium DAC : ESS 9039Q2M high-performance DAC

• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio

• Dynamic Range : ≥120dB for high-resolution sound

• Pure Analog Input : No ADC conversion, maintaining signal integrity

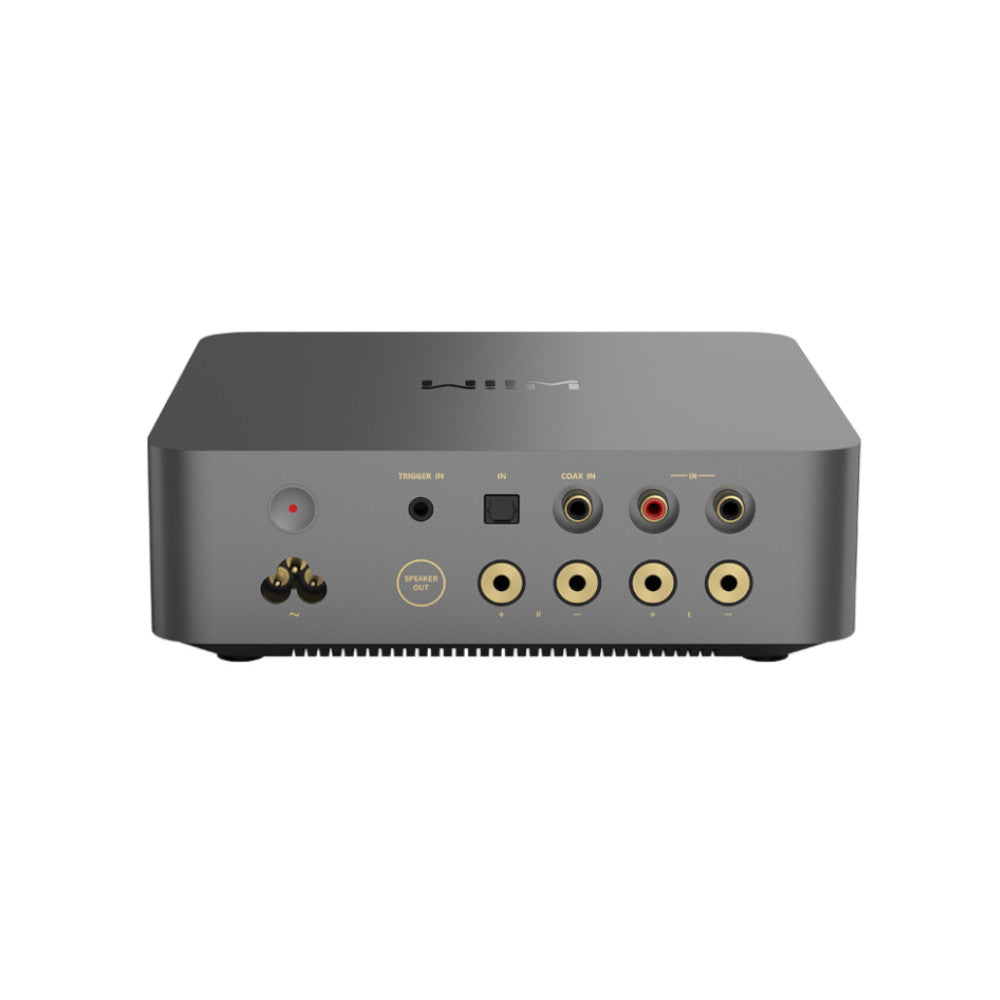

Input & Output Options

Analog Inputs:

• 1x RCA Stereo (Line-In, pure analogue signal path)

Digital Inputs:

• 1x Optical (TOSLINK) – Up to 192kHz/24-bit

• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit

Speaker Outputs:

• Gold-plated binding posts (supports banana plugs or bare wire connections)

Trigger & Power Management:

• 12V Trigger In: Auto power-on with compatible devices

• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Supported Audio Formats

PCM up to 192kHz/24-bit (through digital sources)



Control Interfaces

Volume Knob: Adjusts volume

LED Indicator: Three 4-color RGBW LED indicates source input and device status



Build & Design

• Chassis: Premium unibody aluminium for durability & heat dissipation

• Thermal Management: Copper heat pipe, large aluminium heatsink, unibody aluminium case, and precision PID thermal control

• Cooling System: Passive, silent operation



Package Contents

Use Guide *1

Power Cable *1

RCA Cable *1

Optical Cable *1

Banana Plugs *4



WiiM by WiiM

WiiM Vibelink Amp Integrated Amplifier

Regular price
$499.00
Sale price
$499.00
Regular price
$599.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Power. Precision. Pure Performance.

Designed for music lovers and home theatre enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.
