Powered by the premium ESS 9039Q2M DAC, dual TI TPA3255 amp chips, and six TI
OPA1612 op-amps, it ensures stunning Hi-Res audio playback. PFFB technology guarantees stable, load-independent performance across all speaker types.

With Wi-Fi 6E, Bluetooth 5.3 with LE Audio, and HDMI ARC with Dolby Digital support, it’s
equally at home in a stereo setup or cinematic home theater. The WiiM Home App offers
seamless control, multi-room sync, and smart home integration via Alexa, Google Assistant, and Siri.

Effortless to set up, powerful to experience—WiiM Amp Ultra is where performance meets
precision.

Key Features of the WiiM Amp Ultra

• Powerful Amplification
  Delivers 100W per channel at 8Ω or 200W at 4Ω—easily drives up to four passive
  speakers with stunning clarity and dynamics.

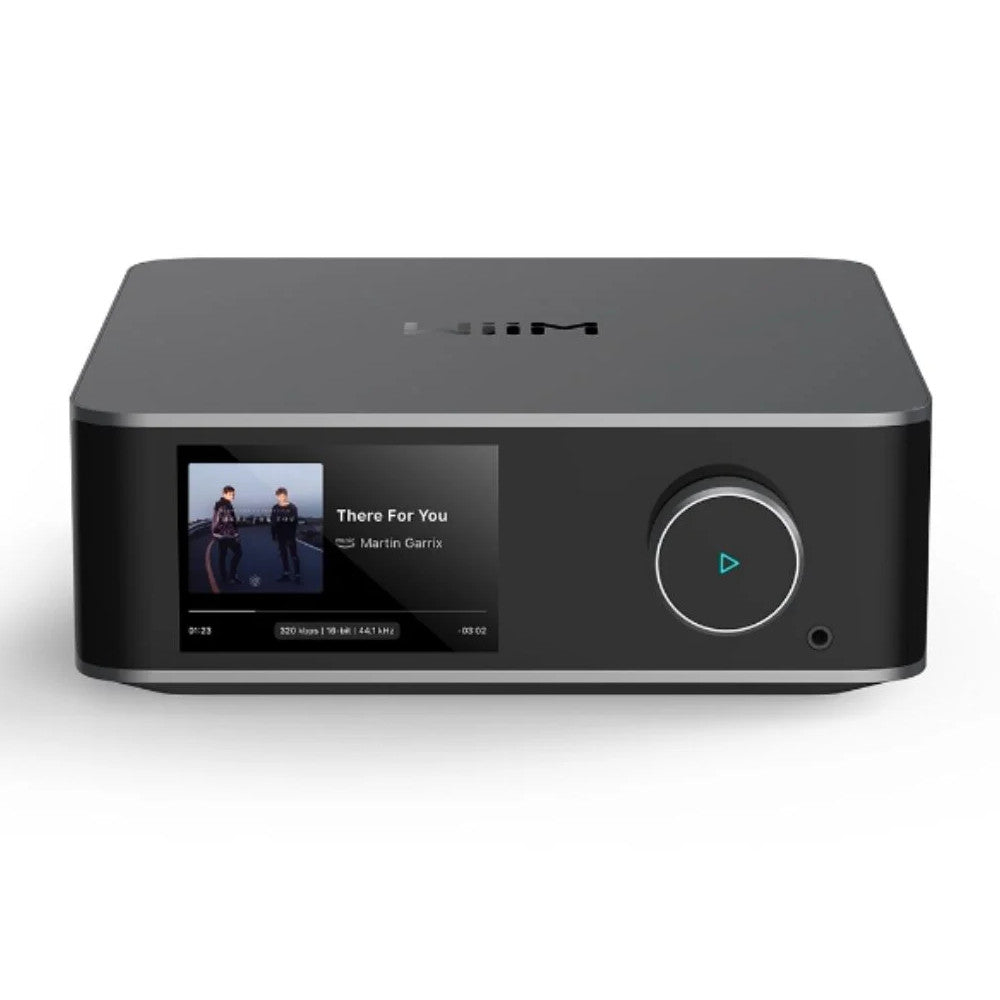

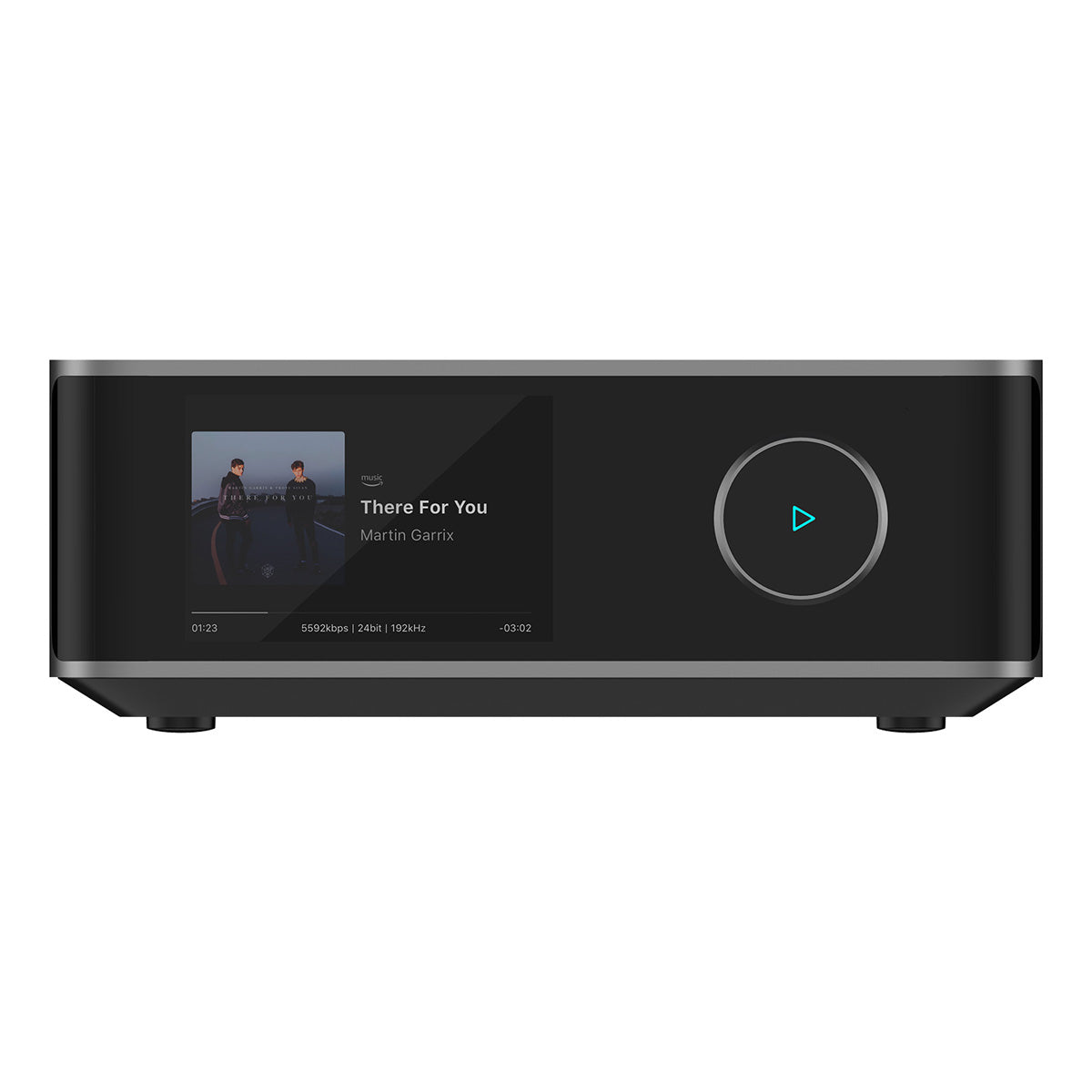

• Elegant Touchscreen Design
  Housed in a premium unibody aluminum chassis with a vibrant 3.5” glass-covered
  touchscreen for intuitive control and stunning aesthetics.

• Audiophile-Grade Components
  Features the 32-bit/384kHz ESS ES9039Q2M SABRE DAC, dual TI TPA3255 Class-D amp
  chips, and six TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.

• Post Filter Feedback (PFFB) Technology
  Ensures stable, load-independent performance across all speaker types—delivering
  cleaner sound and improved amplifier control, especially with complex loads.

• Next-Gen Connectivity
  Equipped with Wi-Fi 6E, Bluetooth 5.3 with LE Audio, and dual antennas for fast, stable
  streaming across all wireless protocols.

• Room Calibration Built-In
   Advanced room correction technology analyzes your space and customizes output for
   speakers and subwoofer to optimize soundstage and tonal balance.

• Exceptional Sound Performance
   Achieves -105 dB THD+N and 120 dB SNR at 5W—ideal for high-fidelity playback
   across any genre or setup.

• All-in-One Streaming Hub
   Stream music, podcasts, audiobooks, and internet radio in Hi-Res up to 24-bit/192kHz
   directly to your speaker system.

• Universal Music Service Support
   Seamless access to Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora,
   iHeartRadio, TuneIn, and more via the WiiM Home App.

• Cast with Ease
   Supports Google Cast, Alexa Cast, DLNA, Spotify Connect, TIDAL Connect, DLNA, and
   Roon for effortless playback from your favorite apps.

• Flexible Input Options
   Connect turntables, TVs, or other sources and broadcast audio wirelessly across your
   multi-room system.

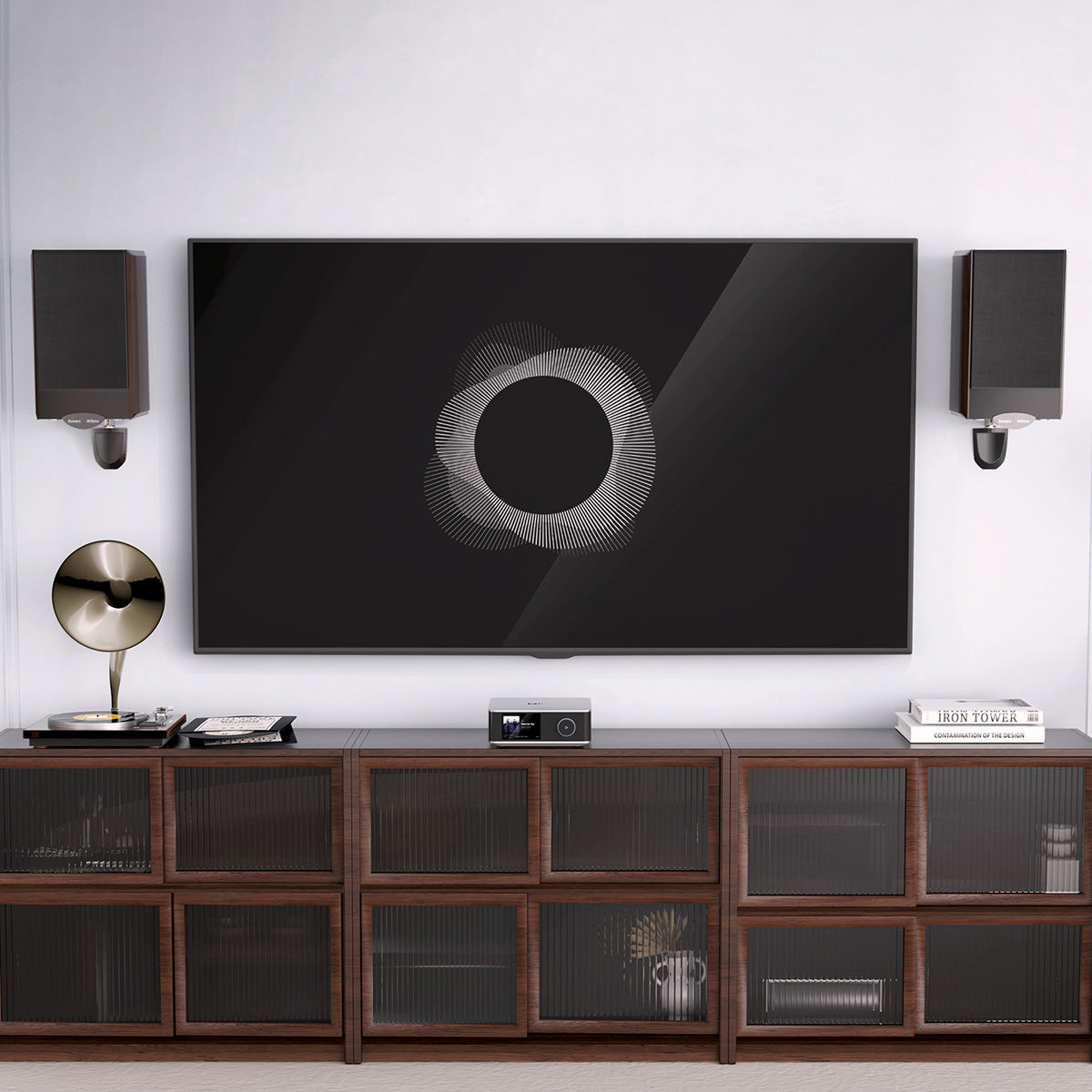

• Cinematic TV Audio
   HDMI ARC, Dolby Digital decoding, and dedicated subwoofer output bring immersive
   home theater sound to your living room.

• Smart Voice Control
   Works with Alexa, Google Assistant, and the WiiM Voice Remote for hands-free
   playback and system control.

• Customizable EQ
   Fine-tune your audio with parametric and graphic EQs tailored to your own preference.

• Future-Proof Experience
   Receive ongoing firmware updates with new features, services, and performance
   enhancements.

• Home Theater Integration
   Functions as the front, surround or center channel speaker in a Dolby 5.1 setup

• Smart Preset - Streamlines the listening experience by offering quick access to
    frequently used content and settings.

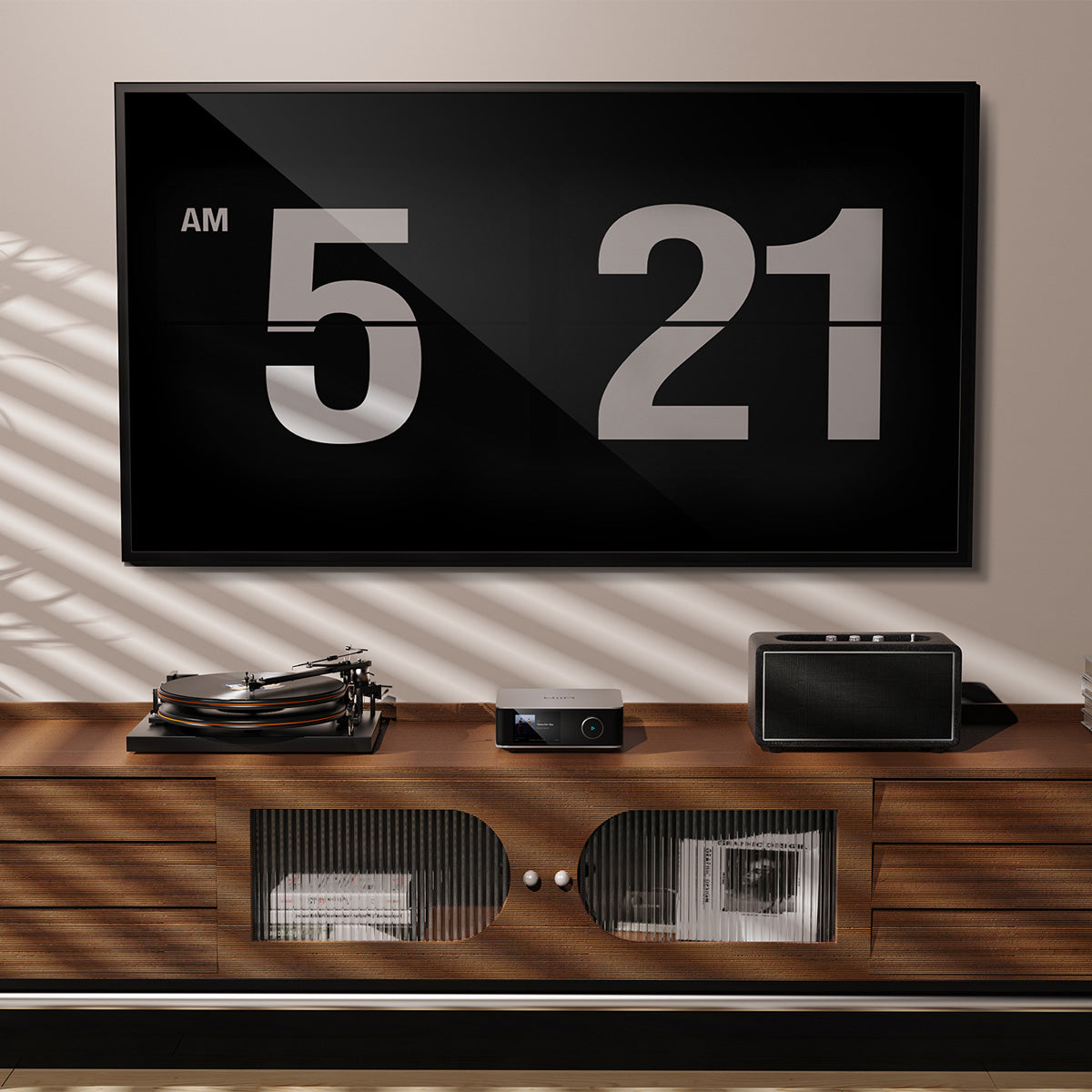

• Alarm Clock
   Set the alarm time, occurrence, and choose from various music sources.

Audio Performance

• Power Output (THD = 0.08%, two channels driven):▪ 100 W per channel @ 8Ω▪ 200 W per channel @ 4Ω

• Amplifier Technology :Class-D with PFFB (Post-Filter Feedback) technology

•Total Harmonic Distortion (THD+N):≤0.005%, -106 dB (A-weighted)

• Signal-to-Noise Ratio (SNR) :≥120dB

• Damping Factor:94

• Frequency Response:20Hz – 20kHz ± 0.5dB

• Impedence Range:2 – 8Ω

Audio Processing

Premium Audio Components:ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.

Bit-Perfect Playback:Supports up to 192kHz/24-bit audio

Dynamic Range:≥120dB for high-resolution sound

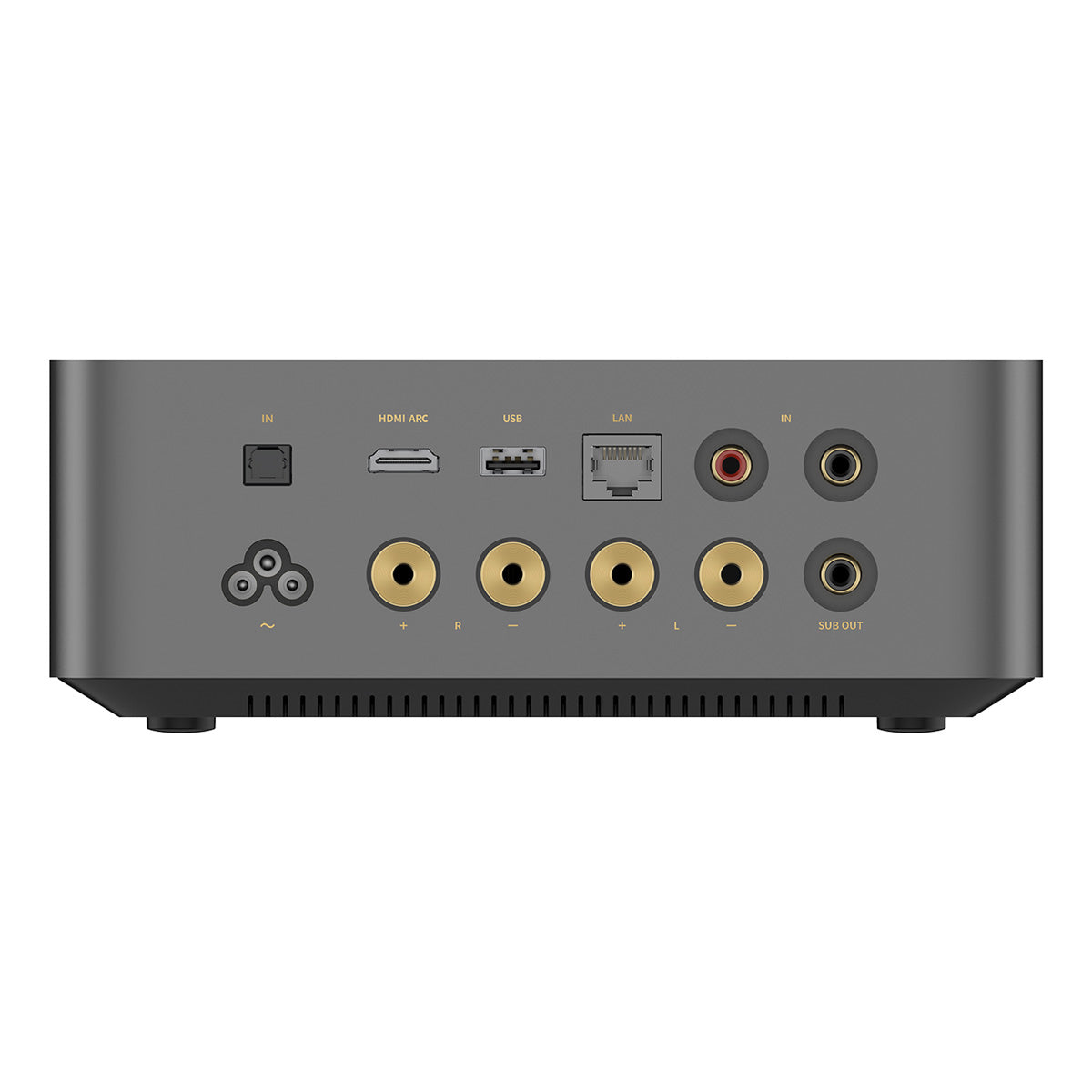

Input & Output Options

✅ Analog Inputs:

• 1x RCA Stereo: Connects to external audio sources like CD players or PCs

✅ Digital Inputs:

• 1x Optical (TOSLINK) – Up to 192kHz/24-bit

• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats

✅ Speaker Outputs:

• Gold-plated binding posts (supports banana plugs or bare wire connections)

✅ USB Audio Output:• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant

✅ Sub Output:• Dedicated output for powered subwoofers (RCA Mono)

Wireless & Network Connectivity

- Wireless Connectivity: Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming

- Wired Network:Ethernet (100Mbps): Standard RJ45 port

EQ & Sound Customization

- Input-Specific EQ: Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In

- EQ Tools:

▪ 24 Preset EQ Profiles

▪ 10-Band Graphic & Parametric EQ

▪ Built-in Room Correction with mic-guided acoustic tuning

Streaming & Smart Features

- Streaming Protocols:

▪ WiiM Home App

▪ Chromecast Audio

▪ Spotify Connect

▪ TIDAL Connect

▪ DLNA, LMS

▪ Roon Ready (Certification Pending)

• Multi-Room Audio:Compatible with WiiM, Google Home, and Alexa multi-room systems

• Stereo Pairing:Supports L/R speaker setup for enhanced stereo imaging

• Home Theater Mode:Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC

• Smart Presets:Quick access to favorite playlists, sources, or routines

• Alarm Clock:Configurable time, repeat schedule, and music source

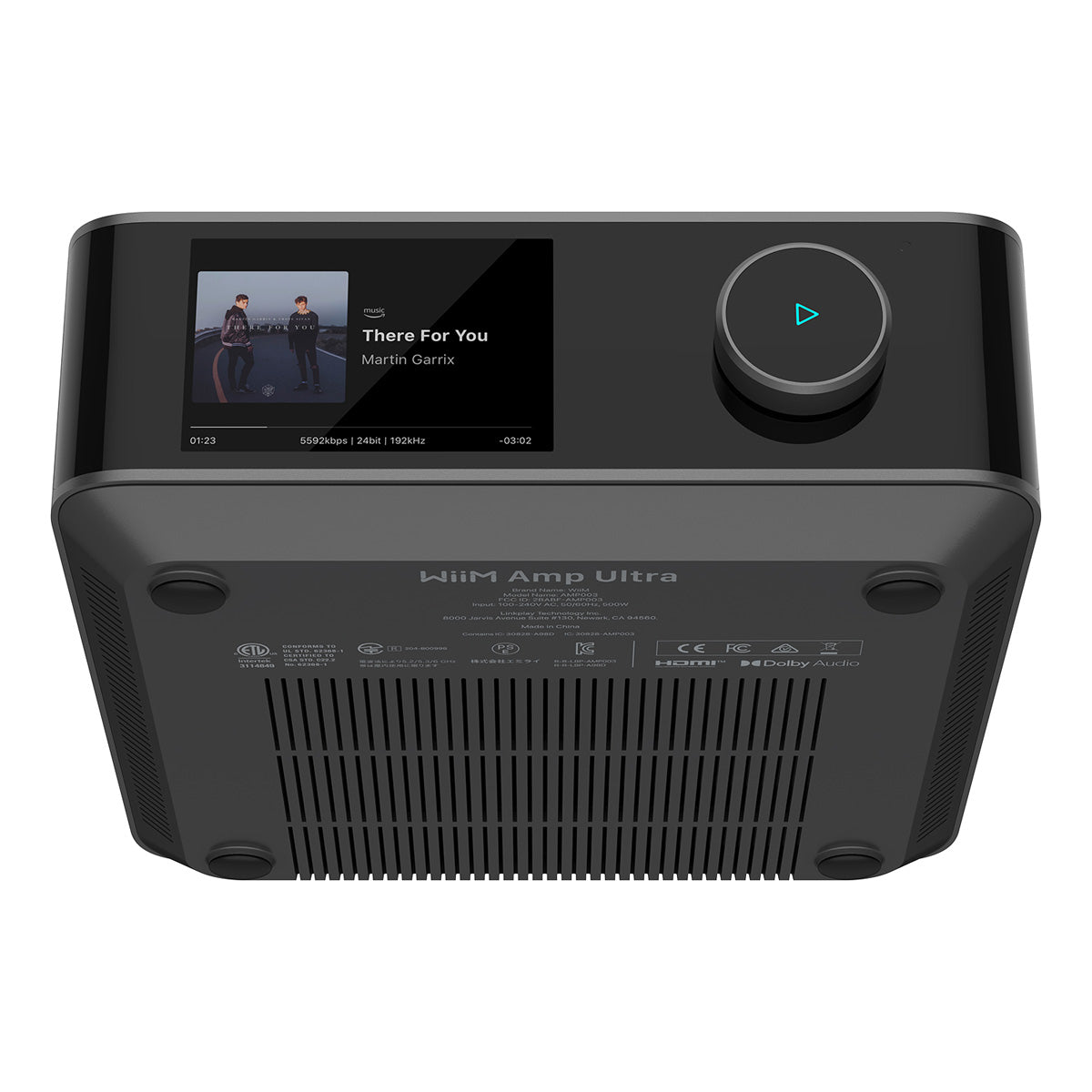

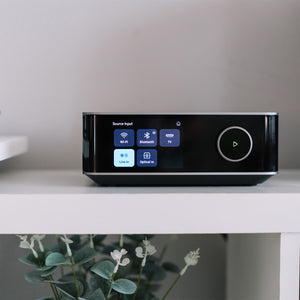

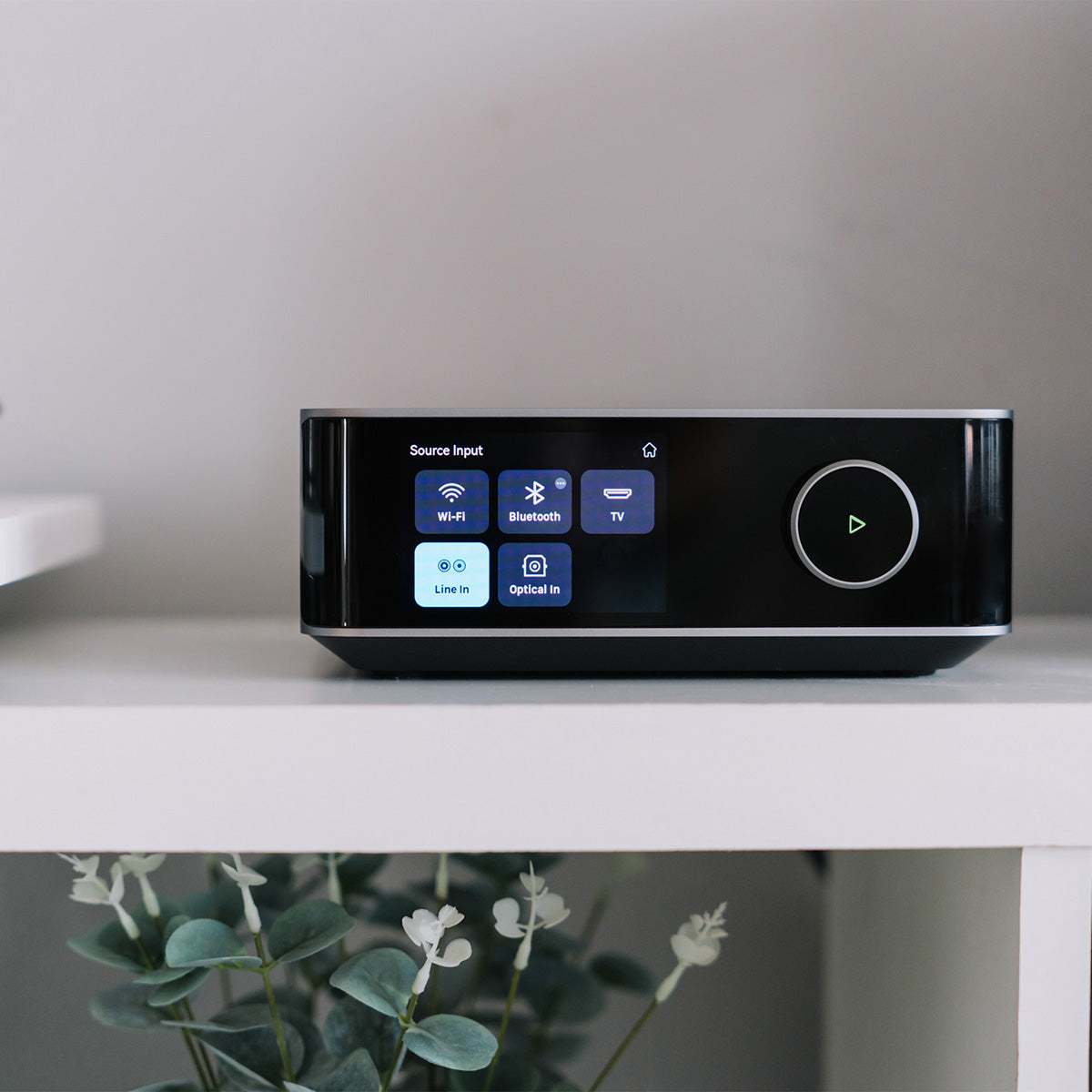

Touch Display

- Screen: 3.5” glass-covered capacitive touchscreen Functions:

▪ Playback controls, album art, EQ adjustment, input switching

▪ Queue view, preset access, VU meters, time/date in standby

▪ Custom wallpapers and onboarding setup (OOBE)

▪ Supports firmware updates directly via screen

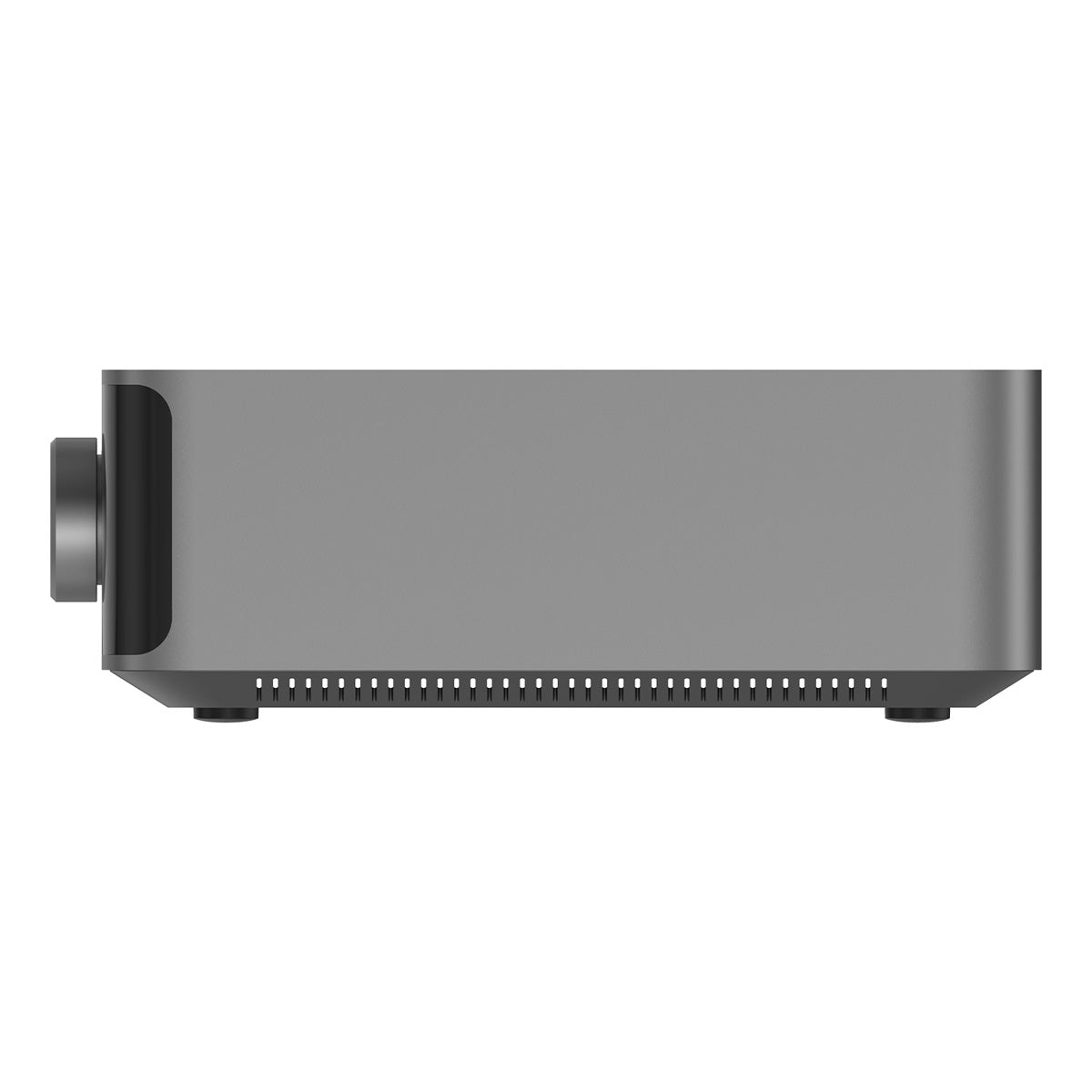

Design & Controls

- Chassis:

Precision-machined unibody aluminum for durability & heat dissipation

- Dimensions (mm): 200 W x 75 H x 200 D

- Weight: 2.45 kg

- Physical Controls:

Multifunctional rotary knob (Volume, Play/Pause)

Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control

Cooling System: Passive, silent operation

Package Contents

* User Guide

* 1Power Cable

* 1RCA Cable

*1 Optical Cable

* 1 HDMI Cable

*1 Remote

* 4 x Banana Plugs
