Key Features of the Technics SL-1300G:

• Coreless direct drive motor achieving stable rotation
• ΔΣ-Drive suppresses vibrations from the motor for smoother, more accurate rotation
• Anti-vibration structure with a three-layer platter and a two-layer chassis
• Low-noise, low-voltage power circuit and a switching power supply
• Tonearm achieving high Initial-motion sensitivity
• High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibration

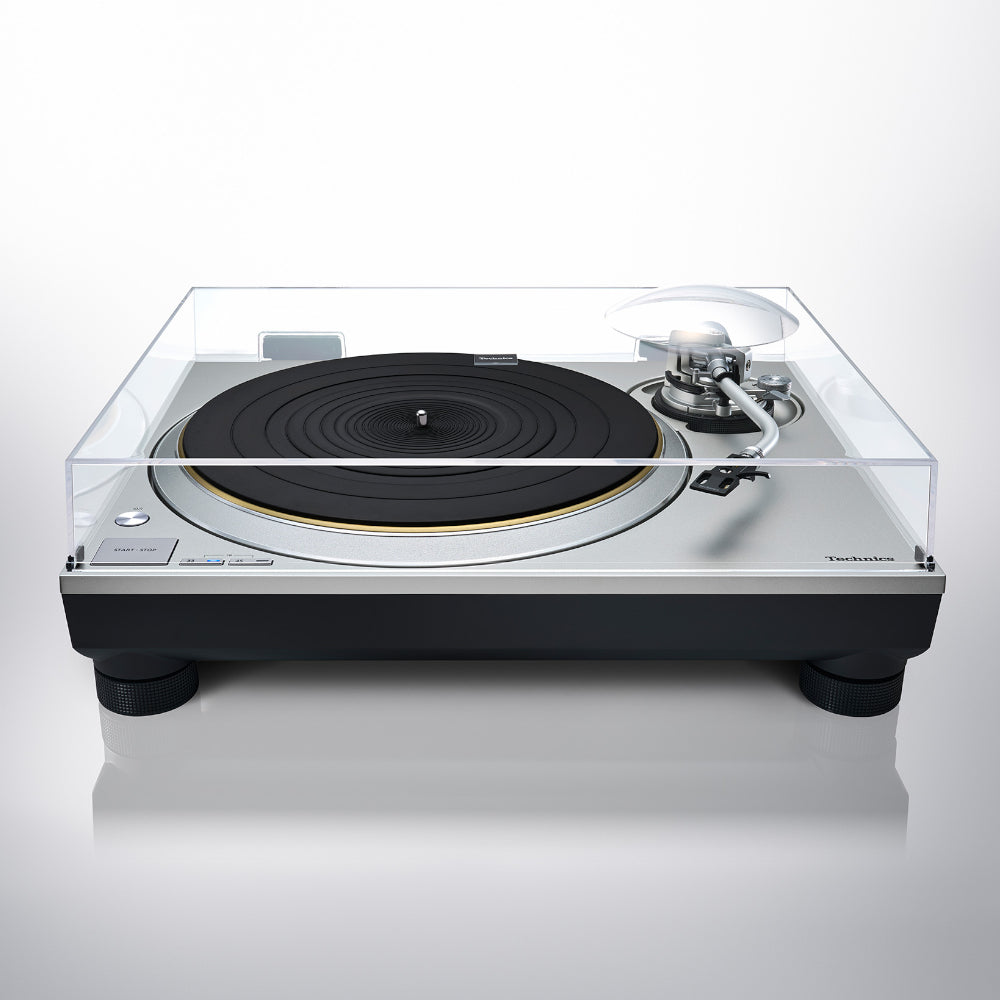

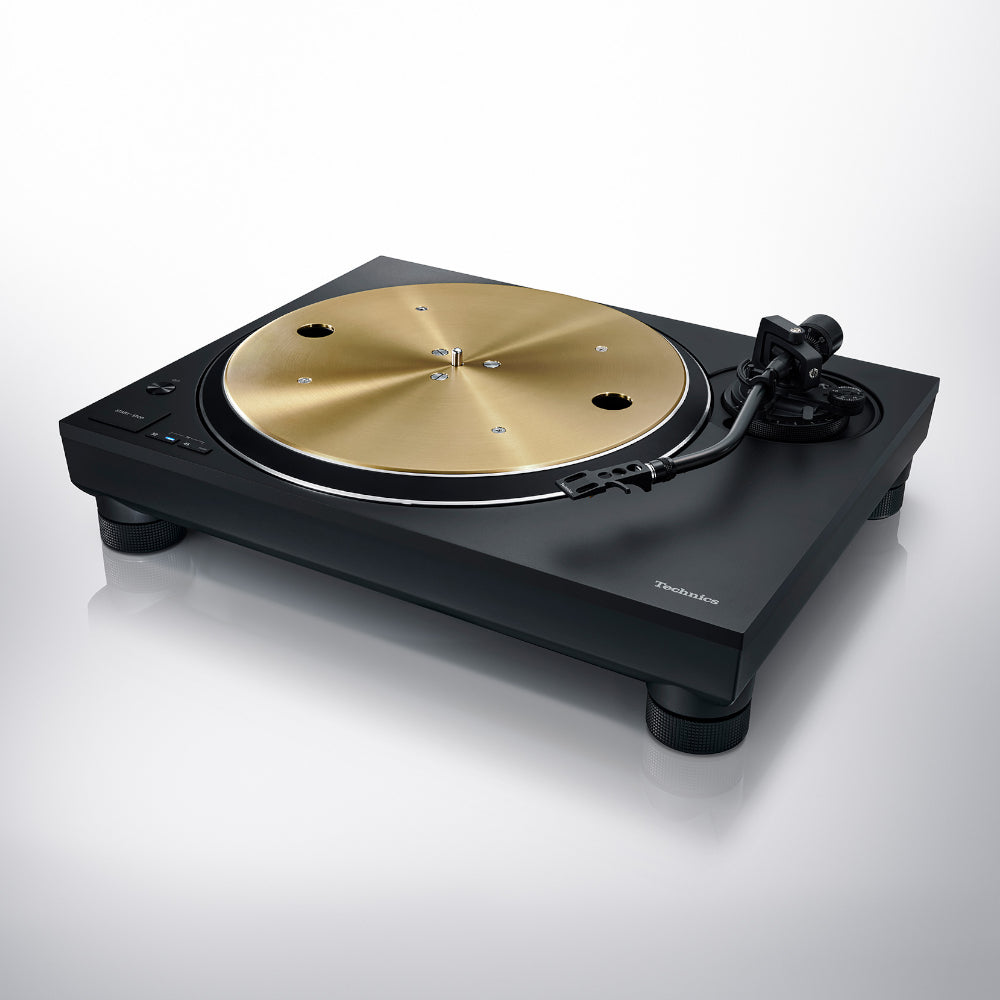

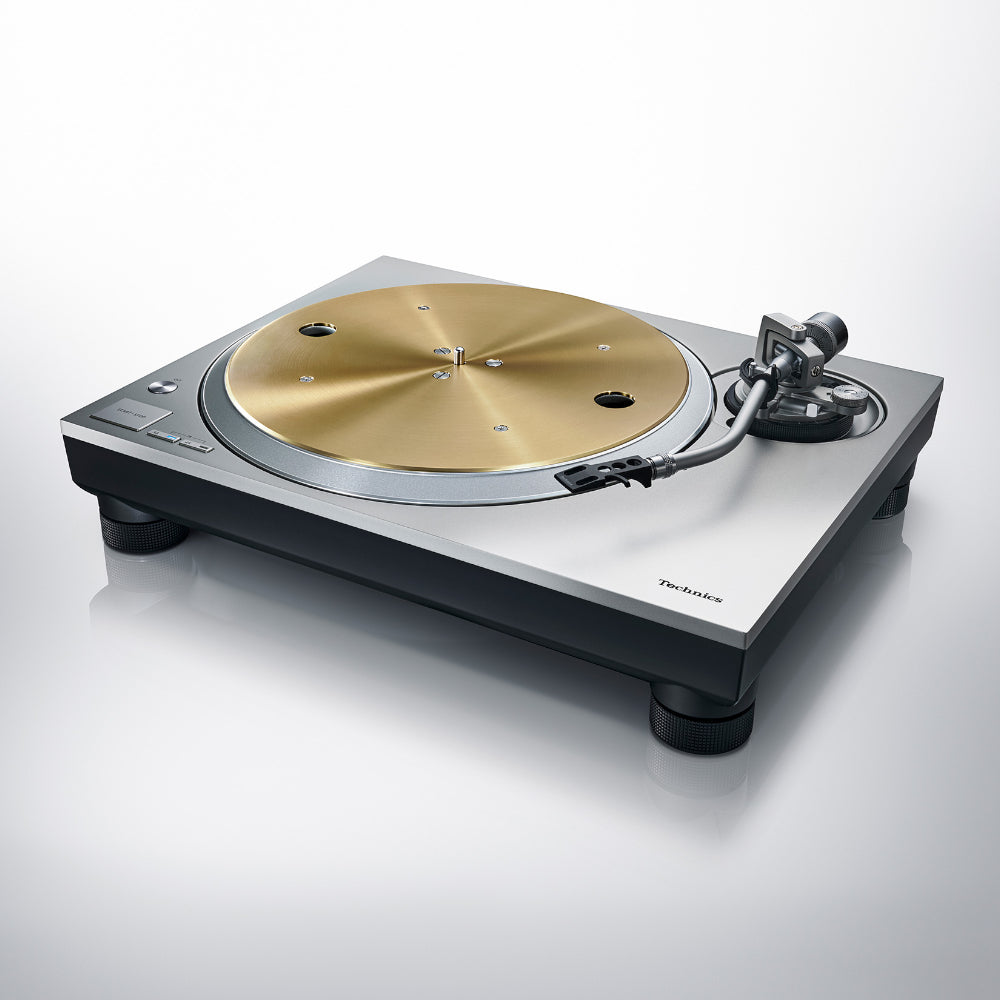

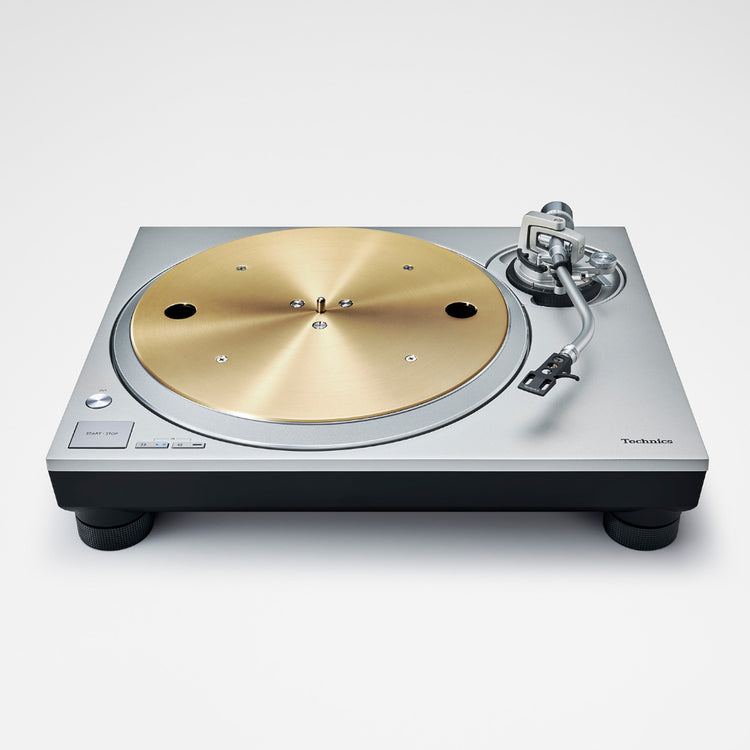

Turntable with a Hi-Fi design featuring ΔΣ-Delta Sigma Drive, a new motor drive technology that delivers high rotational accuracy and low vibration. The turntable’s new motor, three-layer platter, and high-rigidity chassis ensure even higher sound quality.

Coreless Direct Drive Motor Achieving Stable Rotation

The use of a coreless direct-drive motor with no iron core eliminates uneven rotation of the turntable known as cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque and reduces minute vibrations during rotation. Furthermore, the SL-1300G’s motor was redesigned to eliminate subtle vibrations that could affect sound quality. To improve rigidity, the same reinforcement pattern as the Reference Class SL-1000R/SP-10R was used for the coil mounting base.

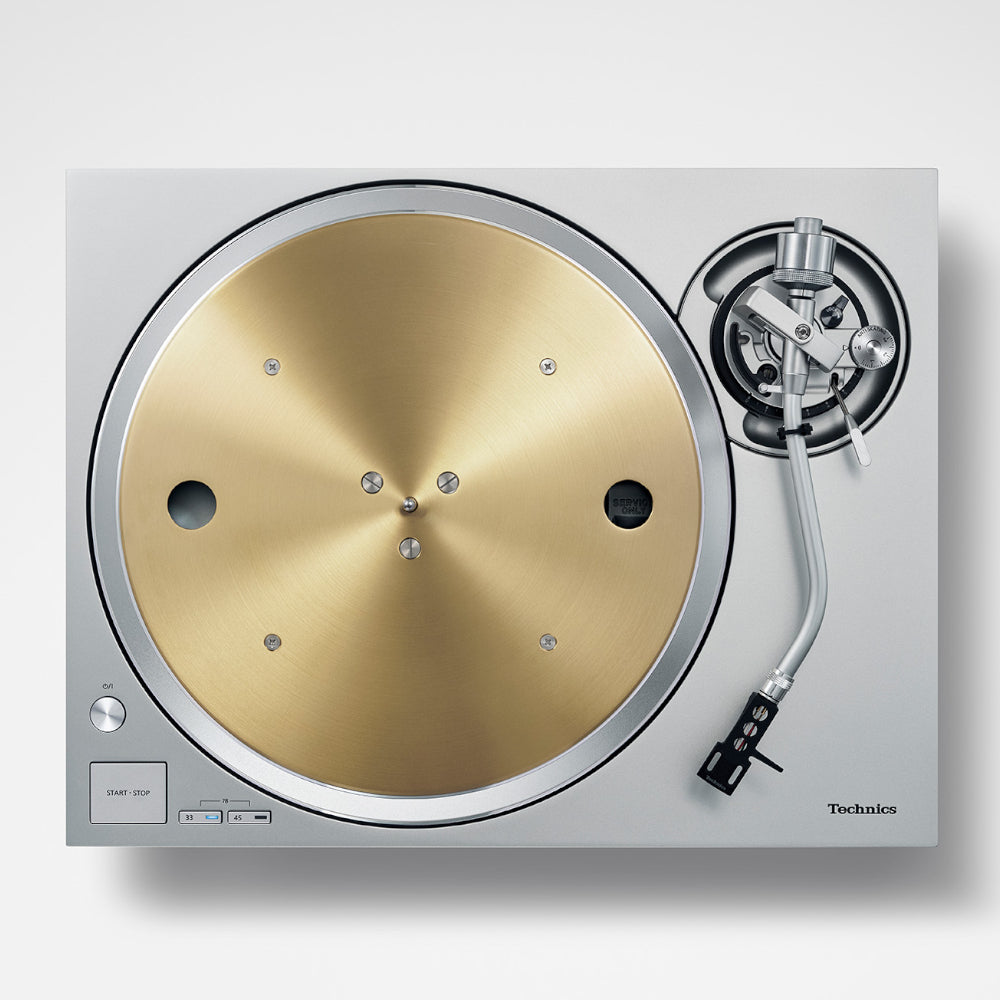

Three-layered Turntable Platter

The turntable has a three-layered construction with a rigidly combined brass and aluminium die-cast platter. With a deadening rubber covering its entire rear surface to eliminate unnecessary resonance, thereby achieving high rigidity and vibration damping. This delivers smooth rotational stability and inertial mass surpassing the SP-10MK2, the direct-drive turntable standard used by broadcast stations worldwide, as well as having more than twice the inertial mass of the SL-1200MK5.

Two-layered Cabinet Construction

The SL-1300G ensures high rigidity by using a body with a two-layered construction that solidly unifies the BMC and the aluminium die-cast chassis. Reinforcing ribs have been added between the motor/tone arm on the top panel. This improves rigidity and vibration damping characteristics.

High-level Balance Adjustment

When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. Therefore, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading “BALANCED” to indicate that adjustment has been done.

Low-Noise Switching Circuit

The use of a high-speed switching power supply ensures a stable supply capacity and less ripple and humming. Applying a switching power supply to a turntable eliminates the need for a large transformer and countermeasures for the ensuing mechanical vibrations. A switching frequency of above 100 kHz limits the impact of noise on the music playback bandwidth.

Current Injection Active Noise Cancelling

This technology combines a noise detection device with an error amplifier. It detects residual noise in the power supply and applies an inverse phase current to remove noise components. It removes low frequency noise more effectively than a regulator to ensure a more ideal power supply.

Eco-friendly Cushioning/Packaging Materials

The SL-1300G adopts eco-friendly packaging materials to help curtail marine plastics and other environmental problems. The cushioning has been changed from styrene foam to corrugated cardboard, reducing the amount of plastic used by around 70% compared to existing product packaging. We have also taken steps to improve convenience by combining accessories into one box while maintaining the strength of the cushioning to protect against the product’s heavy weight.
