Frequency Response / Acoustic Data: +/-3dB 22Hz to 250Hz

In-Room Low Frequency: -19Hz

Single Subwoofer Max Output @ 32Hz 1/8 space 1m = 107.6dB

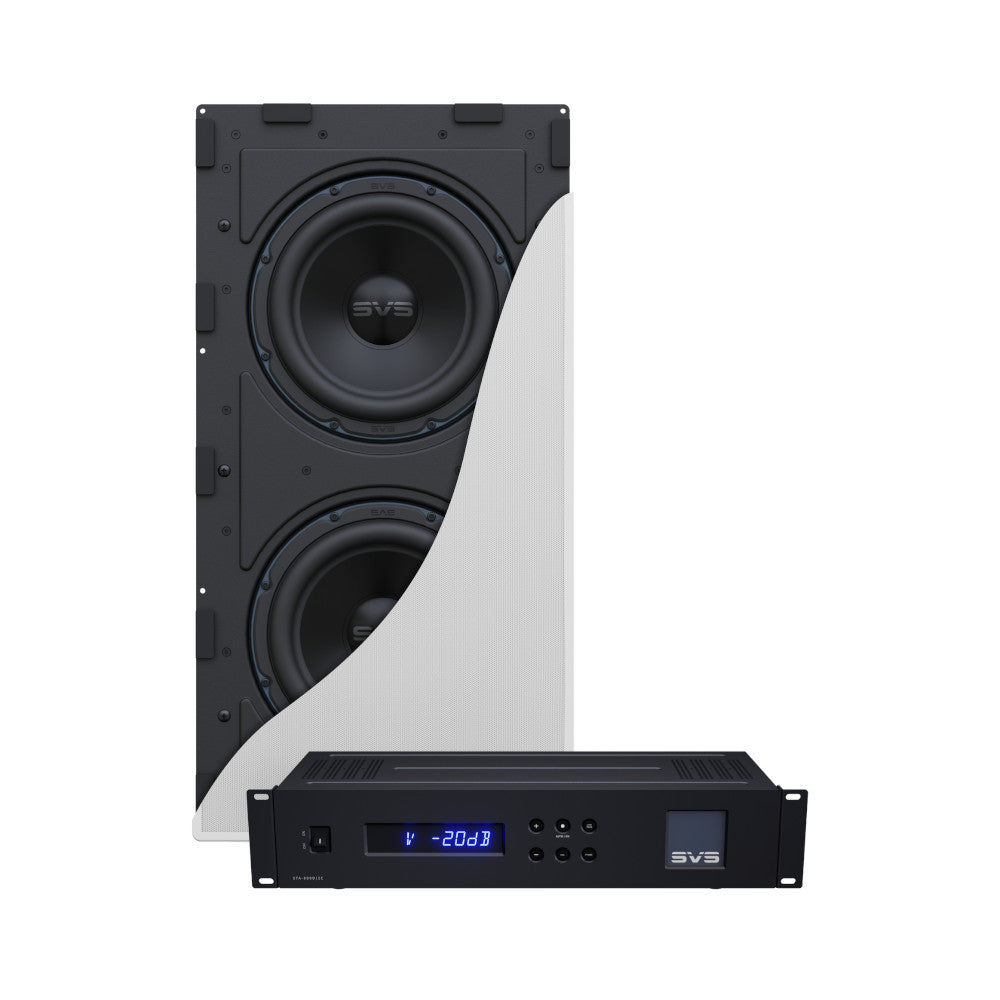

Subwoofer Specs:

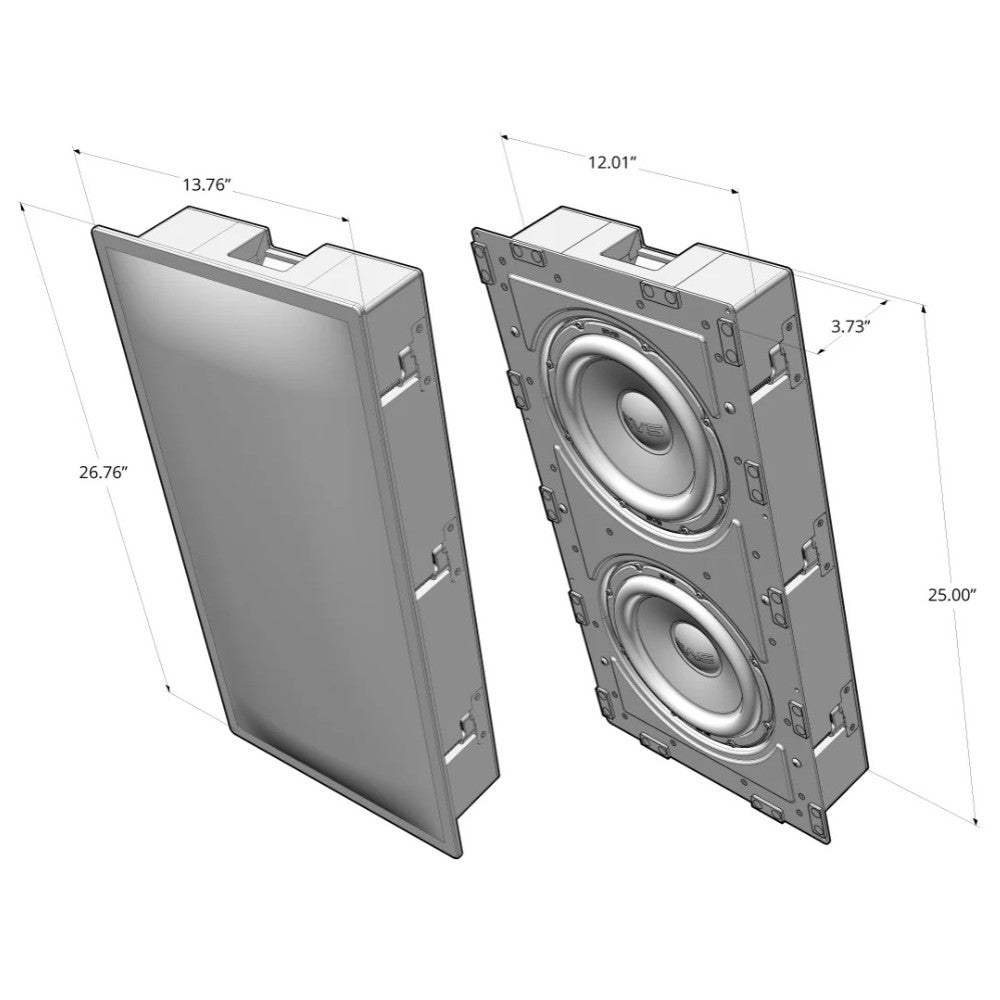

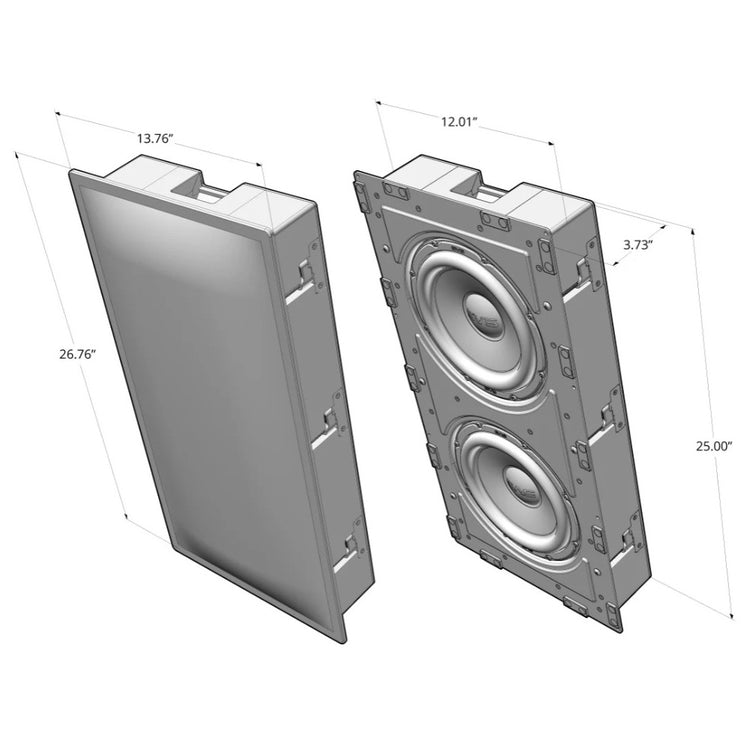

Subwoofer Exterior (with Grill) – 26.76” (679.6mm) H X 13.76” (349.6mm) W X 1.34” (34mm) D

Subwoofer Exterior (without Grill) – 26.57” (674.9mm) H X 13.58” (344.9mm) W X 0.35” 8.8mm) D

Subwoofer In-wall Cabinet Only dimensions – 25” (635mm) H X 12” (305mm) W X 3.74” (95mm) D

Subwoofer Weight (with grill): 25.5lbs (11.6kg)

Subwoofer Weight (without grill): 23lbs (10.4kg)

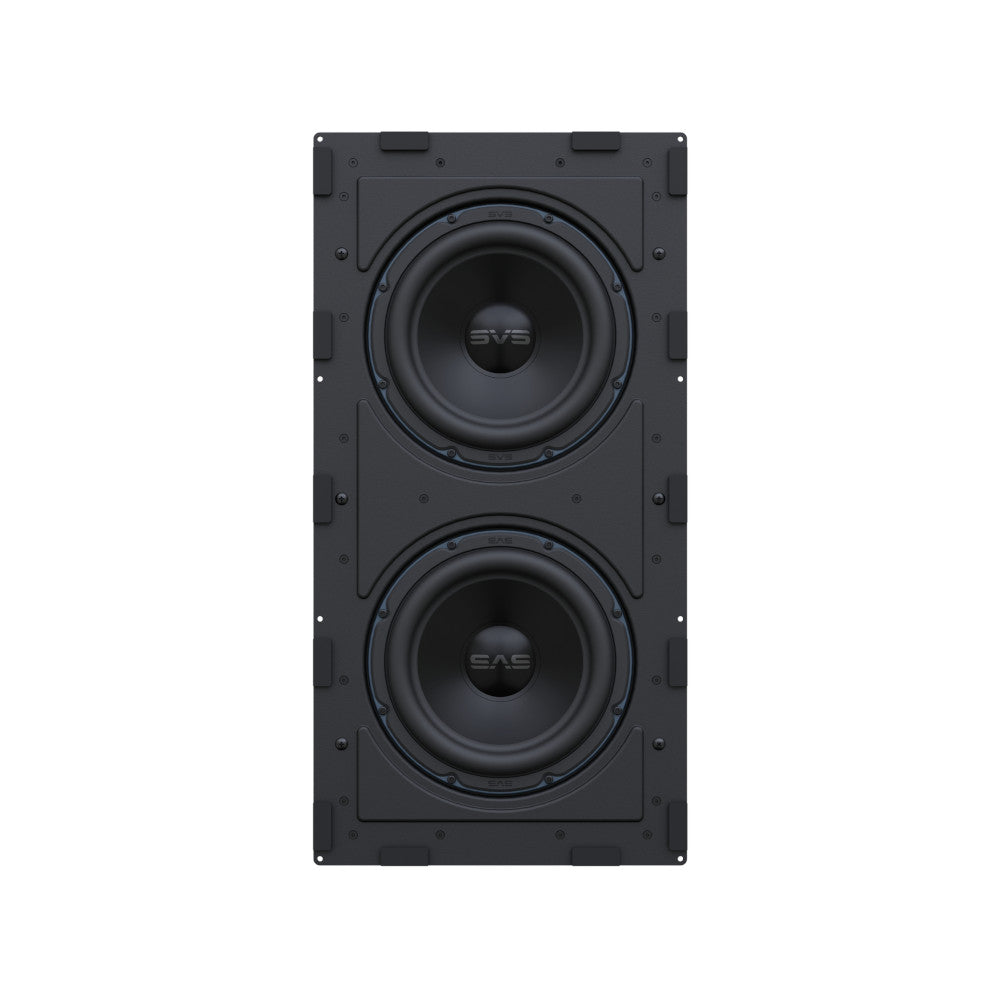

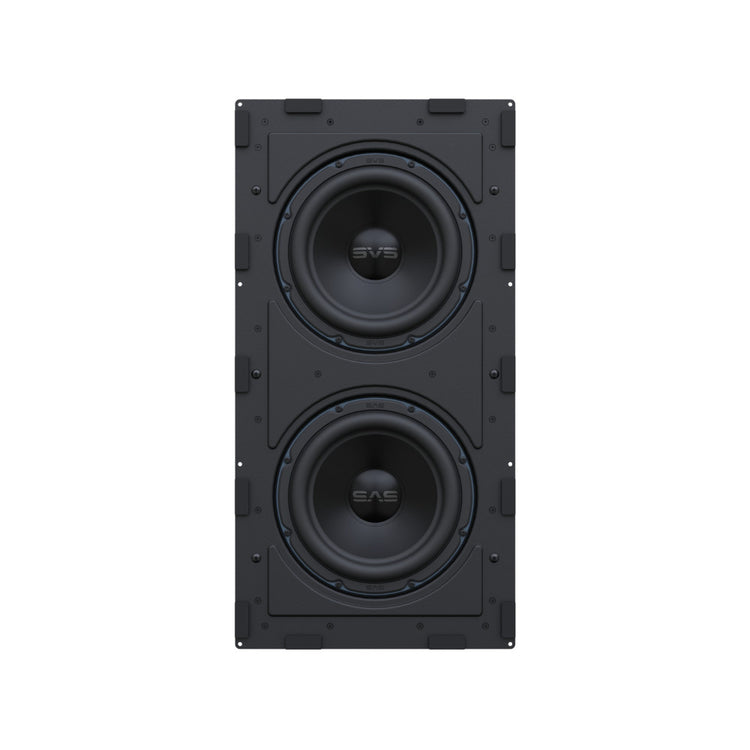

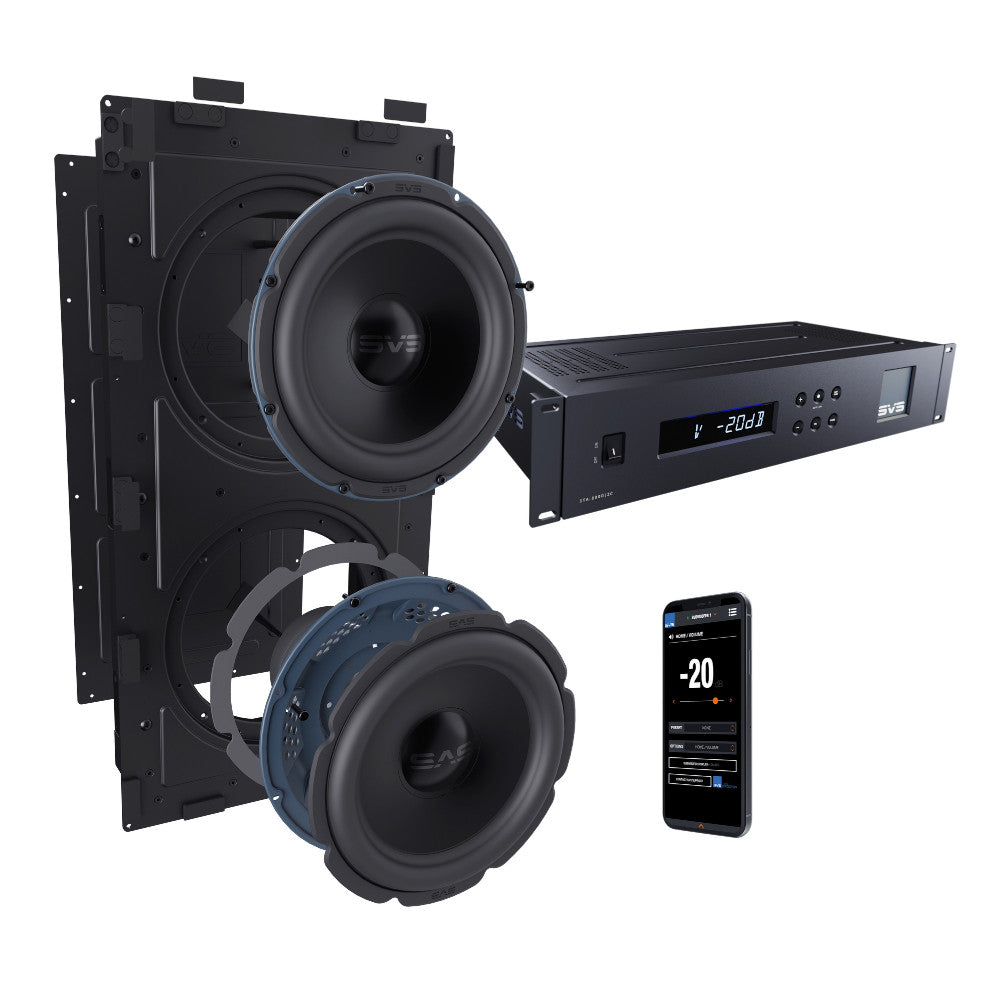

Dual 9-inch active high-excursion drivers electrically in parallel for massive output from a sonically inert sealed enclosure.

Ultra-Rigid Aluminium and MDF cabinet design with fully braced 2.5mm thick aircraft grade aluminium front and rear baffles sandwich a fully braced 0.75” (18mm) MDF frame for an inert and resonance free enclosure, maximized internal acoustic volume, rigorously tested, and optimized for maximum strength, minimum cabinet coloration, and maximum acoustic output into the room.

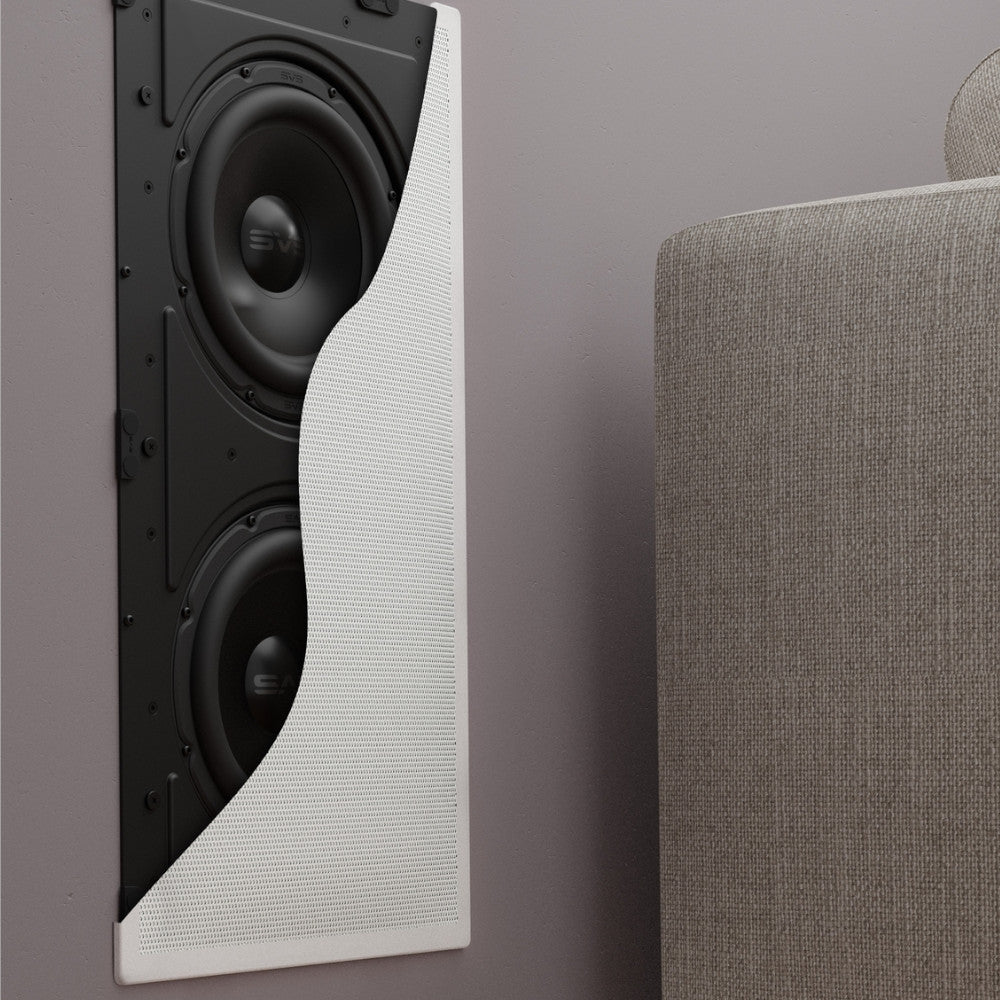

Paintable magnetically attached removeable grille

Single Subwoofer System Packaged Dimensions

Dimensions: 36.22” (920mm) L x 20.20” (513mm) W x 9.57” (243mm) D

Weight: 45lbs (20.4kg)

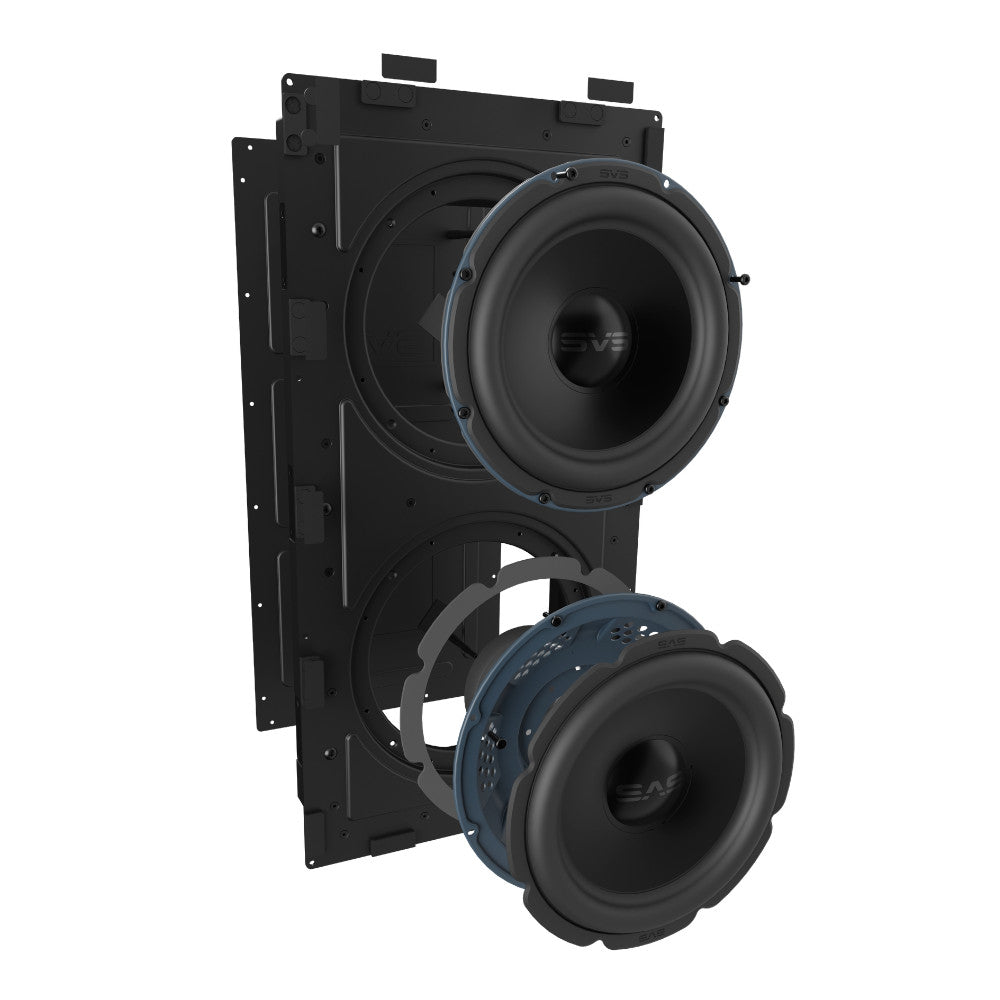

Driver Specs:

All new 9-inch high-excursion drivers custom designed for shallow depth and maximum linear output

Lightweight and rigid aluminium vented cone with aluminium dustcap generates massive output with pinpoint accurate frequency response.

Proprietary injection-moulded Long-throw surround with FEA optimized design ensures longevity and extreme excursion for room-energizing bass.

Precisely tuned overhung motor configuration for unerring woofer control at all drive levels

Total Excursion (each driver): 23.4mm Xmax, 29mm Xmech

High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion

Formidable proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transients

1100 Aluminium custom low-profile cone dustcap provides excellent stiffness, lightweight moving mass, and optimized thermal conduction

Oversized motor system generates massive magnetics to drive room-filling sound pressure levels with pinpoint transient speed

Precision machining for motor and narrow tolerance suspension parts maintain control and linearity at full excursion

6061 Aluminium shorting ring improves linearity of magnetics and reduces distortion and gap inductance

High temperature 3003-H18 aluminium former/bobbing

5-inch composite cotton-poly extreme excursion linear spider

Dual 24-strand plated copper leads

High-performance oversized Y30 Ferrite magnet motor

Top plate uses low carbon 1006 steel for optimal magnetics

Oversized cold-forged low carbon ML08AL steel T-yoke for maximum cooling and magnetics

Custom 9-inch driver baskets with FEA optimized powder-coated frames for maximum rigidity, thermal conductivity, and mechanical damping

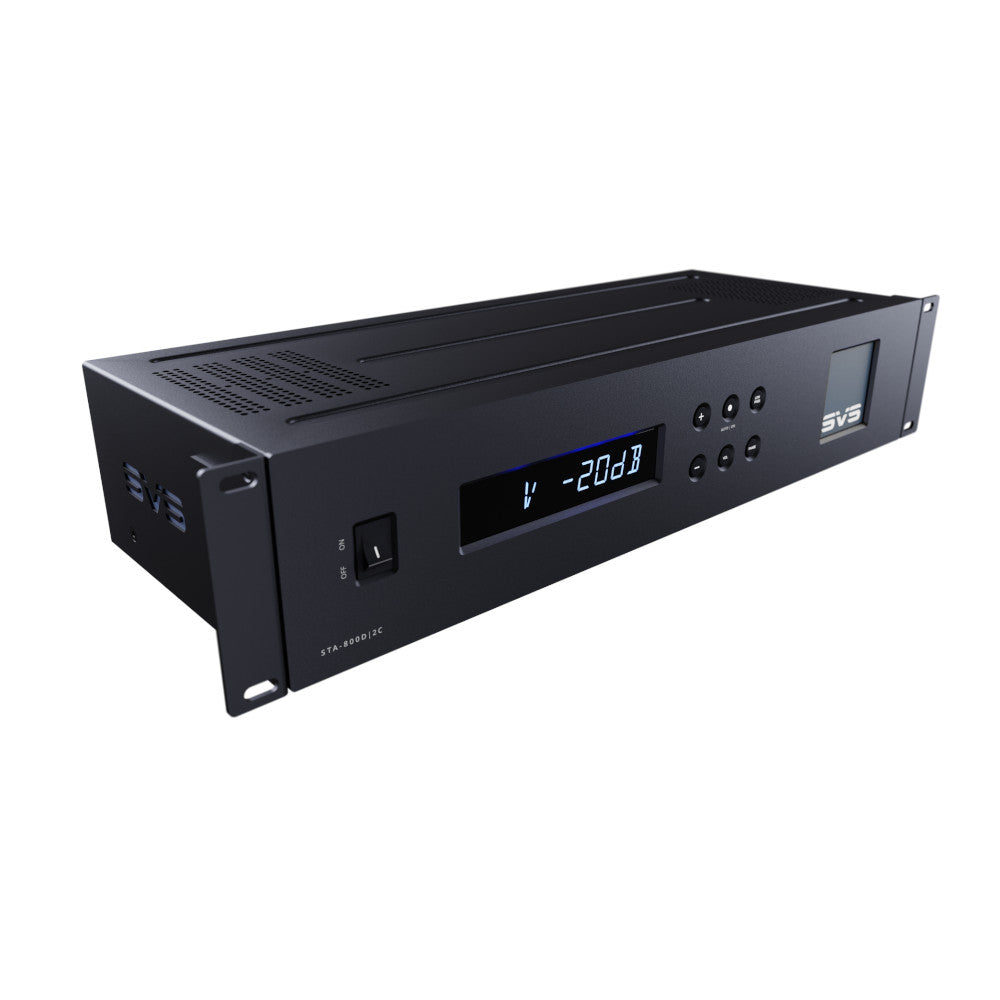

Amplifier Specs:

Sledge STA-800D2 with 800 watts RMS continuous power (2500+ watts peak dynamic power)

High-efficiency Class-D switching topology with massive 25-amp 600-volt MOSFETs results in ample current, vanishing distortion and excellent linearity to generate massive low-frequency output with pinpoint accuracy

High-resolution 50MHz Analog Devices Audio DSP with double precision 56-bit filtering industry best processing power for advanced control and pristine output

User adjustable settings for system performance optimization: low pass filter, phase, polarity, room gain, and three parametric equalizers

Ground-breaking SVS subwoofer DSP and Bluetooth BLE smartphone control app for iOS, Android and Amazon devices allow custom tuning and user presets for every room and system

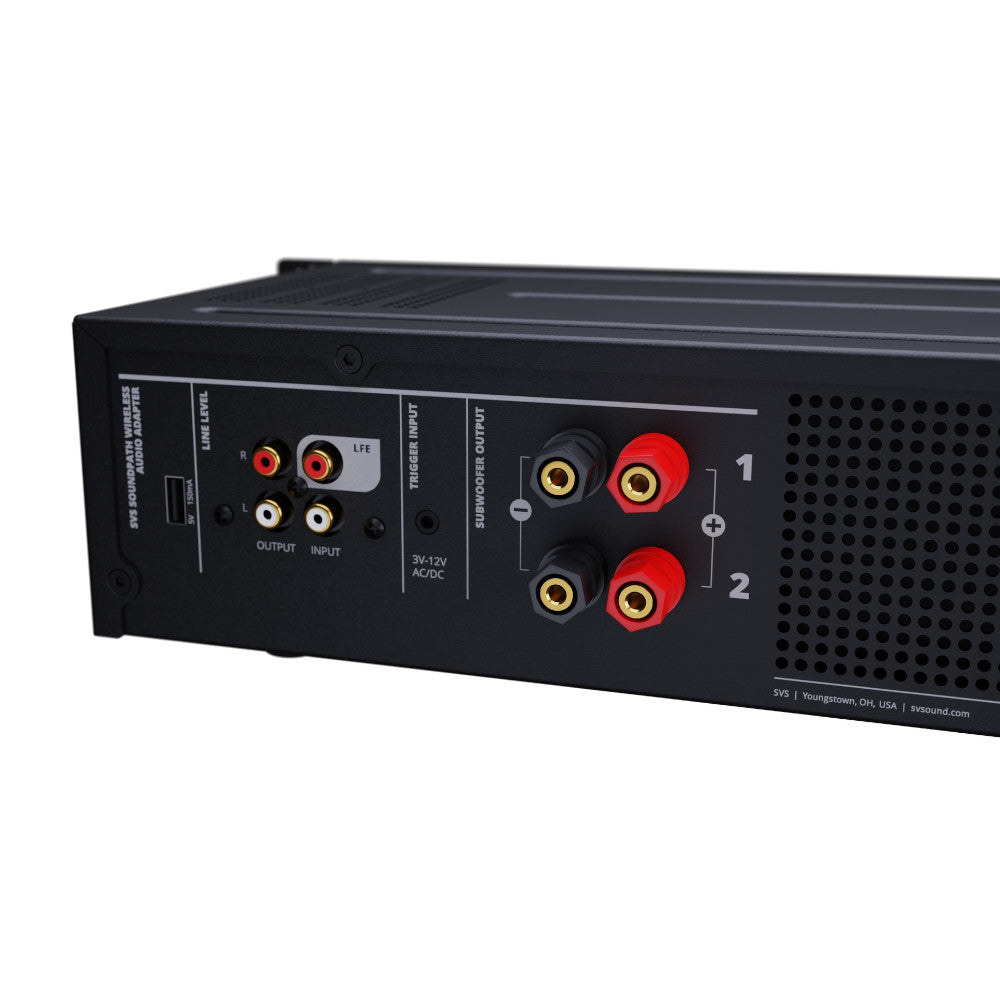

Stereo RCA input and output with ultra-wide input voltage for consumer and professional audio applications

Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input

Front panel upgraded Intelligent Control Interface (ICI) user interface with 8-character blue-LED for rich display and easy push-button controls
