The ViewMaster Pro size range has been increased to offer even greater versatility in a cost-efficient screen.
With IR, Contact Closure and 12V trigger as standard, the ViewMaster Pro offers many of the control options needed in the audio-visual environment.
The ViewMaster Pro offers multi-position brackets, both wall and ceiling, for simple installation, and is available with an optional in-ceiling screen box for all sizes.
Benefits include:
-Universal bracket system
-Quiet motor system, C tick approved
-Premium slat rod design
-Integrated IR, contact closure control and 12V trigger
-Fire-rated surface
-Low VOC, water-based, black border paint
Headbox:
-White as standard
-Black or silver at no extra charge
-Custom colours available on request (extra charges apply)
Surface: Unity white black backed fibreglass(Gain 1.1)
Roller Diameter:
-63mm for sizes up to and including 110"
-80mm for sizes 120"and above
Borders: 50mm side and bottom borders
Leader:
-300mm standard top leader
-Additional leader available up to 600mm for sizes 120"and above (additional charges apply)
-Additional leader available up to 500mm for sizes up to and including 110" (additional charges apply)
Brackets:
-Multi-position brackets for wall or ceiling installation
-Two brackets per screen for sizes up to and including 110"
-Three brackets per screen for sizes 120"and above
Power Required: Standard 10A GPO (Maximum draw 1.5A)
Control: 12V trigger input, contact closure, IR remote
Optional In-ceiling Box:
-ViewMaster Type 1 box for sizes up to and including 110"
-ViewMaster Type 2 box for sizes 120"and above
Warranty: 3 years (see T&C for more details)
MODAL | SIZE | FORMAT | IMAGE HEIGHT | IMAGE WIDTH | WEIGHT | HEADBOX SIZE | SLAT ROD (mm x kg) |
4510029-1 | 100" | 16:9 | 1245 | 2214 | 19 | 2495 | 2335 |
4511029-1 | 110" | 16:9 | 1370 | 2435 | 21 | 2715 | 2555 |
4512029-2 | 120" | 16:9 | 1495 | 2655 | 33 | 2935 | 2775 |
4513029-2 | 130" | 16:9 | 1615 | 2880 | 37 | 3160 | 3000 |
4514029-2 | 140" | 16:9 | 1740 | 3100 | 39 | 3380 | 3220 |

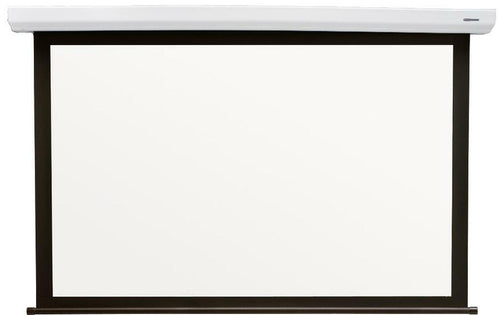

Screen Technics Viewmaster Pro 16:9 Motorised Screen
- Regular price
- $1,510.00
- Sale price
- $1,510.00
- Regular price
-
The Screen Technics ViewMaster Pro is a motorised screen that offers multi-position brackets, both wall and ceiling, for simple installation, and is available with an optional in-ceiling screen box for all sizes.
