Key Features
- 6 x 50 Watts of robust power
- Class AB amplifier design
- Automatic signal sensing
- 12 volt trigger input
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

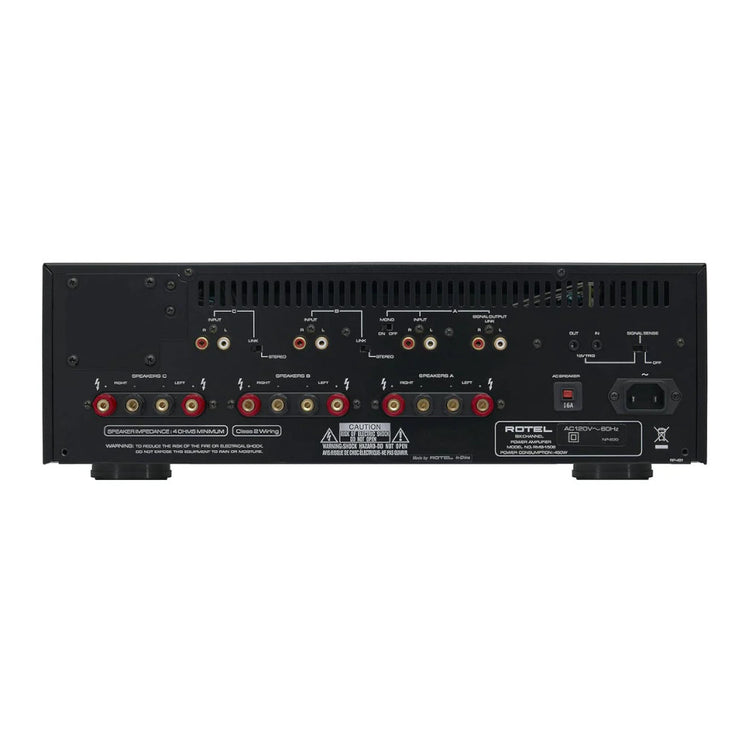

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.

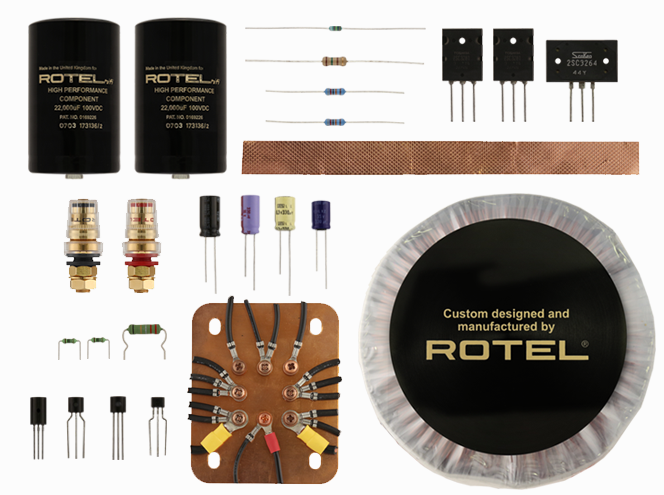

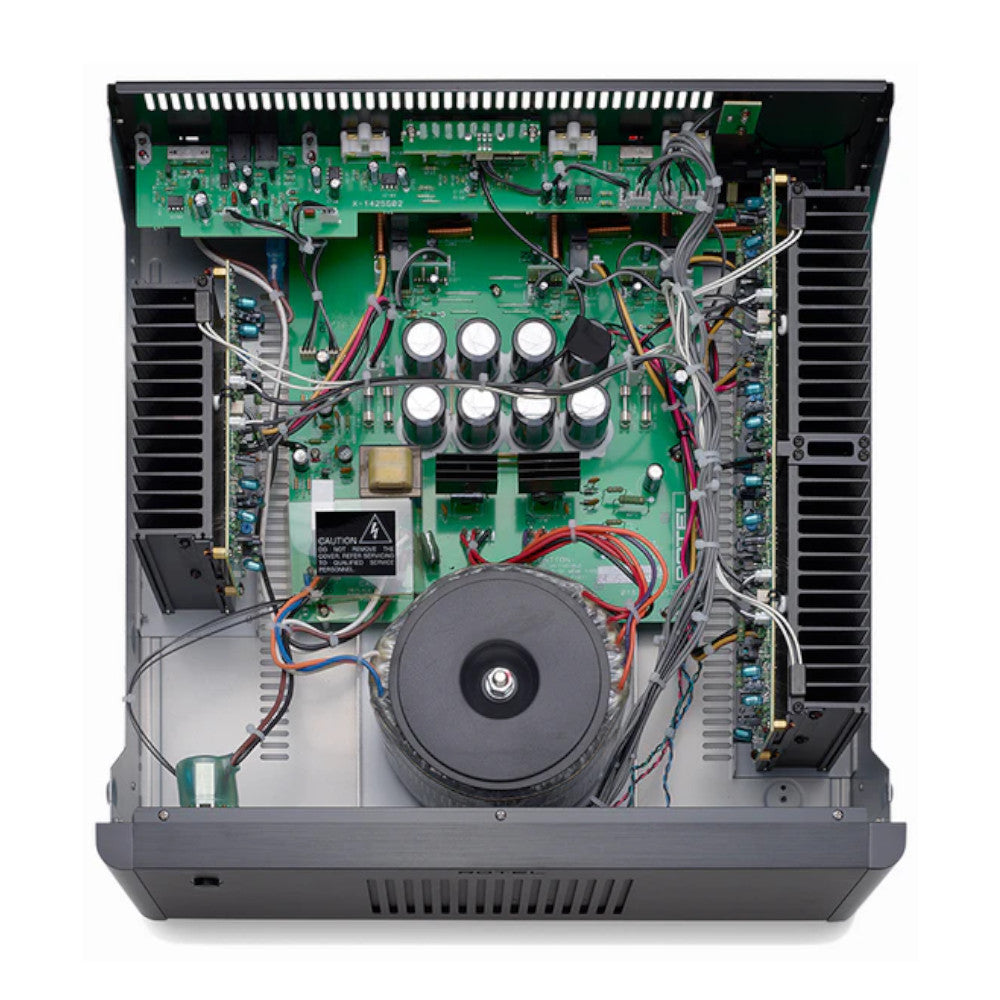

An oversized factory built toroidal transformer and high efficiency capacitors in the Rotel RMB-1506 drive an array of high current output transistors ensuring fast transient timing, accurate detail and controlled consistency of low frequency regardless of the loudspeakers load rating or cable run distance. Maintaining crucial timing and energy while delivering effortless power is a signature trait of this amplifier providing increased speaker placement options.
Critical evaluation of the circuit design and meticulous selection of each acoustic audio components ensures accuracy, power and efficiency all coupled with an unsurpassed build quality ensuring this amplifier proudly wears the Rotel name.
Amplifier Class | D |
Continuous Power Output | 12 x 100 W/Ch (All Channels Driven, 8Ω) |
Total Harmonic Distortion (THD) | 20 Hz – 20 kHz <0.03% |
Frequency Response | 10 Hz - 40 kHz ±1 dB |
S/N Ratio (IHF "A" Weighted) | 105 dB |
Gain | 27.2 dB |
Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
Damping Factor | 200 |
Speaker Impedance | 4Ω Minimum |
Input Sensitivity | 1.25 V |
Input Impedance | 8.3 kΩ |
Dimensions (W x H x D) | 431 x 144 x 449 mm (17" x 5.7" x 17.8") |
Front Panel Height | 3U / 132.6 mm (5.25") |
Power Requirements | 230 V, 50 Hz |
Power Consumption | 660 W |
Standby Power Consumption | 10.8 W |
Net Weight | 10.9 kg (24 lb) |
BTU Rating (4Ω, 1/8th Power) | 737 BTU/h |
Rotel RMB-1506 Distribution Power Amplifier (6 Channel)
- Regular price
- $1,619.00
- Sale price
- $1,619.00
- Regular price
-
$1,799.00

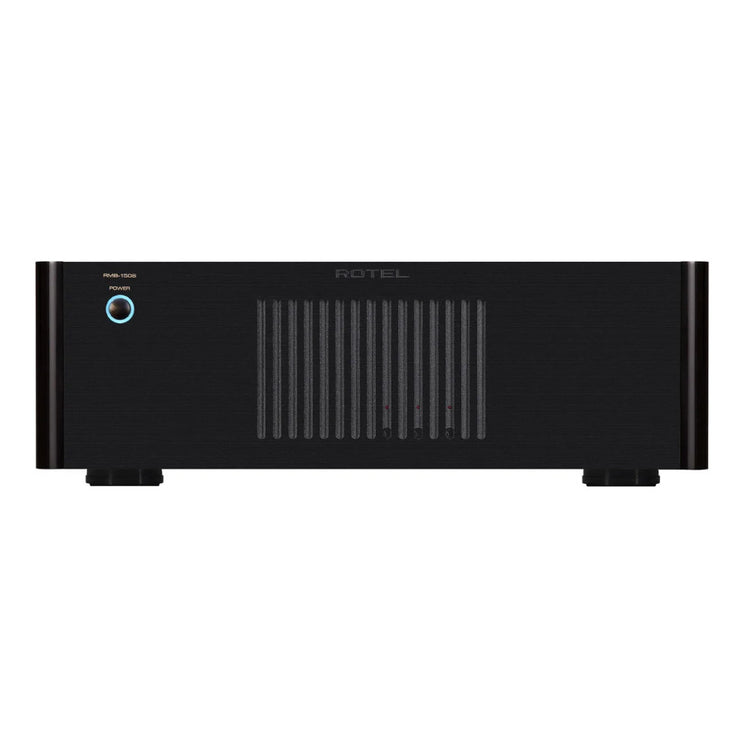

Featuring 6 x 50 watts per channel, the Rotel RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.
