- Description
- Specifications
Key Features:
- 2 x 120 Watts of robust Class AB power, 8 Ohms
- Wireless aptX™ Bluetooth
- Digital Optical, Digital Coaxial and PC USB Inputs
- MM Phono Input, XLR & RCA Line Level Inputs, Preamp Out & Two Sub Outs
- Supports MQA
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Dedicated RCA pre-output
- Dual A-B selectable speaker outputs
- Certified Roon Tested
The Rotel RA-1572 MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

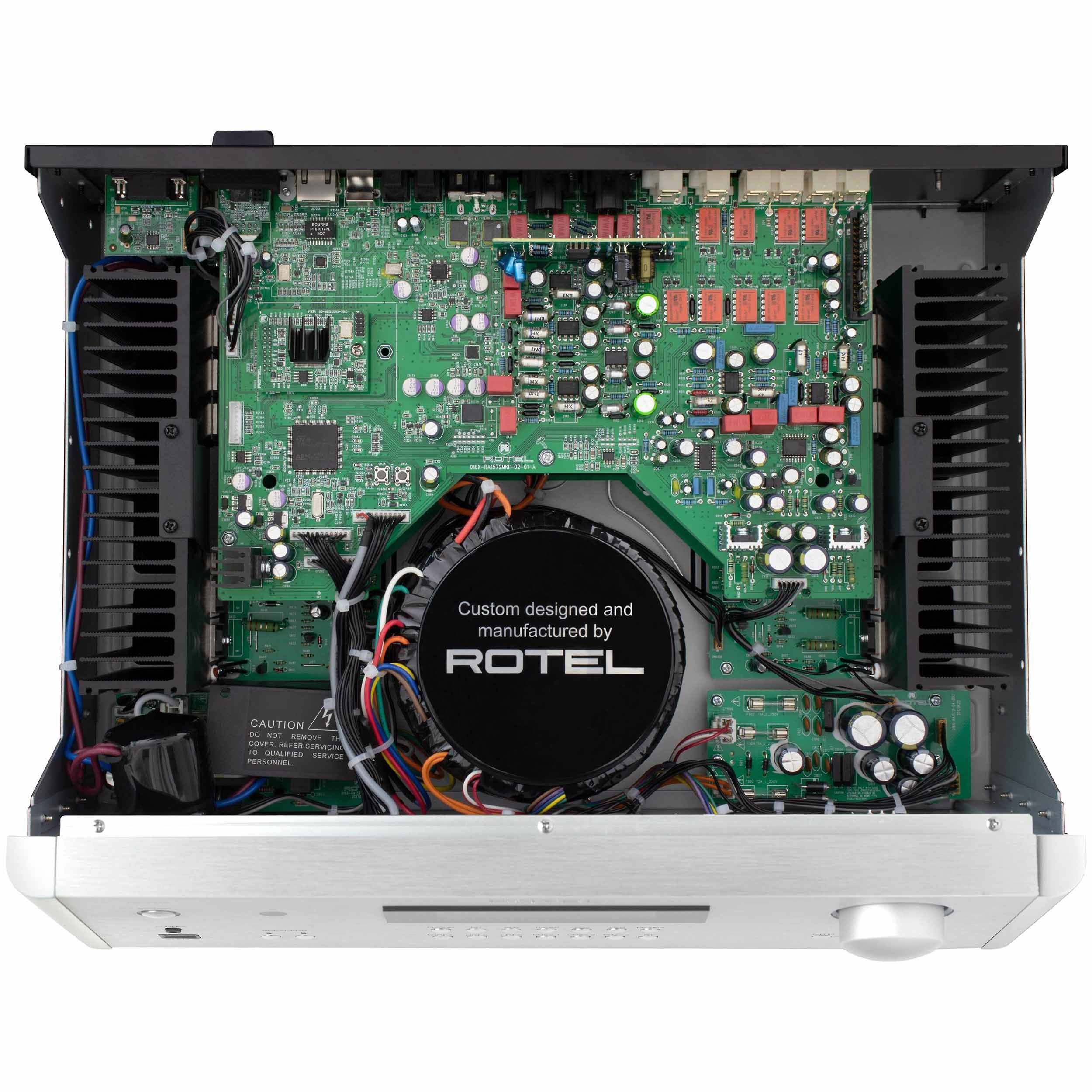

As typical of Rotel amplifiers, the RA-1572MKII utilizes an in-house manufactured oversized toroidal transformer. The toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.
The Rotel RA-1572MKII support digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favourite sources.
The RA-1572 MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

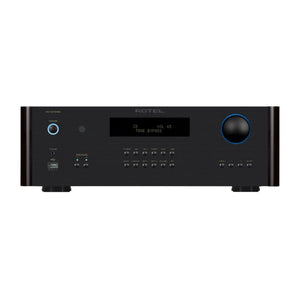

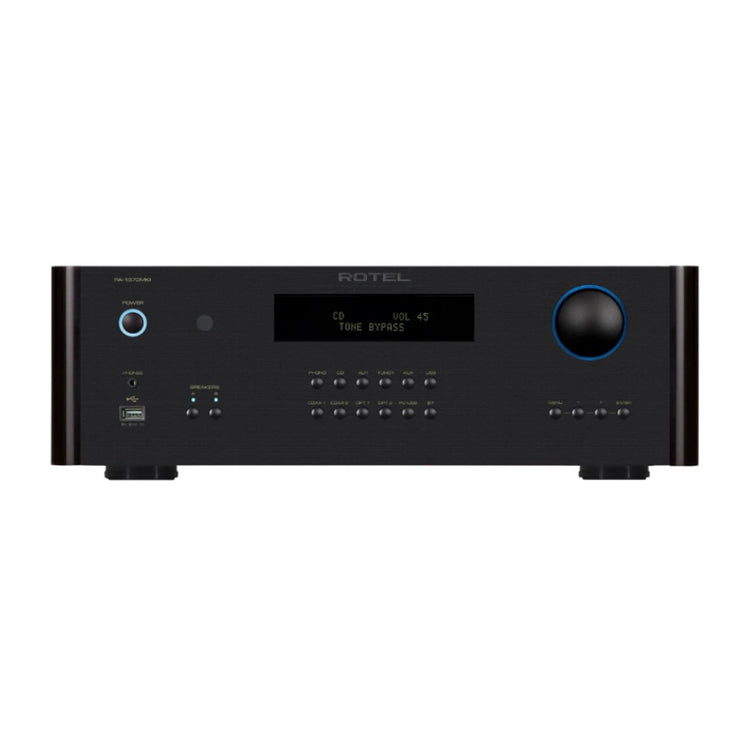

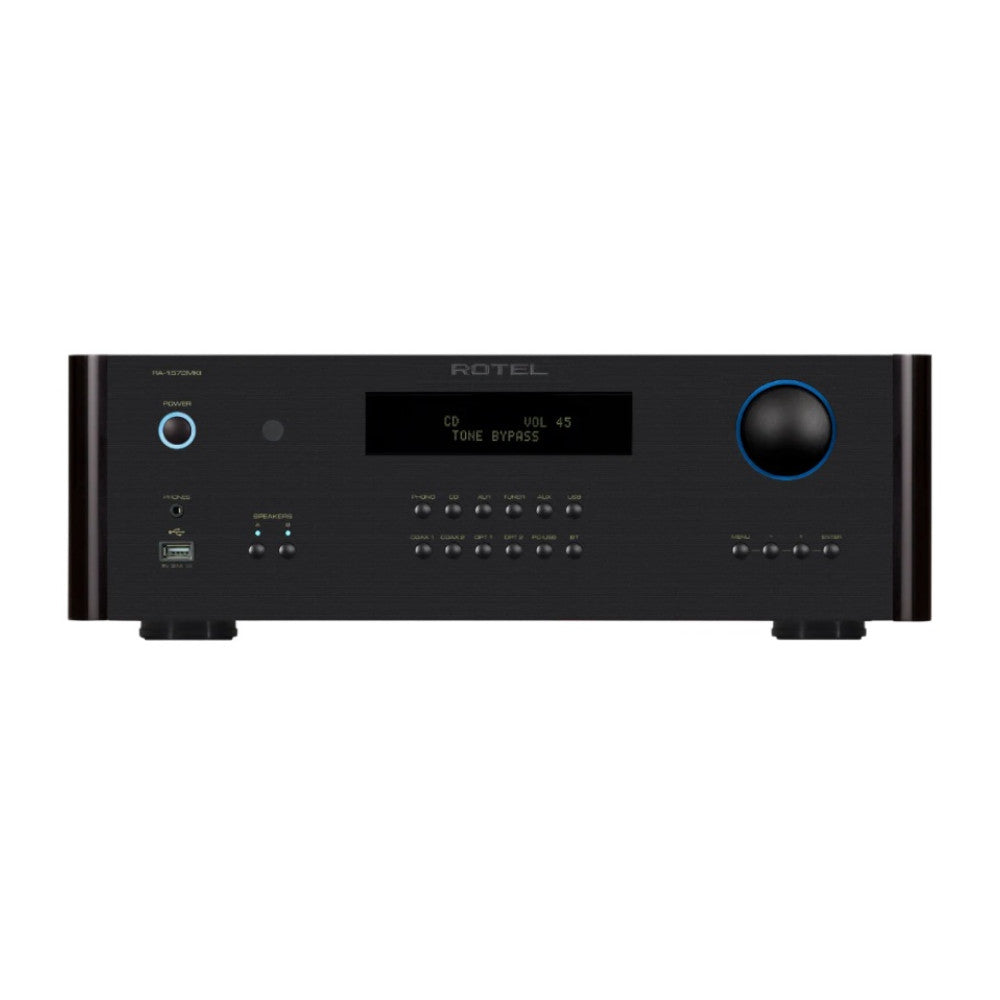

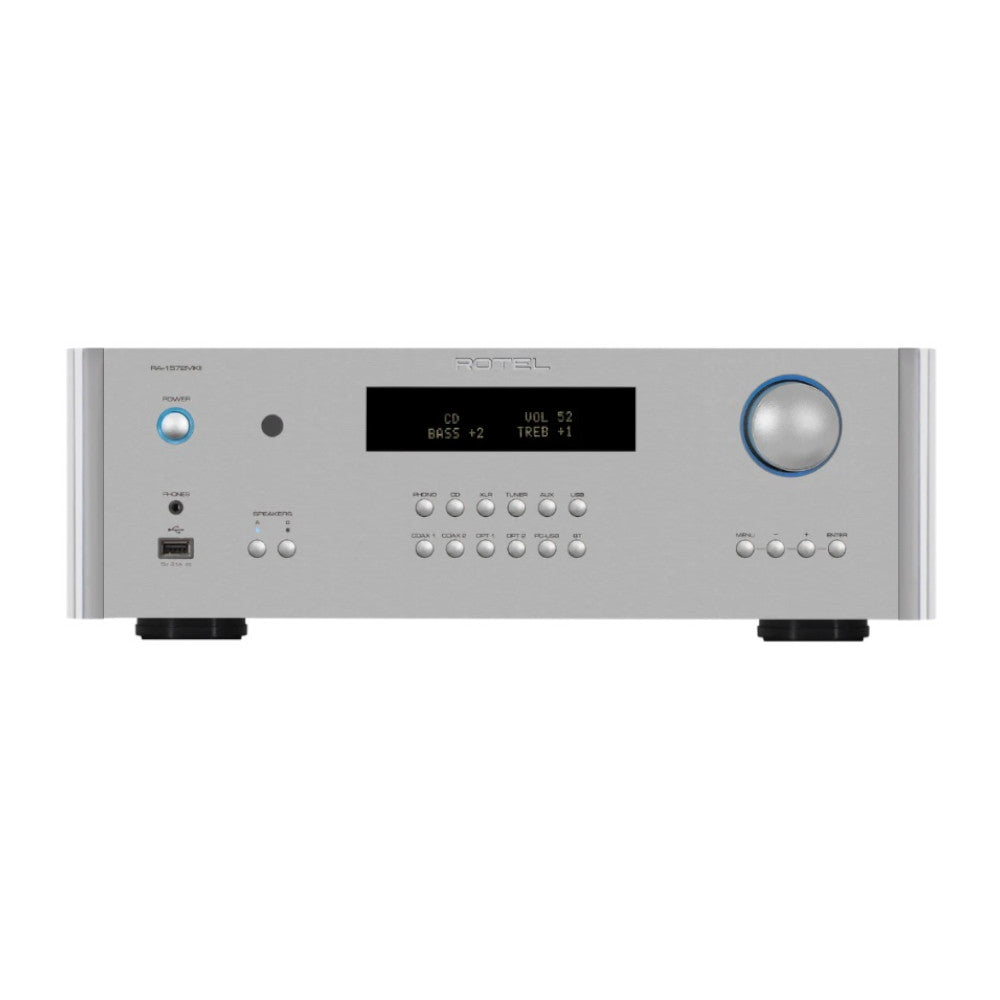

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.
Continuous Power Output: | (20Hz - 20kHz, < 0.03%, 8 ohms): 120 watts/channel |
Total Harmonic Distortion: | < 0.018% |
Intermodulation Distortion: | (60Hz : 7kHz, 4:1): < 0.03% |
Frequency Response | |
Phono Input: | 20Hz - 20kHz, ±0.5 dB |
Line Level Inputs: | 10Hz - 100kHz, ±0.5 dB |
Damping Factor: | (20Hz - 20kHz, 8 ohms): 300 |
Input Sensitivity / Impedance | |
Phono Input: | (MM): 2.1mV / 47k ohms |
Line Level Inputs RCA: | 270mV / 100k ohms |
Line Level Inputs XLR: | 440mV / 100k ohms |
Input Overload | |
Phono Input (MM): | 32mV |
Line level Inputs (RCA): | 4V |
Line Level Inputs (XLR): | 5.5V |
Preamplifier Output / Impedance: | 1.5V / 470 ohms |
Signal to Noise Ratio (IHF "A" weighted) | |
Phono Input (MM): | 80dB |
Line Level Inputs: | 100dB |
Digital section | |
Frequency response: | 10Hz - 95kHz (±2.0 dB, Max) |
Signal to Noise Ratio (IHF "A" weighted): | 100dB |
Input Sensitivity / Impedance: | 0 dBFs / 75 ohms |
Preamplifier Output Level: | 1.42V (at -20 dB) |
Coaxial / Optical Digital Signals: | SPDIF LPCM (up to 192kHz 24bit) |
PC-USB: | USB Audio Class 1.0 (up to 96kHz 24bit) USB Audio Class 2.0 (up to 384kHz 32bit) - Driver installation required DSD and DoP support MQA and MQA Studio (up to 384k Hz 24bit) |
Power Requirements: | |
USA: | 120 volts, 60Hz |
EC: | 230 volts, 50Hz |
Power Consumption: | 400 watts |
Standby Power Consumption: | < 0.5 watts |
BTU: | (4 ohms, 1/8th power): 810 BTU/h |
Dimensions (WxHxD): | 431 x 144 x 358mm |
Front Panel Height: | 3U (132.6mm) |
Weight (net): | 13.63kg |
Rotel RA-1572 MKII Integrated Amplifier
- Regular price
- $2,879.00
- Sale price
- $2,879.00
- Regular price
-
$3,199.00
The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptX and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.
