The Rotel RA-6000 Diamond Series features PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favourite sources rendering the audio with unprecedented detail and immersive sound stage.
Key Features:
- Certified Roon Tested
- Supports MQA and MQA Studio
- Smooth tray loading CD mechanism
- Fully balanced differential XLR outputs and RCA outputs
- ESS premium 32-bit 8-Channel Digital to Analogue Converter
An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

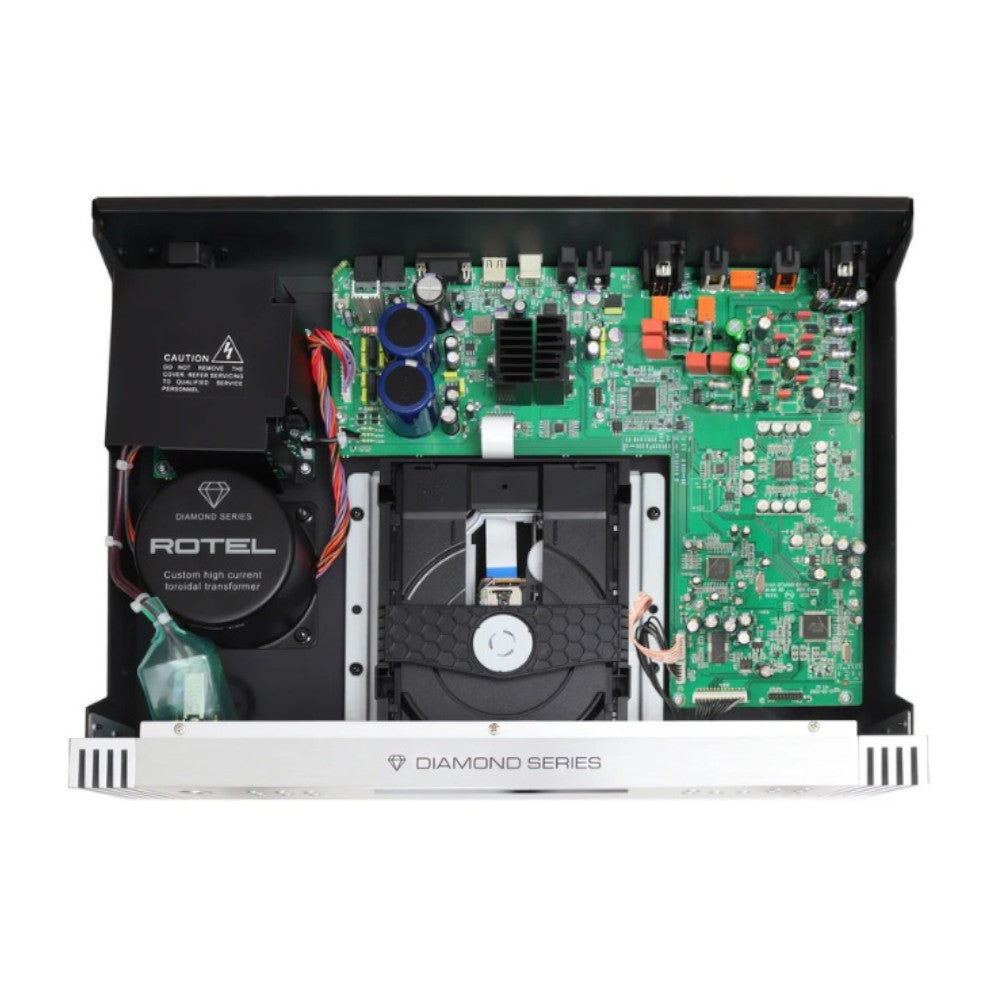

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.
The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.
The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.
Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

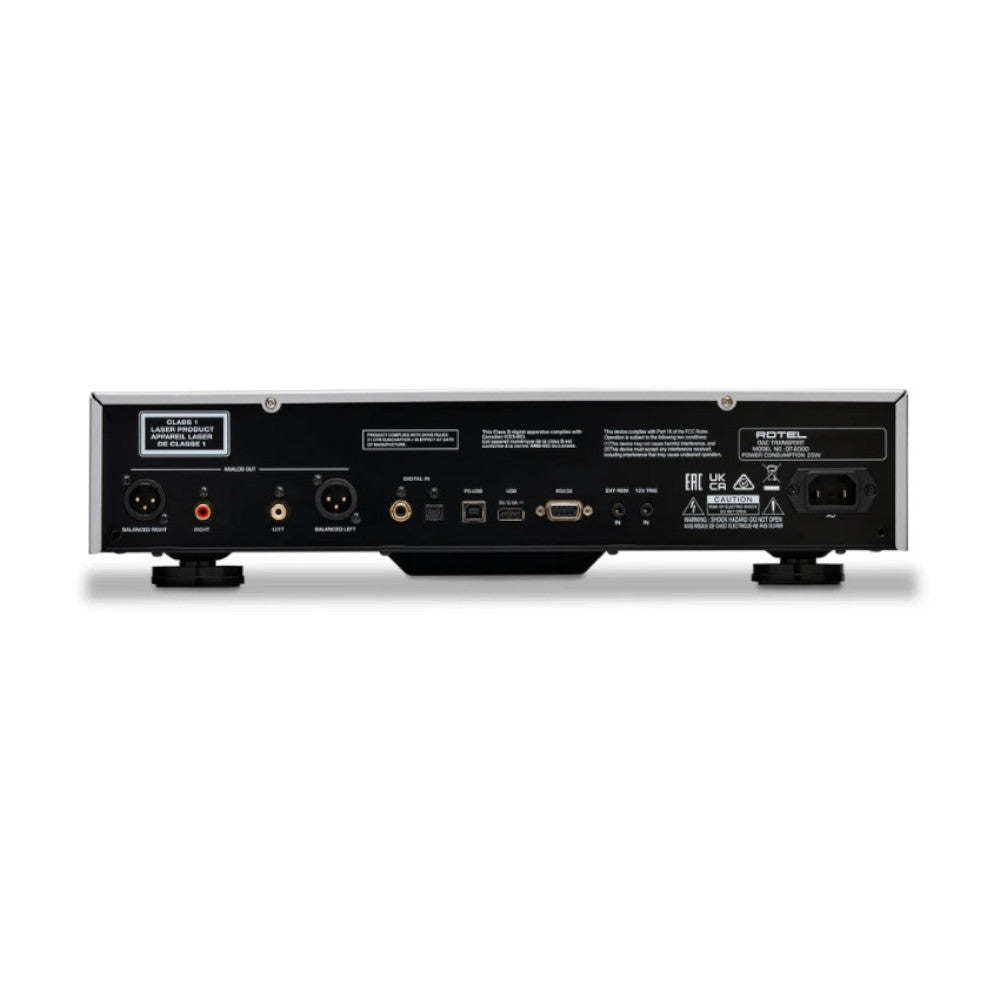

RS232, 12V trigger and external remote input ensure integration with control systems.

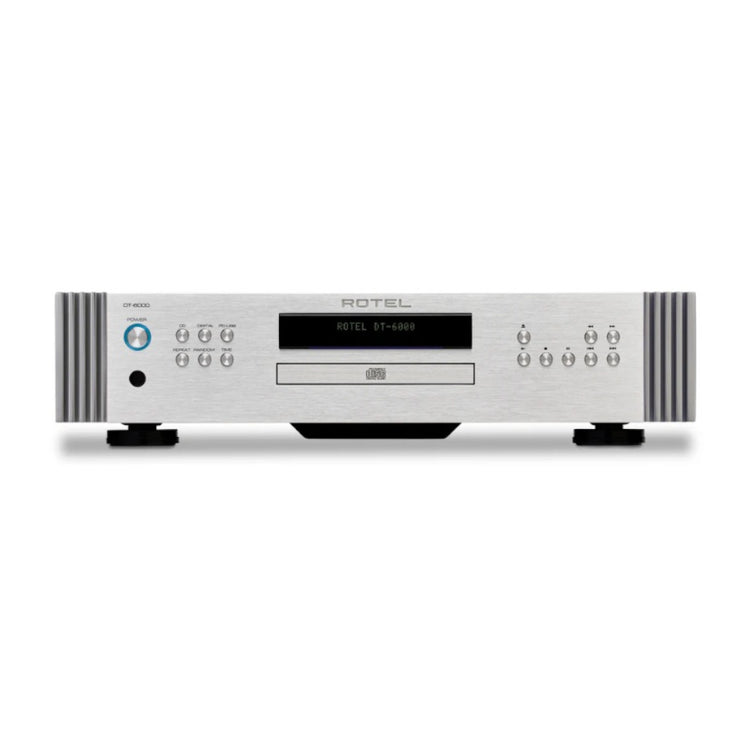

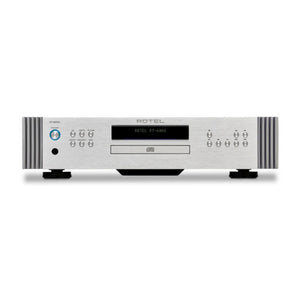

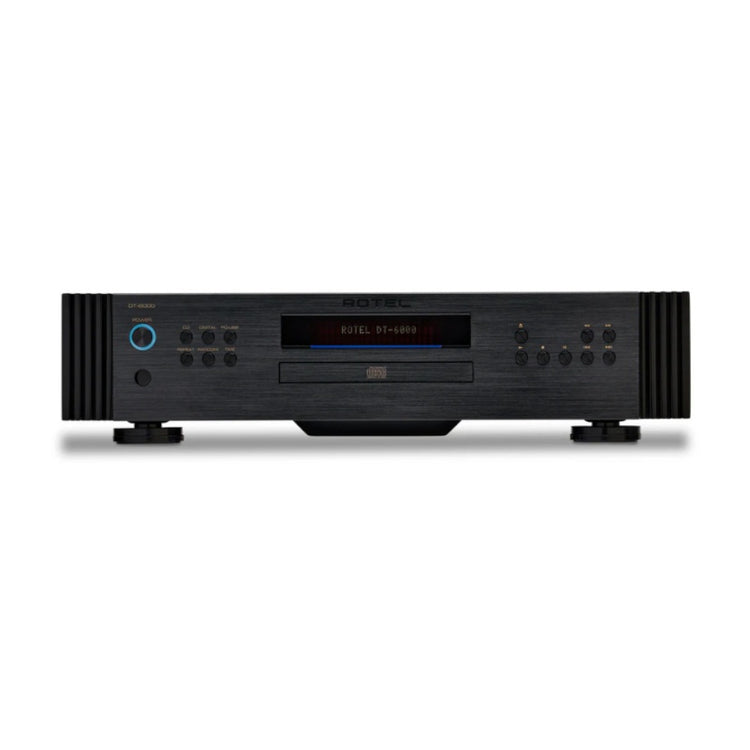

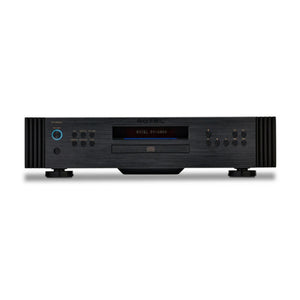

The DT-6000 is available in silver and black colours.
| Total Harmonic Distortion (THD) | Optical/Coaxical Input: <0.0007%, CD/PC-USB Input: <0.0012% |
| Frequency Response | 20 Hz - 20 kHz: +0/-0.15 dB, 10 Hz - 70 kHz: +0/-3 dB |
| S/N Ratio (IHF "A" Weighted) | >115 dB |
| Dynamic Range | >99 dB |
| Digital to Analogue Converters | ESS 32-Bit/768 kHz DAC |
| Channel Balance | ±0.5 dB |
| Channel Separation | >115 dB @ 10 kHz |
| Intermodulation Distortion | 0.0012% |
| Analogue Output Level | Unbalanced (RCA): 2.1 V, Balanced (XLR): 4.3 V |
| Analogue Output Impedance | Unbalanced (RCA): 10 Ω, Balanced (XLR): 20 Ω |
| Input Sensitivity | 0 dBfs / 75 Ω |
| Coax/Optical Digital Input Signals | LPCM (Up to 24-bit/192 kHz) |
| PC-USB | USB Audio Class 2.0: Up to 32-bit/384 kHz (Driver Installation Required), Support Native DSD (up to 11.2M) and DoP, Supoort MQA and MQA Studio (up to 24-bit/384 kHz), Roon Tested |
| Dimensions & Weight | |
| Dimensions (W x H x D) | 431 x 104 x 320 mm (17" × 4" × 12.6") |
| Front Panel Height | 2U / 88.1 mm (3.5") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 25 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 8.11 kg (17.88 lb) |
Rotel
by
Rotel
Rotel DT-6000 Diamond Series CD Player DAC Transport
- Regular price
- $1,749.00
- Sale price
- $1,749.00
- Regular price
-
$3,499.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The Rotel Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
