Key Features
- 2 × 40 Watts of robust power
- Class AB amplifier design
- High current power supply
- Moving magnet phono input for turntable connection
- Bass & Treble Controls
- A & B Speaker Connections

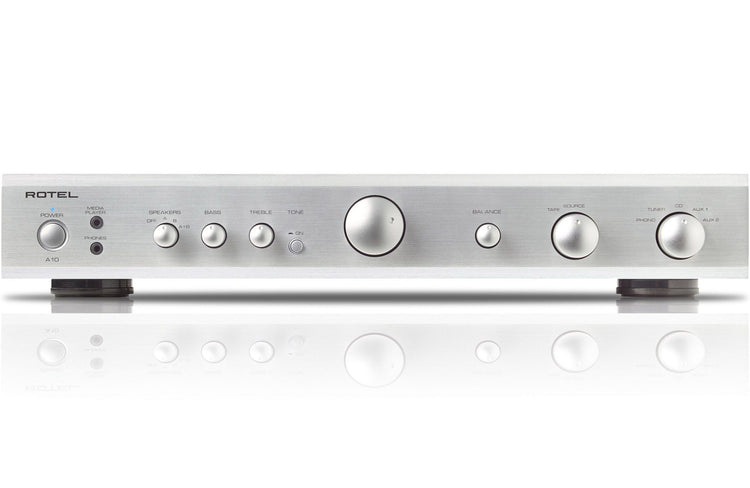

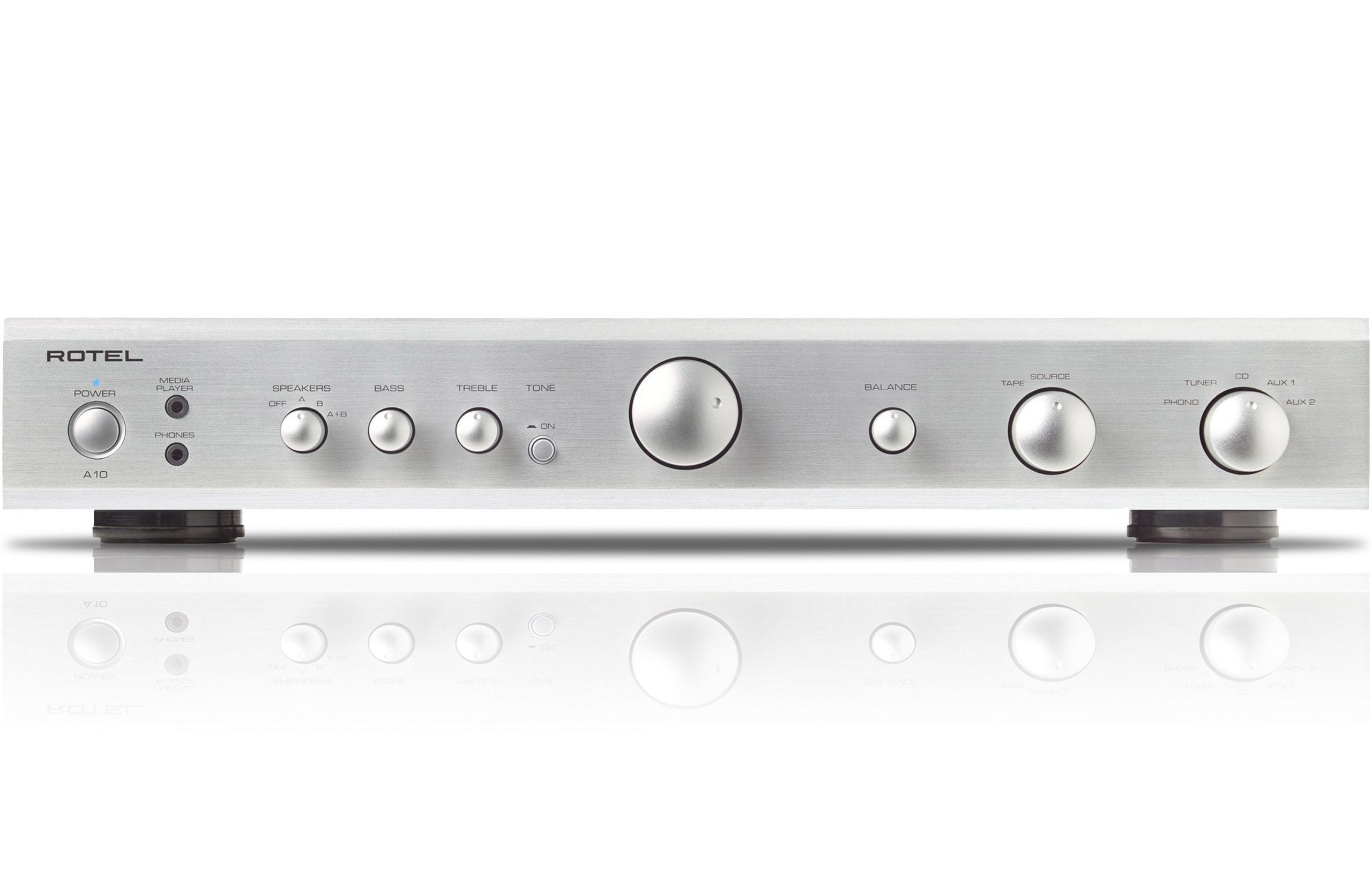

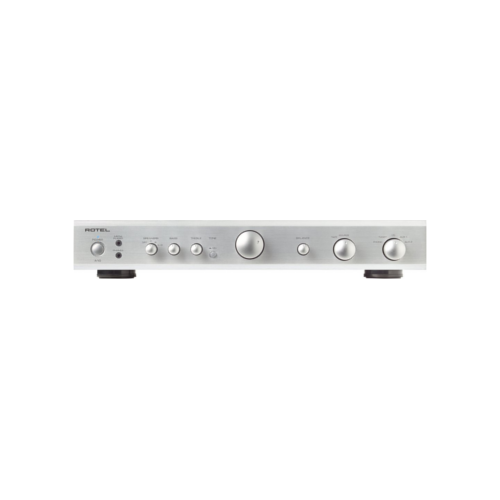

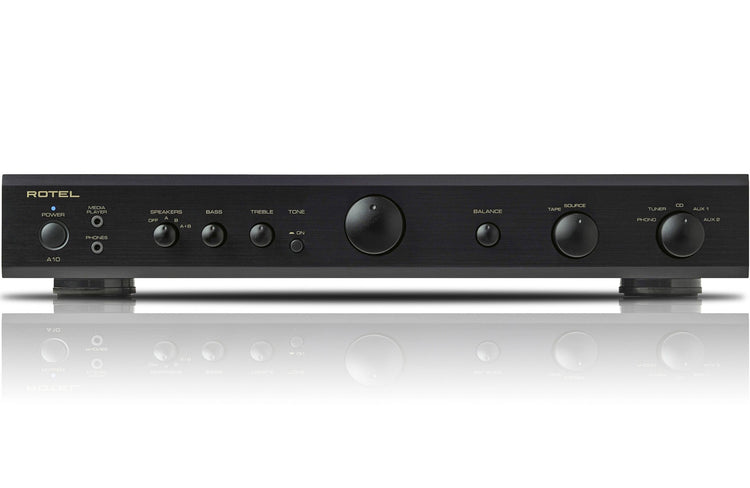

The Rotel A10 is based on the classic Rotel Class AB analog integrated amplifier, designed for music lovers everywhere. The architecture of the Rotel A10 is a perfect match for turntables, with an MM phono input being available on all Rotel amplifier models. This efficiently designed amplifier is all about performance – processing audio entirely in the analog domain to provide hours of listening enjoyment.
If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the Rotel A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

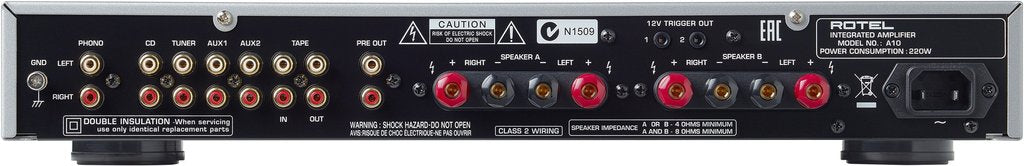

Simple to operate and a pleasure to listen to, the Rotel A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a MM phono input in case your taste runs to classic LPs, a Tuner input to listen to your favourite radio stations and two auxiliary inputs for other analogue source devices.
Continuous Power Output: 40 watts/ch
(20 - 20k Hz, < 0.03%, 8 ohms)
Total Harmonic Distortion: (20 Hz - 20k Hz) < 0.03% at rated power,
1/2 power or 1 watt
Intermodulation Distortion: (60 Hz : 7k Hz, 4:1) < 0.03% at rated power,
1/2 power or 1 watt
Frequency Response:
Phone input 20 Hz-15k Hz, ±0.3 dB
Line Level Inputs 10 Hz - 40k Hz, ±1 dB
Damping Factor (20 - 20,000 Hz, 8 ohms) 180
Input Sensitivity / Impedance
Phone input 2.5 mV / 47 k Ohms
Line Level Inputs 150 mV / 24 k Ohms
Input Overload -
Phone input 180 mV
Line Level Inputs 5 V
Preamp Output / Impedance 1 V / 470 Ohms
Tone Controls - Bass / Treble ± 6 dB at 100 Hz / 10k Hz
Signal to Noise Ratio (IHF “A” weighted)
Phone input 80 dB
Line Level Inputs 100 dB
Power Requirements 120 V, 60 Hz (USA)
230 V, 50 Hz (Europe)
Power Consumption 220 Watts
Dimensions (W, H, D) 17” x 2 7/8” x 13 1/2”
430 x 72 x 342 mm
Panel Height 60 mm / 2 3/8”.
Weight (net) 5.9 kg, 13 lbs.
- Analogue Inputs: 3.5 mm x 1 Phono x 1 RCA x 5
Rotel
by
Rotel
Rotel A10 Integrated Amplifier
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
$799.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The Rotel A10 is a 40-watt per channel integrated amplifier that will satisfy the audio purist who doesn’t require high power output or digital streaming capability. Its straightforward operation is refreshing and its performance is a pleasure to listen to.
