Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

Key Features

  • Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted

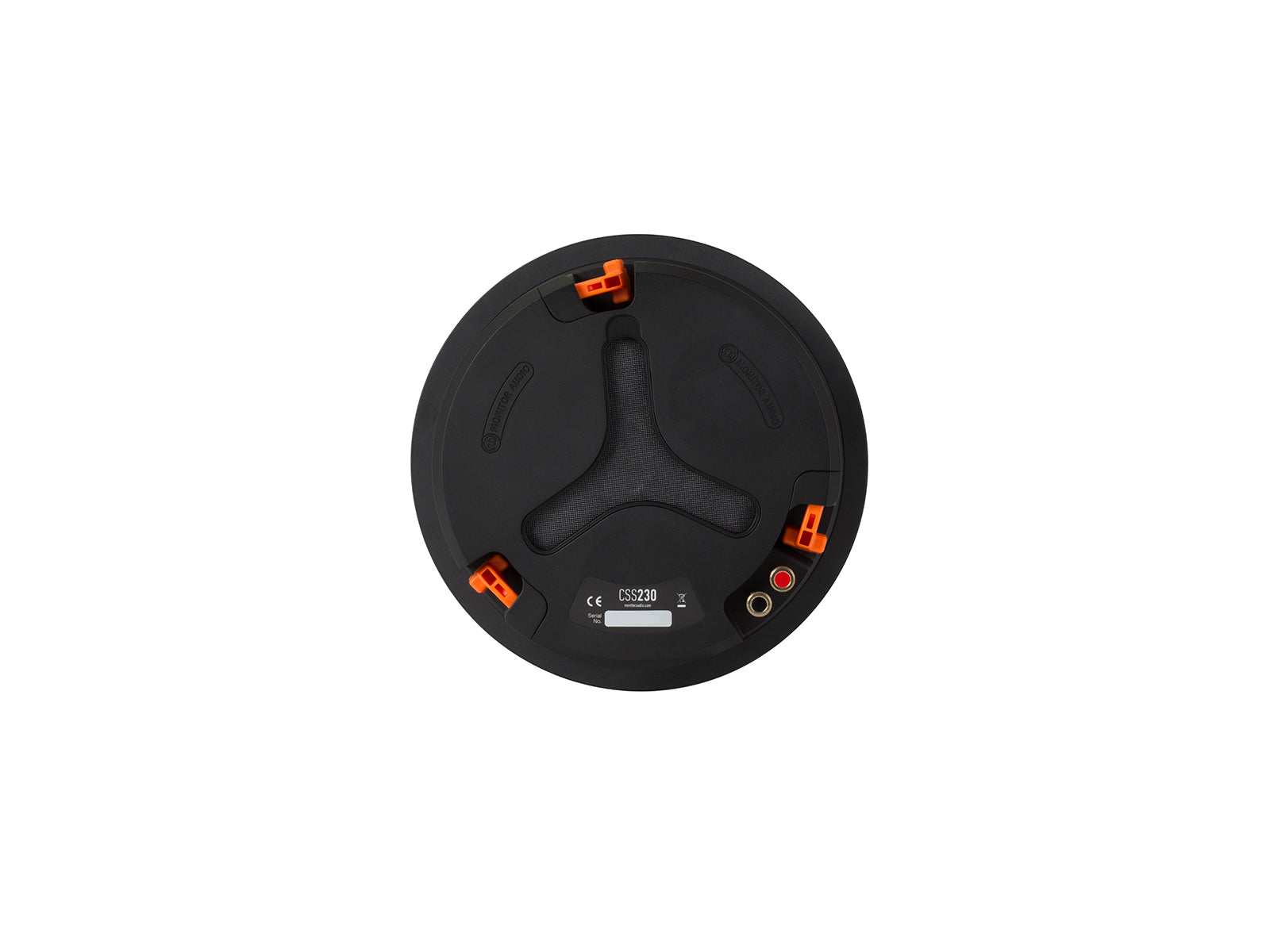

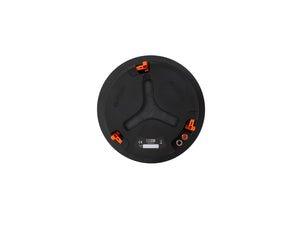

  • Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

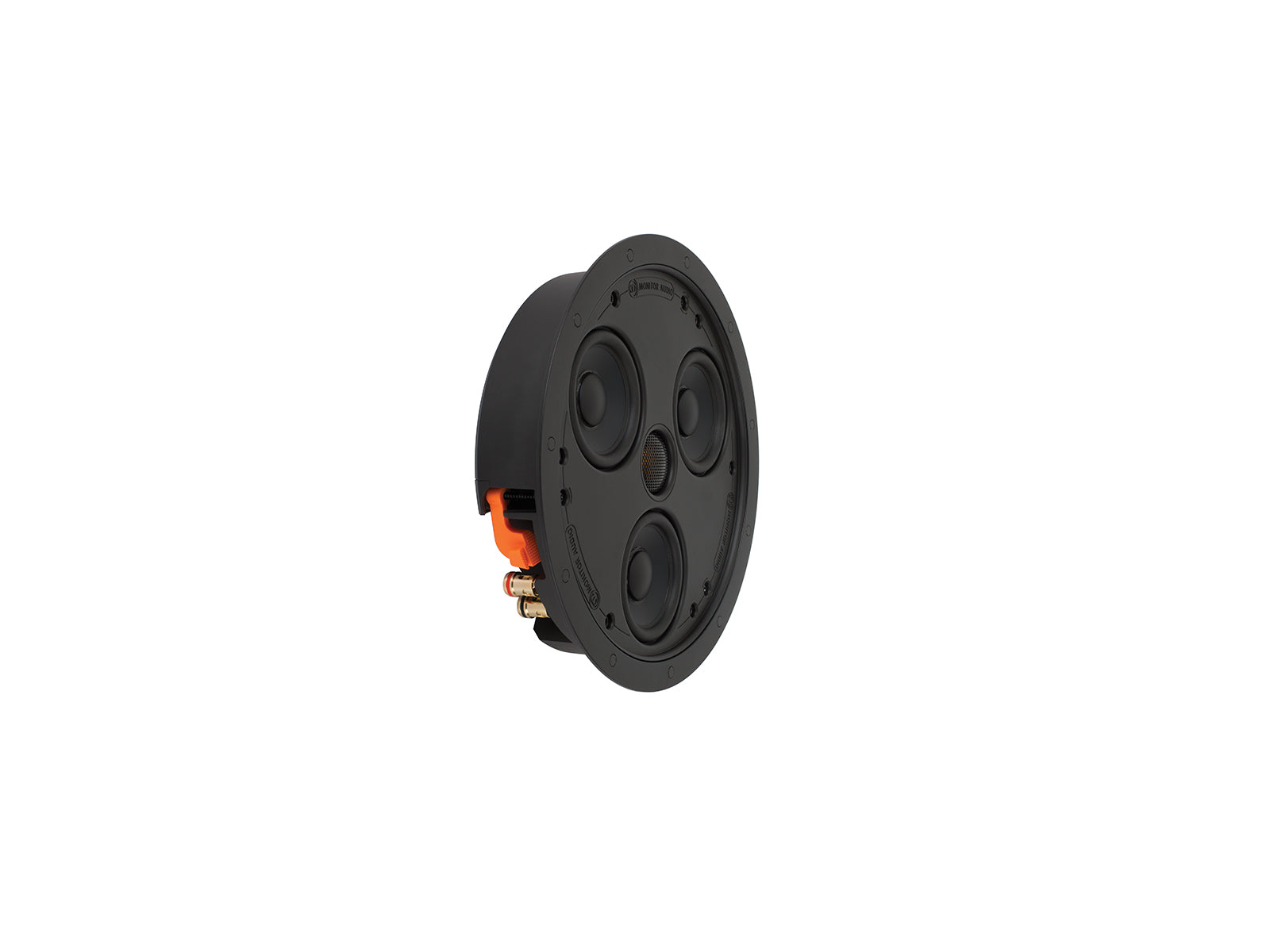

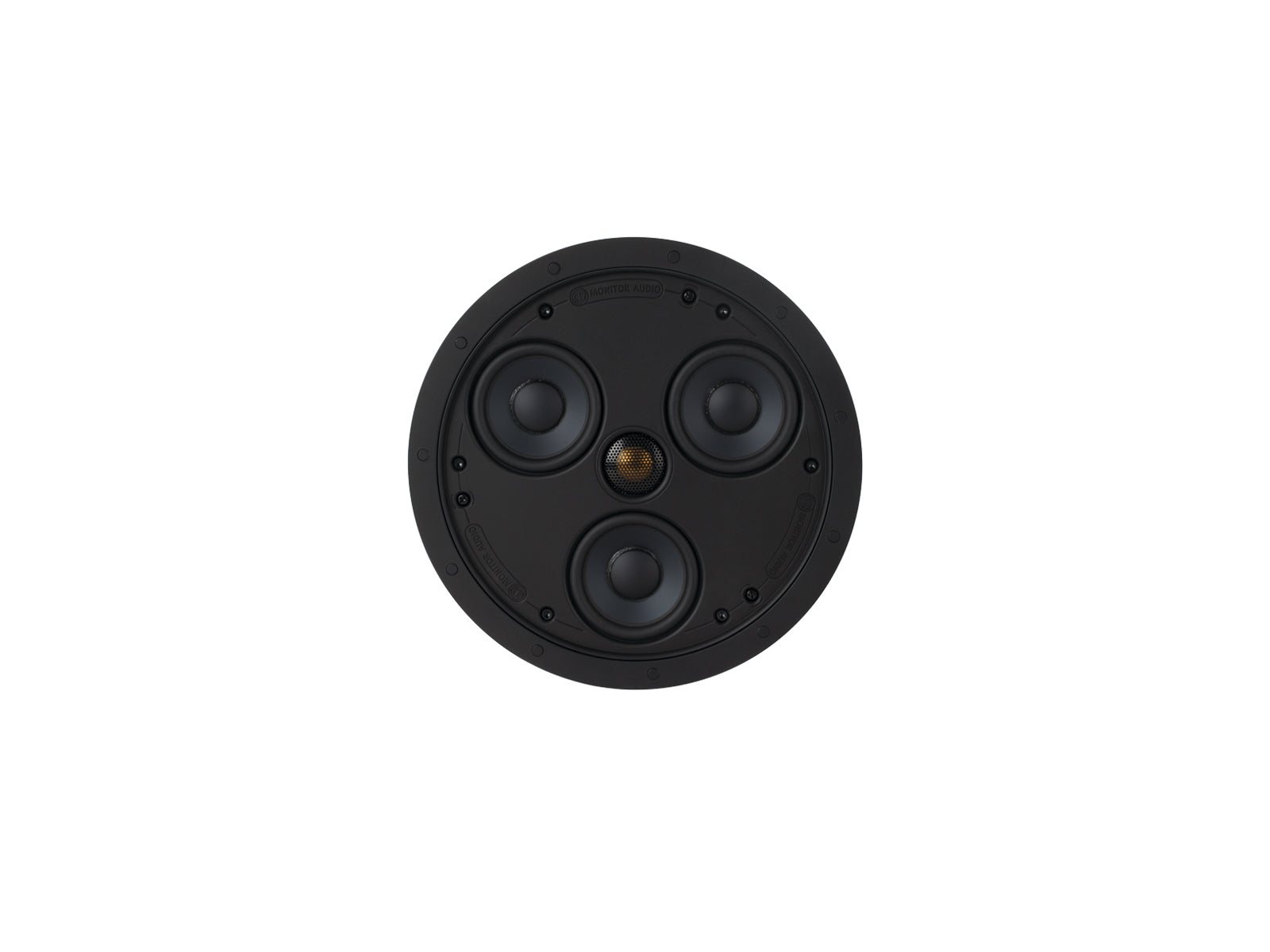

  • Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
  • Gold plated sprung push terminals are reliable and easy to connect

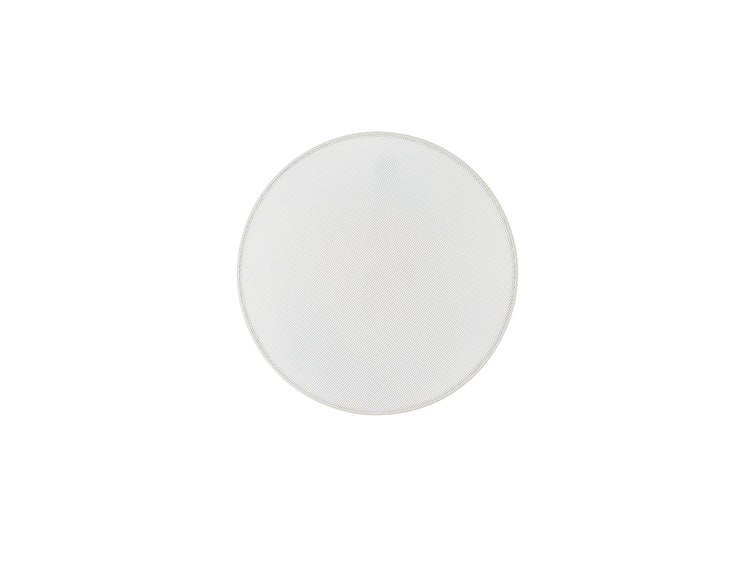

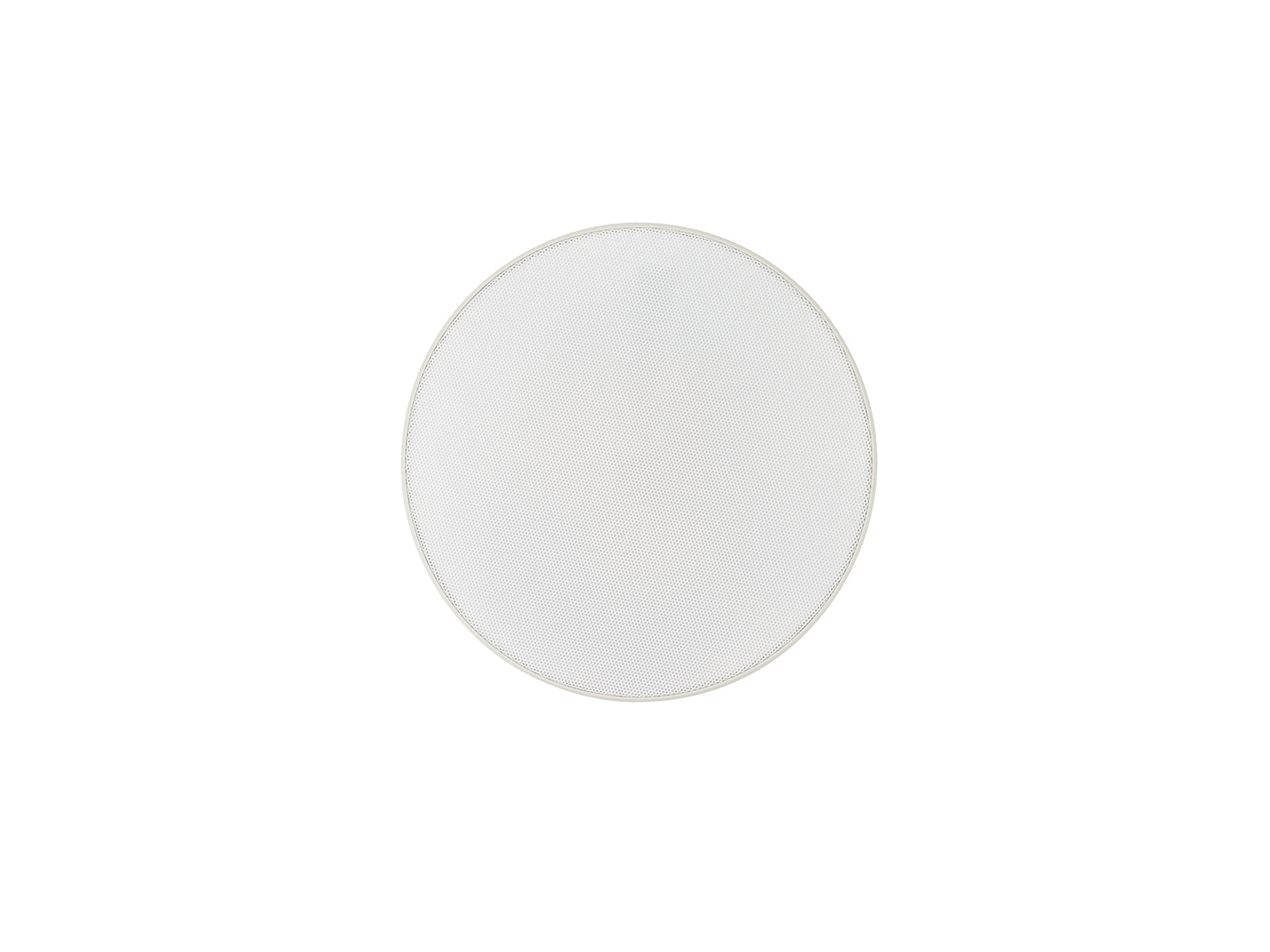

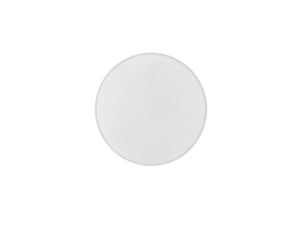

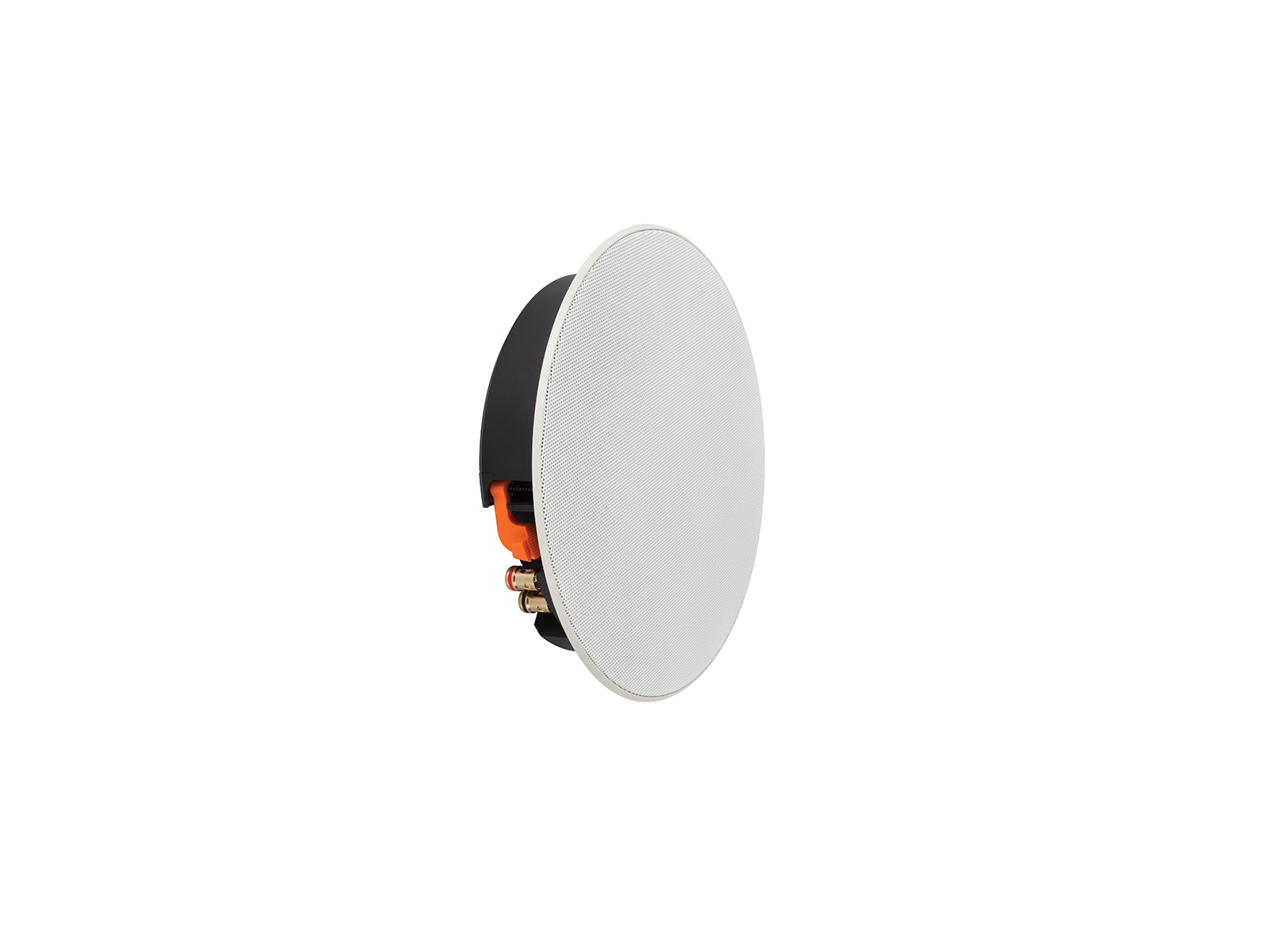

  • Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
  • Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
  • Existing CB6 pre-construction bracket for easier system design and planning
Frequency Response (-6 dB) 100 Hz – 30 kHz Sealed ‘CP’ (85 Hz – 30 kHz Open Back)
Nominal Impedance 8 Ohms
Sensitivity (1 W @ 1 m) 86 dB
Maximum SPL 103.8 dBA
Power Handling (RMS) 40 Watts – Full Range (60 Watts with Crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements 10 – 60 W
Drive Unit Complement 3 x 3" C-CAM Cone Bass-Mid Drivers, 1 x 19 mm (3/4") C-CAM Gold Dome Tweeter
Crossover Recommendation 100 Hz at a Minimum of 12 dB/Octave (24 dB/Octave Optimum)
Connection Gold Plated Sprung Push Terminals – For Bare Wire Connection up to 4 mm(2)
Overall Diameter (Including Grille) 250 mm (9 13/16")
Overall Depth (Including Grille) 54 mm (2 1/8")
Cut-Out Hole Diameter 211 mm (8 1/4")
Mounting Depth 50 mm (2")
Optional Square Grille - Outer Dimensions 249 x 249 mm (9 3/16")
Fixing Type 3 Position Tri-Grip Dog Fixings
Construction Material ABS (UL94 Rated, RoHS 2 Compliant) – Painted Steel Grille
Weight 2.88 kg (6 lb 5 oz)
Pre-Construction Bracket CB6 Pre-Construction Bracket (Purple)
Sold As Single Unit
Monitor Audio by Monitor Audio

Monitor Audio Super Slim CSS230 In Ceiling Speaker

Single
Regular price
$512.00
Sale price
$512.00
Regular price
$569.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2″) mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.
