- Description
- Specifications
The SoundFrame 3 In-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.
Key Features
* Quick and easy installation.
* Slender 87 mm (3.5") cabinet depth.

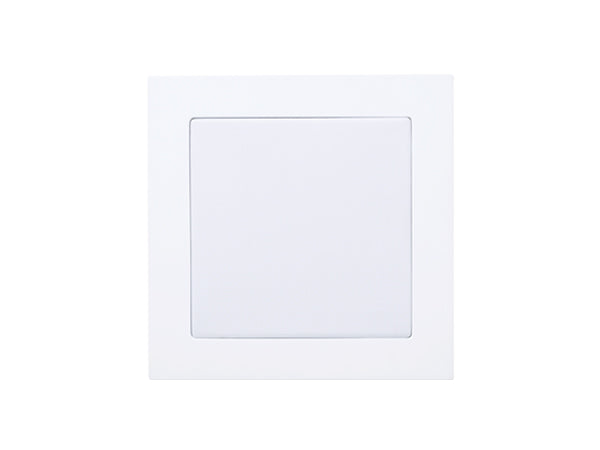

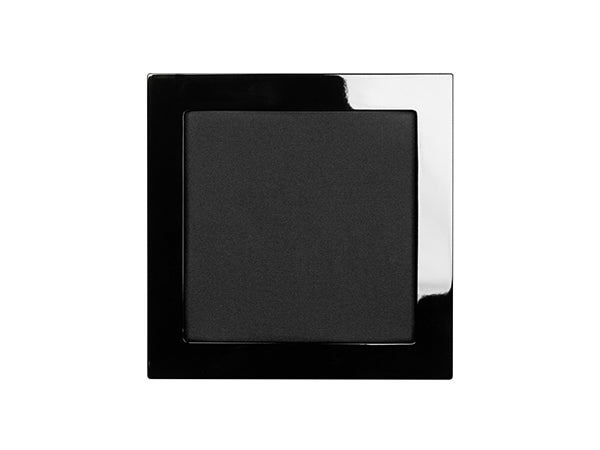

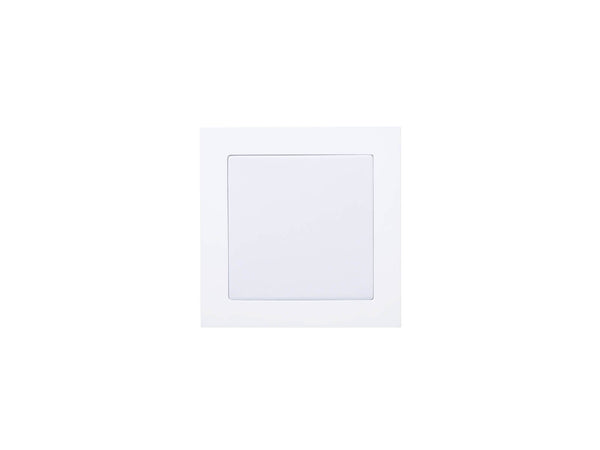

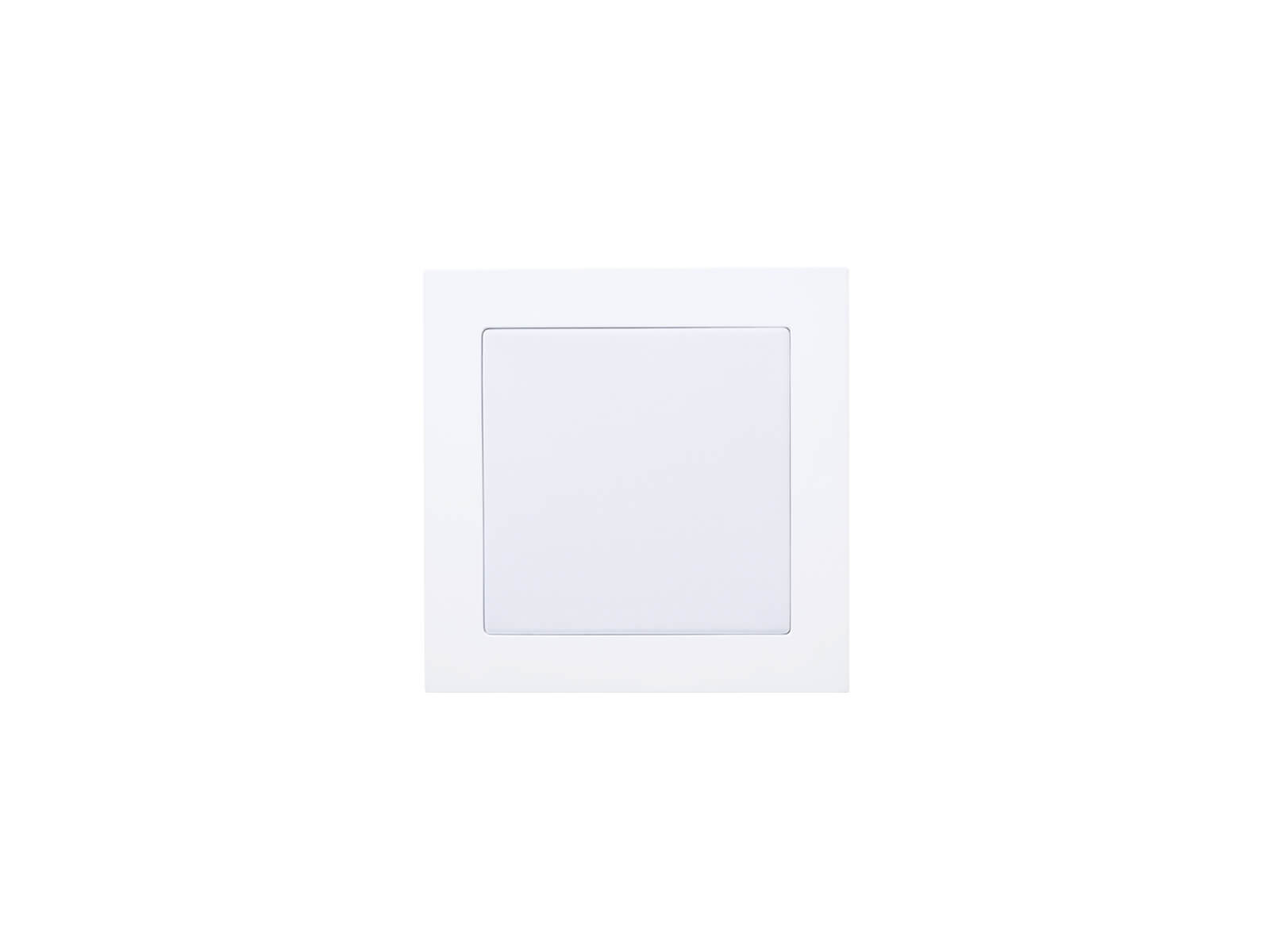

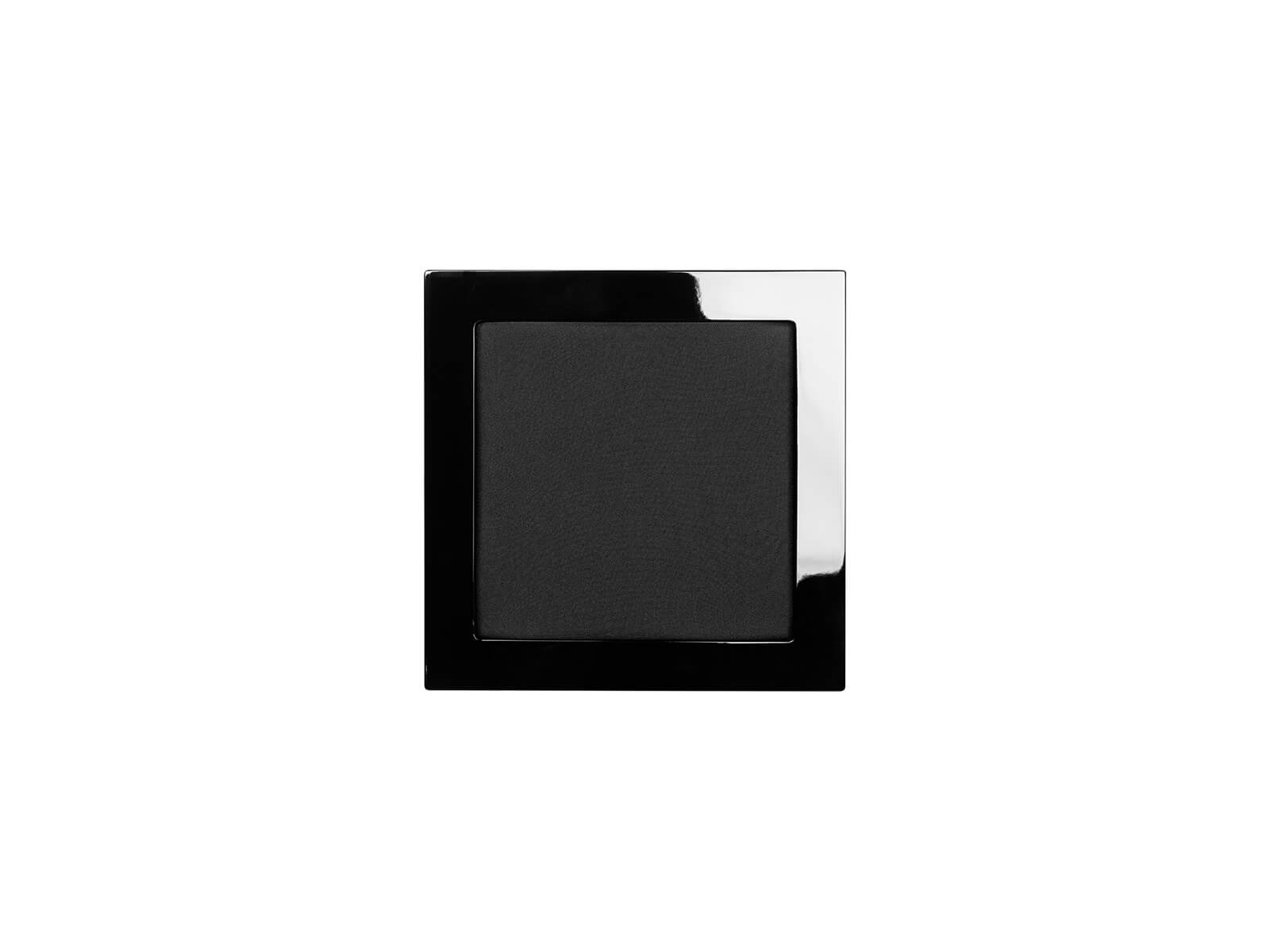

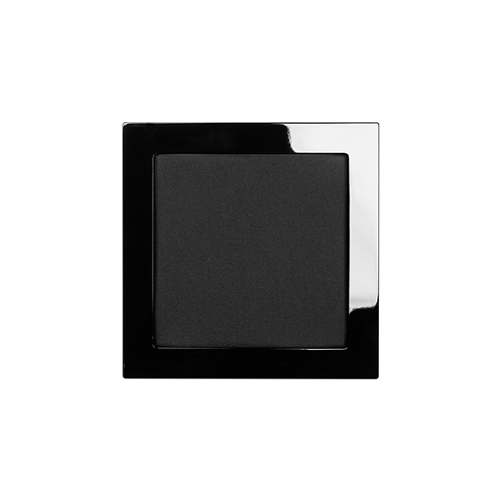

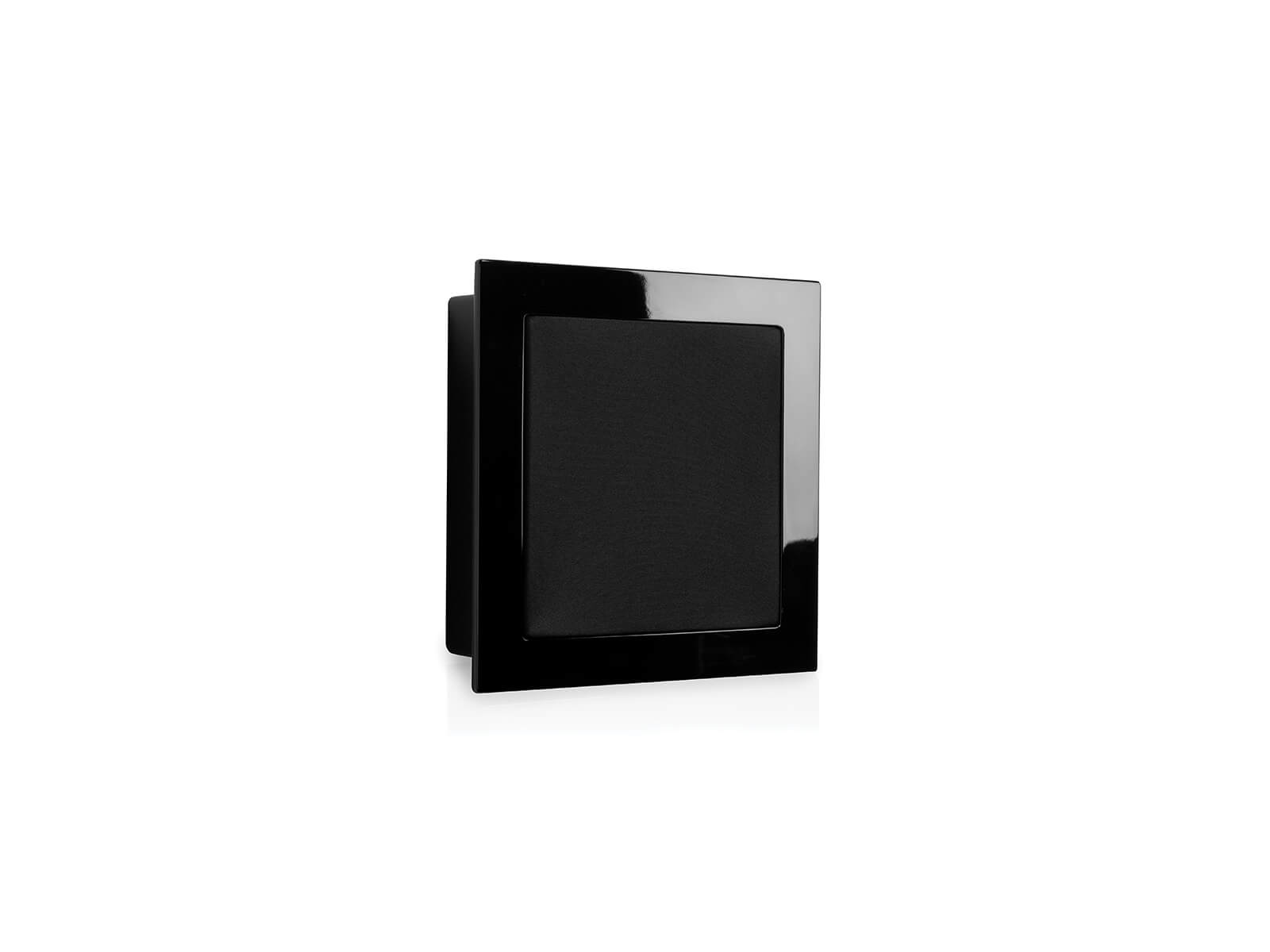

* Choice of high gloss white or black lacquer frames.
* SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.
* High frequency attenuation +- 3 dB.

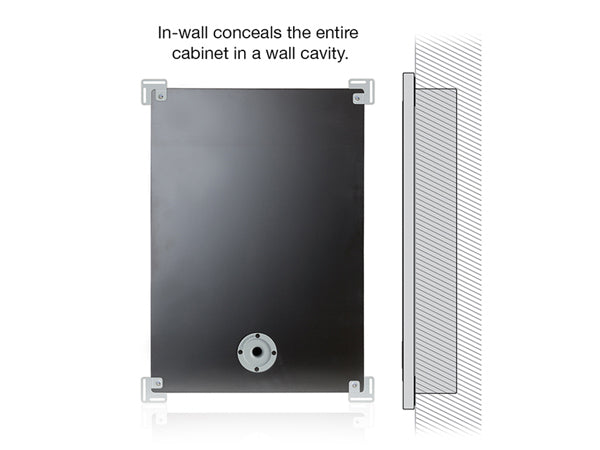

* Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
- Frequency Response 75 Hz — 35 kHz
- Sensitivity (1W@1M) 86 dB
- System Configuration 2-Way
- Drive Unit Complement 1 x 4" C-CAM mid-range driver 1 x 1" pivoting Gold Dome tweeter
- Power Handling (RMS) 50 W
- Maximum SPL 102.5 dBA
- Recommended Amplifier Requirements 25 — 50 W
- Bass Alignment Ported Box
- Nominal Impedance 8 ohms
- Crossover Frequency 3.2 kHz
- Dimensions (Including Frame (H x W x D)) 301.5 x 301.5 x 77.5 mm (117/8 x 117/8 x 31/16")
- Cut-Out Dimensions 251 x 251 x 59.5 mm (97/8 x 97/8 x 25/16")
- Depth From Wall 18 mm (3/4")
- Weight (packaged) 3 kg (6.6 lbs)
Monitor Audio
by
Monitor Audio

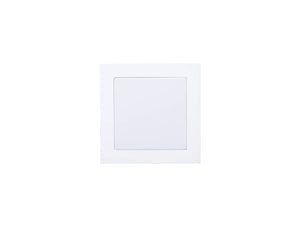

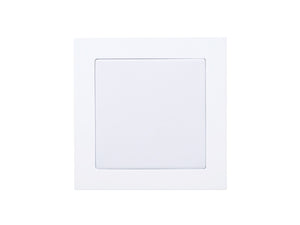

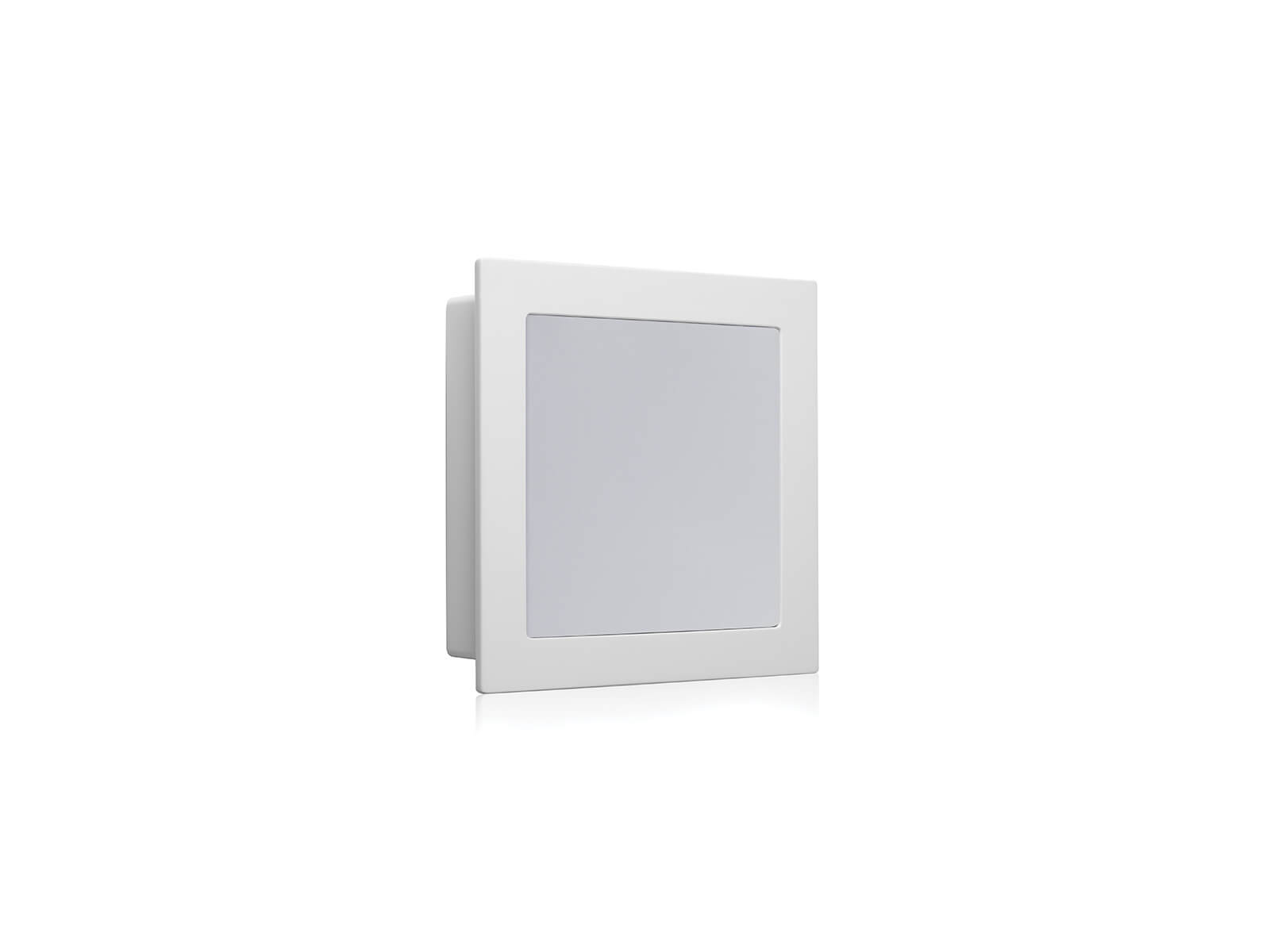

Monitor Audio SoundFrame 3 In Wall Speaker
Single
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
$499.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 In-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 In-Wall and SoundFrame 2 In-Wall, or with a subwoofer.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
