- Description
- Specifications
The SoundFrame 2 In-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Key Features
* Quick and easy installation.
* Slender 87 mm (3.5") cabinet depth.

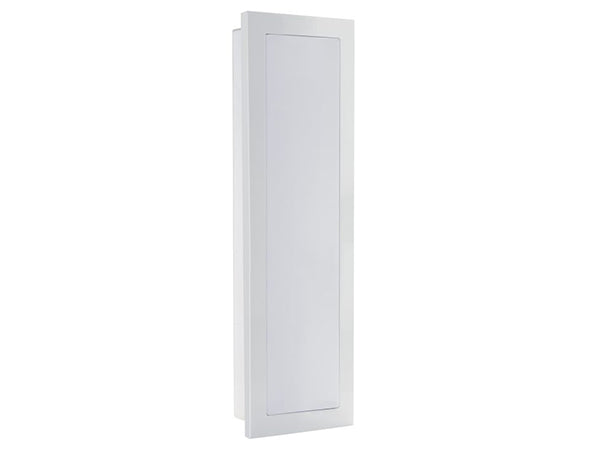

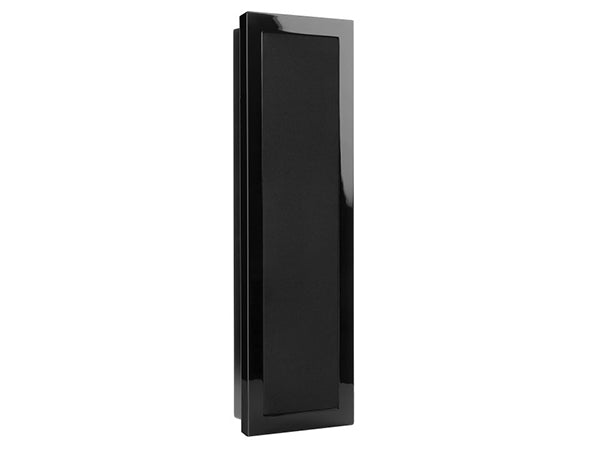

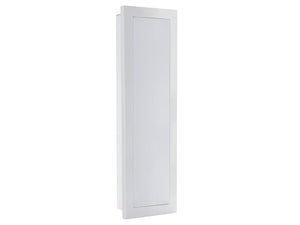

* Choice of high gloss white or black lacquer frames.
* SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
* High frequency attenuation +- 3 dB.
* Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
- Frequency Response 55 Hz — 35 kHz
- Sensitivity (1W@1M) 86 dB
- Nominal Impedance 8 ohms
- Power Handling (RMS) 100 W
- Maximum SPL 106 dBA
- Bass Alignment Sealed Box
- Crossover Frequency 550 Hz & 3.3 kHz
- System Configuration 3-Way
- Drive Unit Complement 1 x 165 mm (61/2 inches) C-CAM mid/bass driver with RST 1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
- Dimensions (Including Frame (H x W x D)) 802.5 x 252.5 x 87.5 mm (315/8 x 915/16 x 37/16")
- Cut-Out Dimensions 750 x 200 x 75 mm (291/2 x 77/8 x 215/16")
- Depth From Wall 19 mm (3/14")
- Weight (packaged) 7.26 kg (16 lbs)
Monitor Audio
by
Monitor Audio
Monitor Audio SoundFrame 2 In Wall Speaker
Single
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
$999.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

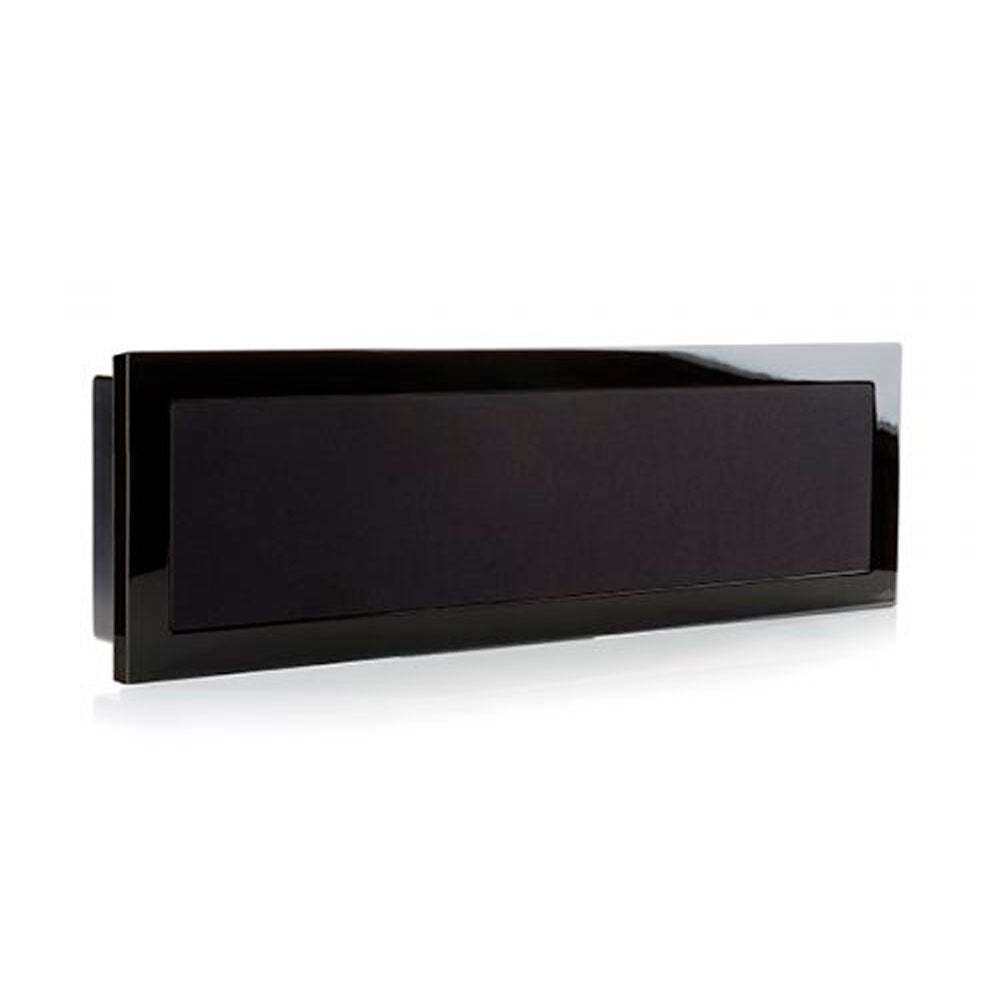

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 2 In-Wall is a longer centre channel speaker designed for visual harmony with thin televisions or projection screens and can also be placed in a vertical position to match larger displays.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
