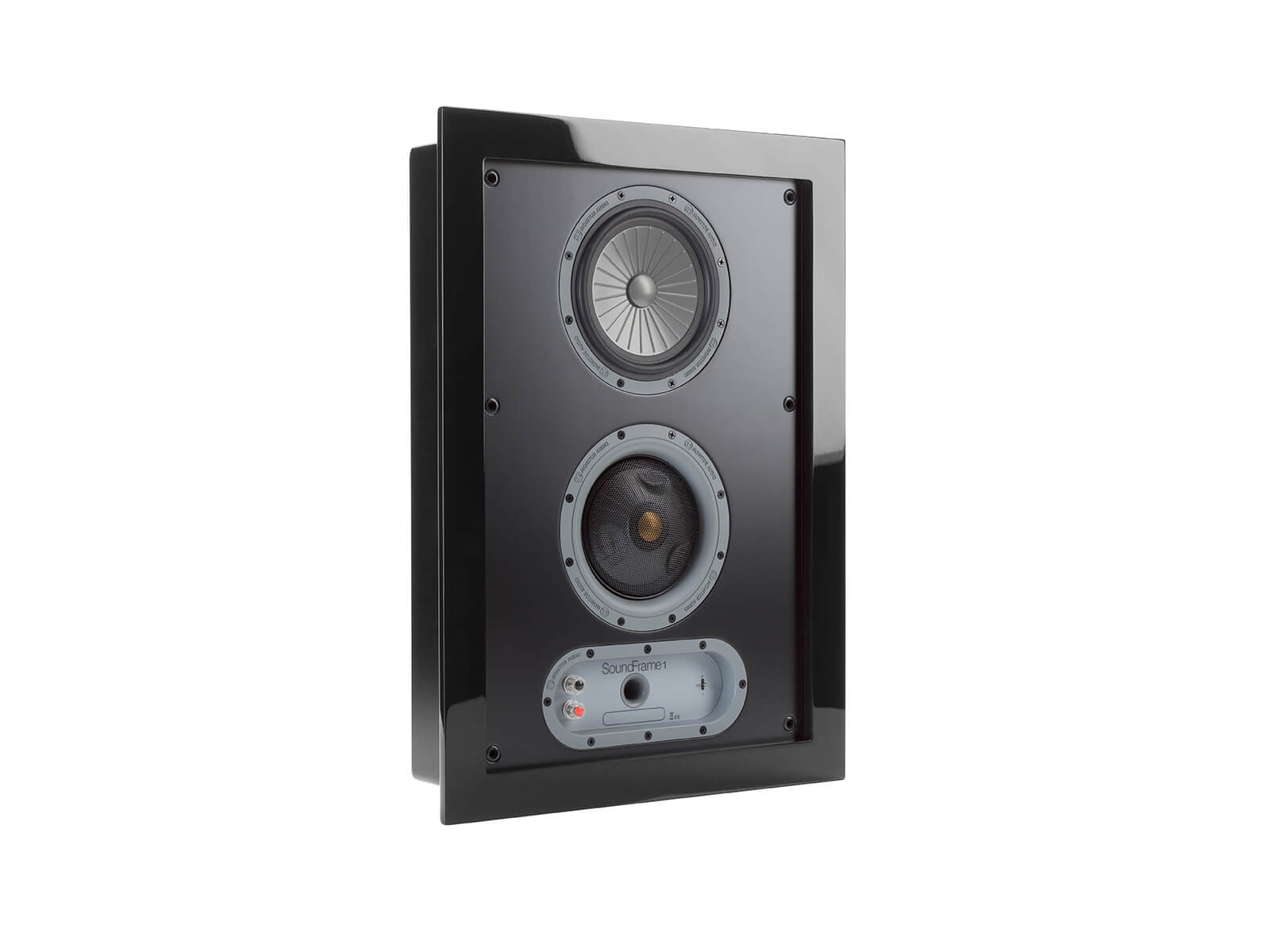

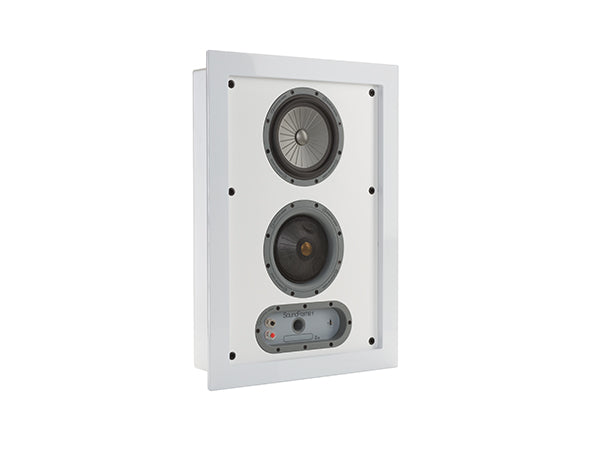

The SoundFrame 1 On-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Technology
* Quick and easy installation.
* Slender 87 mm (3.5") cabinet depth.
* Choice of high gloss white or black lacquer frames.
* SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
* High frequency attenuation +- 3 dB.
* Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
- Frequency Response 55 Hz — 35 kHz
- Sensitivity (1W@1M) 86 dB
- Nominal Impedance 8 ohms
- Power Handling (RMS) 100 W
- Maximum SPL 106 dBA
- Recommended Amplifier Requirements 25 — 100 W
- Bass Alignment Sealed Box
- Crossover Frequency 550 Hz & 3.3 kHz
- System Configuration 3-Way
- Drive Unit Complement 1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST 1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
- Dimensions (Including Frame (H x W x D)) 539 x 389 x 87.5 mm (211/4 x 155/16 x 37/16")
- Depth From Wall 87.5 mm (37/16")
- Weight 7.44 kg (16.37 lbs)
Monitor Audio
by
Monitor Audio
Monitor Audio SoundFrame 1 On Wall Speaker
Single
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
$999.00
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 1 On-Wall adopts the aspect of a typical portrait picture frame and is designed for music and film audio in a front left/right and surround configuration.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
