Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.
In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Key Features
- Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
- C-CAM gold dome tweeters per channel
- Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel

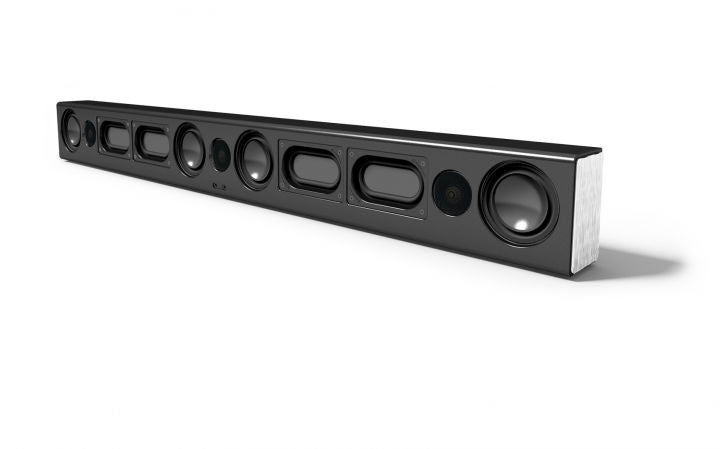

- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket

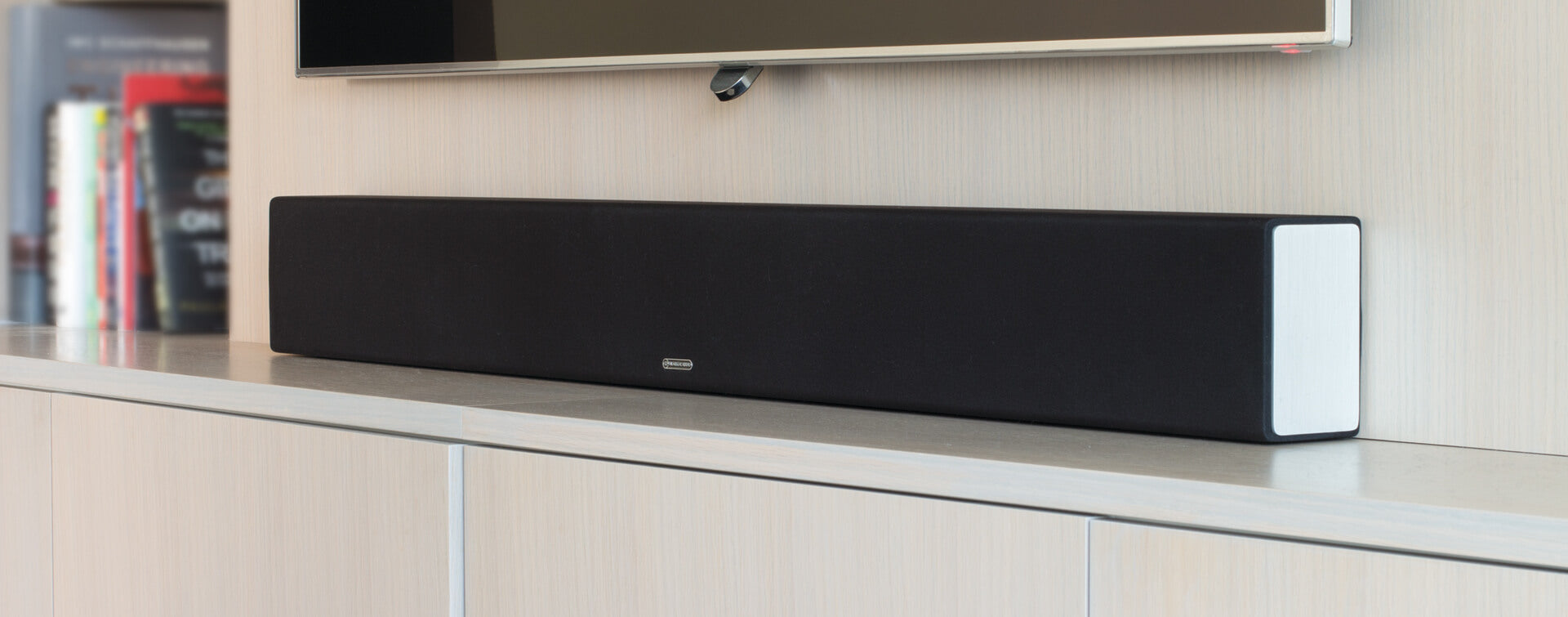

- Integrated Silicon feet provide a secure cabinet-top mounting alternative
SPECIFICATIONS: System Format: 2 - way Frequency Response, In-room (-6dB): 47 Hz - 35 kHz Sensitivity (2.83v @ 1m): 86 dB Nominal Impedance: 8 Ohms Minimum Impedance: 3.9 Ohms @ 250 Hz Maximum SPL (single, free-field): 104 dB Power Handling (RMS): 100 W Recommended Amplifier Requirements: 40 - 100 W Crossover Frequency: 2.6 kHz Port Tuning Frequency: 58 Hz Bass Alignment: Bass reflex HiVe II port system Drive Unit Complement: 1 x 5 1/4" C-CAM RST II mid-bass driver 1 x 1" (25 mm) C-CAM Gold Dome tweeter with UD Waveguide II External Dimensions (Including Grille and Terminals (H x W x D)): 282 x 165 x 272 mm (111/8 x 61/2 x 103/8”) External Dimensions (including Outrigger Feet and Spikes (H x W x D)): N/A Weight: 5.6 kg (12 lb 6 oz) Sold As: Pair
Monitor Audio
by
Monitor Audio
Monitor Audio SB-3 Passive Soundbar - 3 Channel
Single
- Regular price
- $1,304.00
- Sale price
- $1,304.00
- Regular price
-
$1,449.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

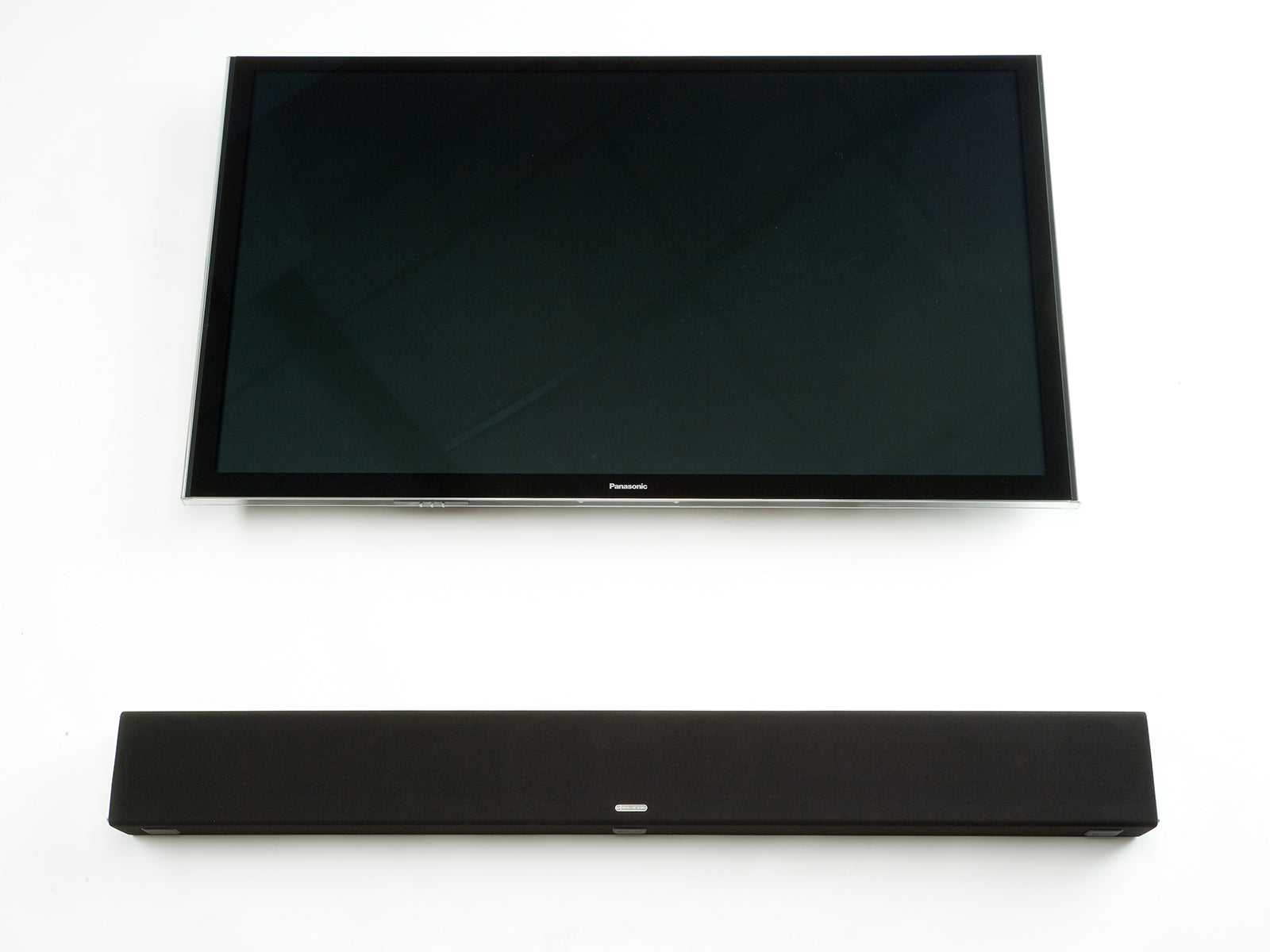

The SB-3 is custom-built for screen sizes above 60 inch and features three separate driver arrays for left, centre, right channels in a single cabinet.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
