- Description
- Specifications

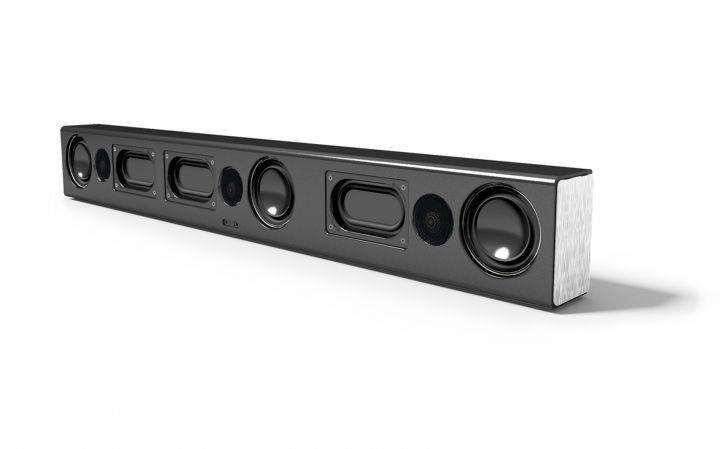

The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.
In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Key Features
- C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
- C-CAM gold dome tweeters per channel
- Auxiliary Bass Reflex (ABR) per channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative
Frequency Response (-3 dB) All Channels: 80 Hz – 30 kHz Sensitivity (1 W @ 1 m) Left and Right Channels: 84 dB, Centre Channel: 87 dB Nominal Impedance 8 Ohms Power Handling (RMS) Left and Right Channels: 40 W, Centre Channel: 80 W System Power Handling (RMS) All Channels: 100 W (High Pass Filter Set to 100 Hz) Recommended Amplifier Requirements All Channels: 30 — 100 W Crossover Frequency 80 — 120 Hz Maximum SPL 104 (108.8 All Channels Driven) dBa Bass Alignment Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading, Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading Drive Unit Complement Left and Right Channels: 2 x 4" (100 mm) C-CAM Cone Bass/Mid Driver, 2 x 1" (25 mm) C-CAM Gold Dome Tweeter, Centre Channel: 2 x 4" (100 mm) C-CAM Cone Bass/Mid Driver, 1 x 1" (25 mm) C-CAM Gold Dome Tweeter Cabinet Dimensions (Including Feet (H x W x D)) 147 x 1307 x 93 mm (5 13/16 x 51 7/16 x 3 11/16") External Dimensions (Including Bracket (H x W x D)) 145 x 1307 x 100 mm (5 11/16 x 51 7/16 x 3 15/16") Bracket BSB Weight 9.1 kg (20 lb) Sold As Single Unit
Monitor Audio
by
Monitor Audio

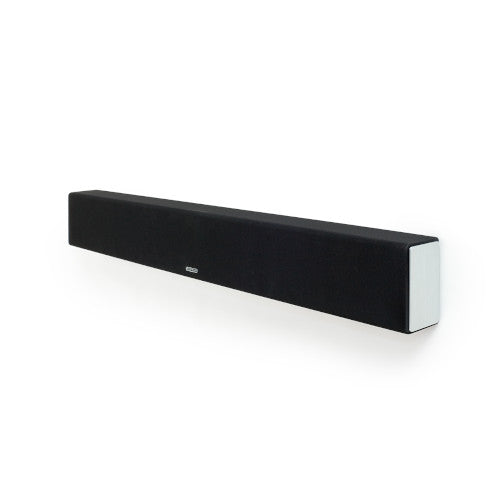

Monitor Audio SB-2 Passive Soundbar - 3 Channel
Single
- Regular price
- $1,124.00
- Sale price
- $1,124.00
- Regular price
-
$1,249.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

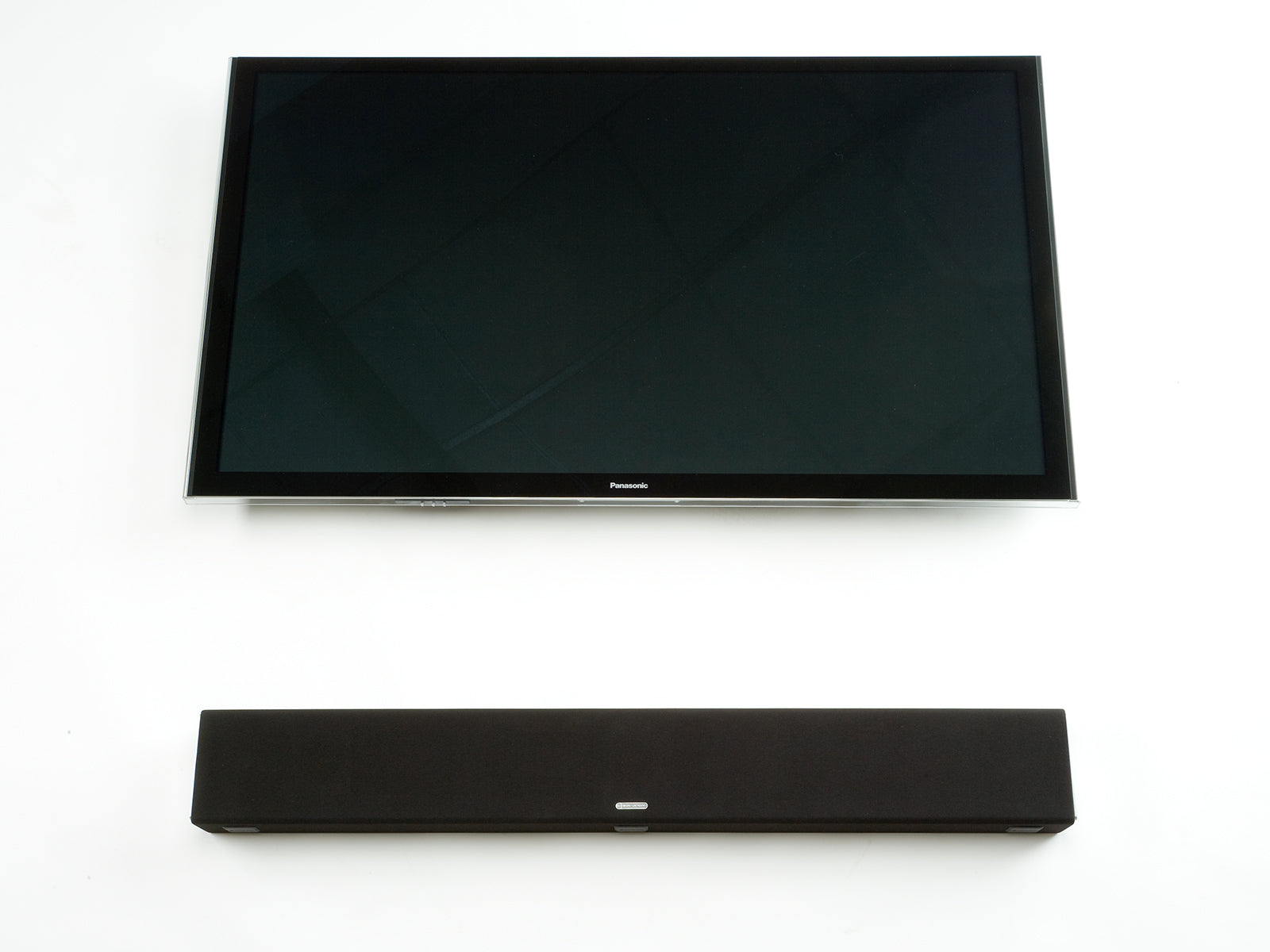

The compact SB-2 is engineered for seamless integration with 50-60 inch TVs, featuring three separate driver arrays for left, centre, right channels in a single cabinet.
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
