- Description
- Specifications
Key Features
- Rigid, high quality steel case
- Switch mode power supply
- Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
- High efficiency design resulting in cool running – low thermal output
- DSP controlled with advanced limiters
- <0.5watt standby power consumption (ErP certified)
- DC short circuit protection, over-current and thermal protection
System Format Active Subwoofer Amplifier Lower Frequency Limit 25 Hz Upper Frequency Limit Variable 40 – 120 Hz @ 24 dB/Octave Amplifier Output 250 W @ >1% THD+N Drive Unit Complement 4 – 8 Ohms Amplifier Classification Class D Amplifier with Switch Mode Power Supply (SMPSU) Cabinet Support For Use When Using the Dedicated Back Box EQ Music / Movie / Impact Phase Control 0 & 180 Degrees Auto Sensing Line Level >3.5 mV Input Level Requirements Standby After Approximately 15 Minutes if no Signal Sensed Input Impedance >20K Ohms Mains Input Voltage AC 110 - 120 V ~ 50/60 Hz AC 220 - 240 V ~ 50/60 Hz (Factory Region Preset) Dimensions (H x W x D) 43.7 x 432 x 263 mm (1 3/4 x 17 x 10 3/8") Connection LFE In (Stereo RCA and Balanced), 12 V Trigger In (3.5 mm Mono Mini-Jack), Left and Right Speaker Output Trigger Input 5 - 12 V via 3.5 mm Mono Mini-Jack Socket Power Consumption Standby: <0.5 W (ErP Approved) / Typical Idle: <10 W / Max Rated: 200 W Weight (Unpacked) 4 kg (8 lb 12 oz) Sold As Single Unit
Monitor Audio
by
Monitor Audio
Monitor Audio IWA-250 Installation Subwoofer Amplifier
Single
- Regular price
- $692.00
- Sale price
- $692.00
- Regular price
-
$769.00
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

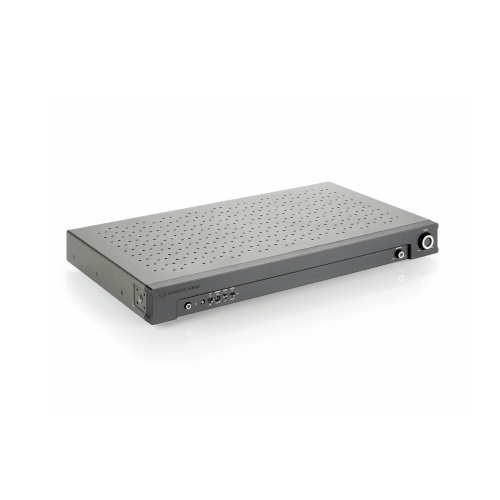

The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case. Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10’s to provide higher power levels for larger rooms or to meet customer demands
How To Order
- Purchase Online
Add to cart and checkout online - Phone Order
Call us on 02 9651 4922 to talk to a real person.
