British High-Fidelity Architectural Sound Redefined

The in-wall loudspeaker is a versatile, high-performance tool that can add localised quality to any custom installation. The Creator Series in-wall models allow you to create areas of high-performance sound, often to create a dedicated home cinema space, that rival that of stand-alone loudspeakers while remaining virtually invisible. All the models in the range are the same size, but audio performance and innovative features increase as you move up the tiers.

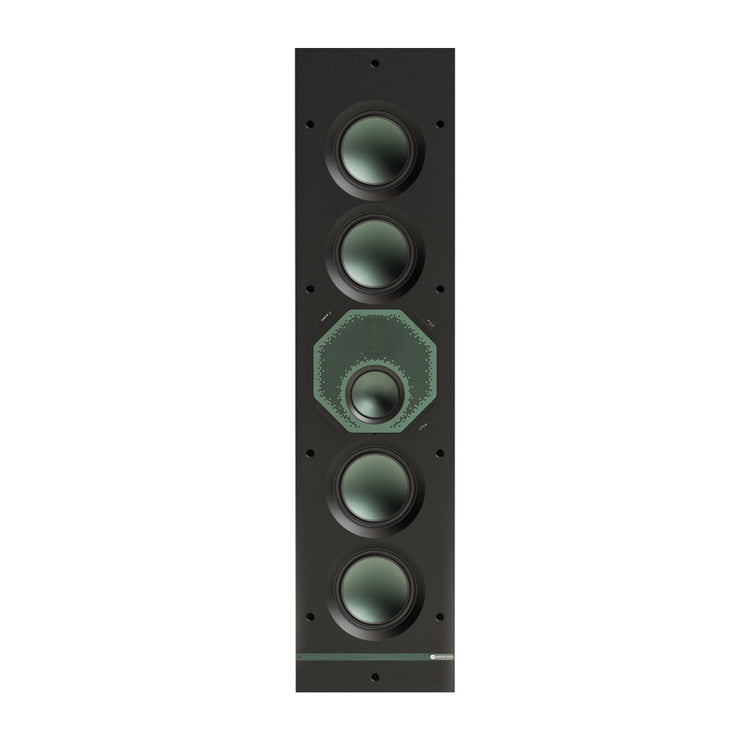

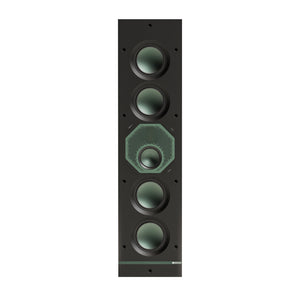

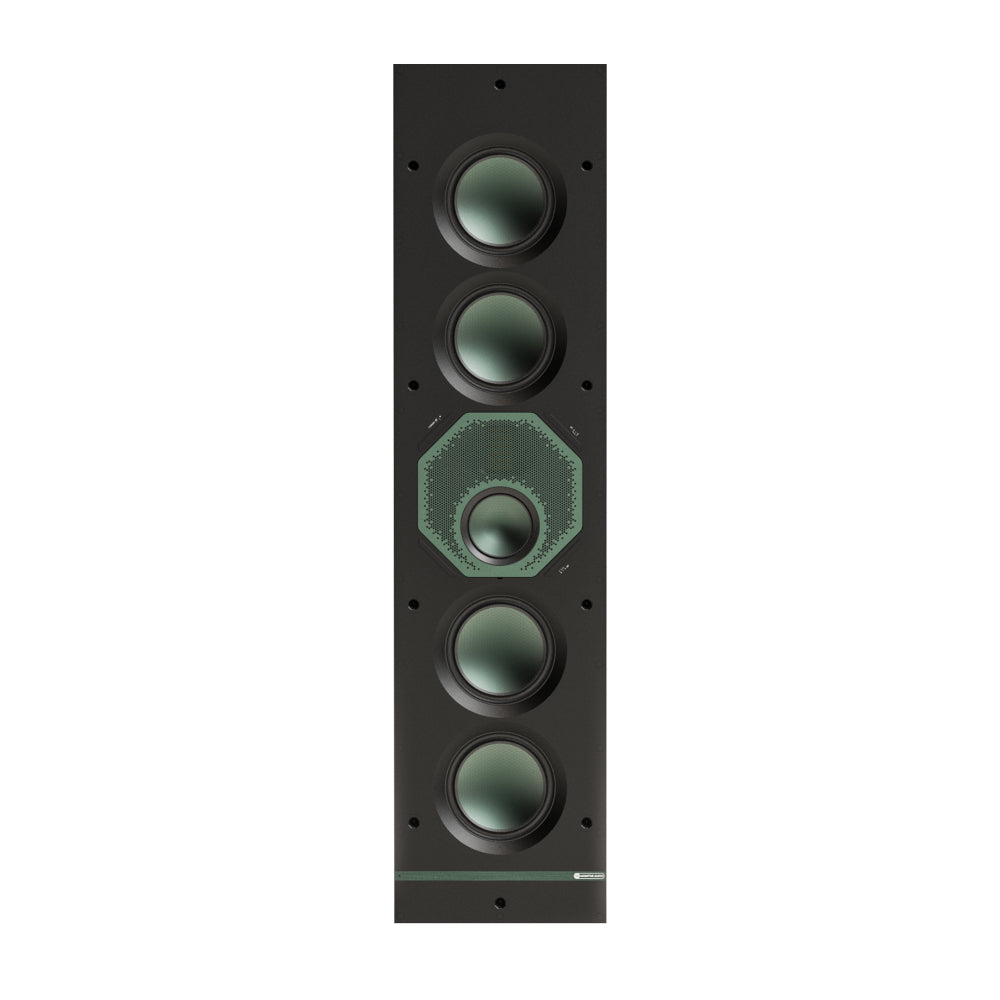

This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and four RDT III bass drivers.

This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of its acoustic technology was developed. This really is the last word in installed performance.

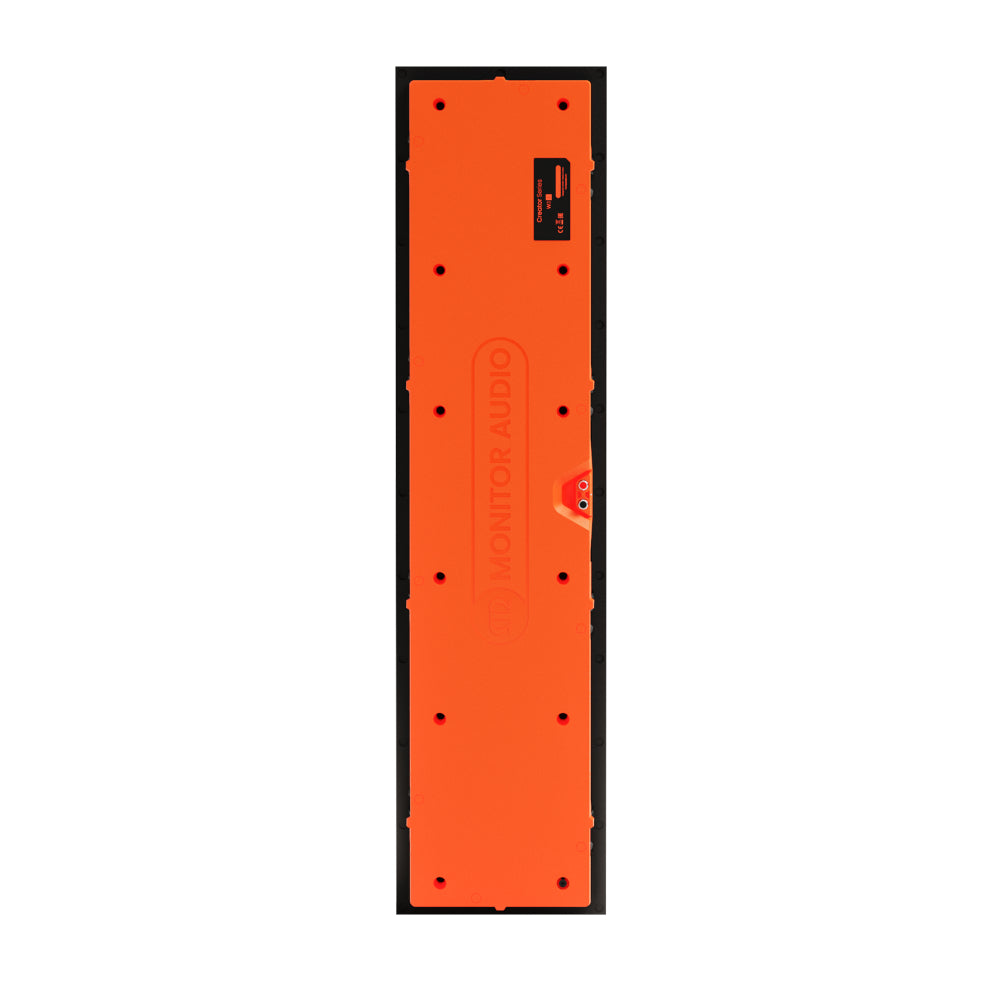

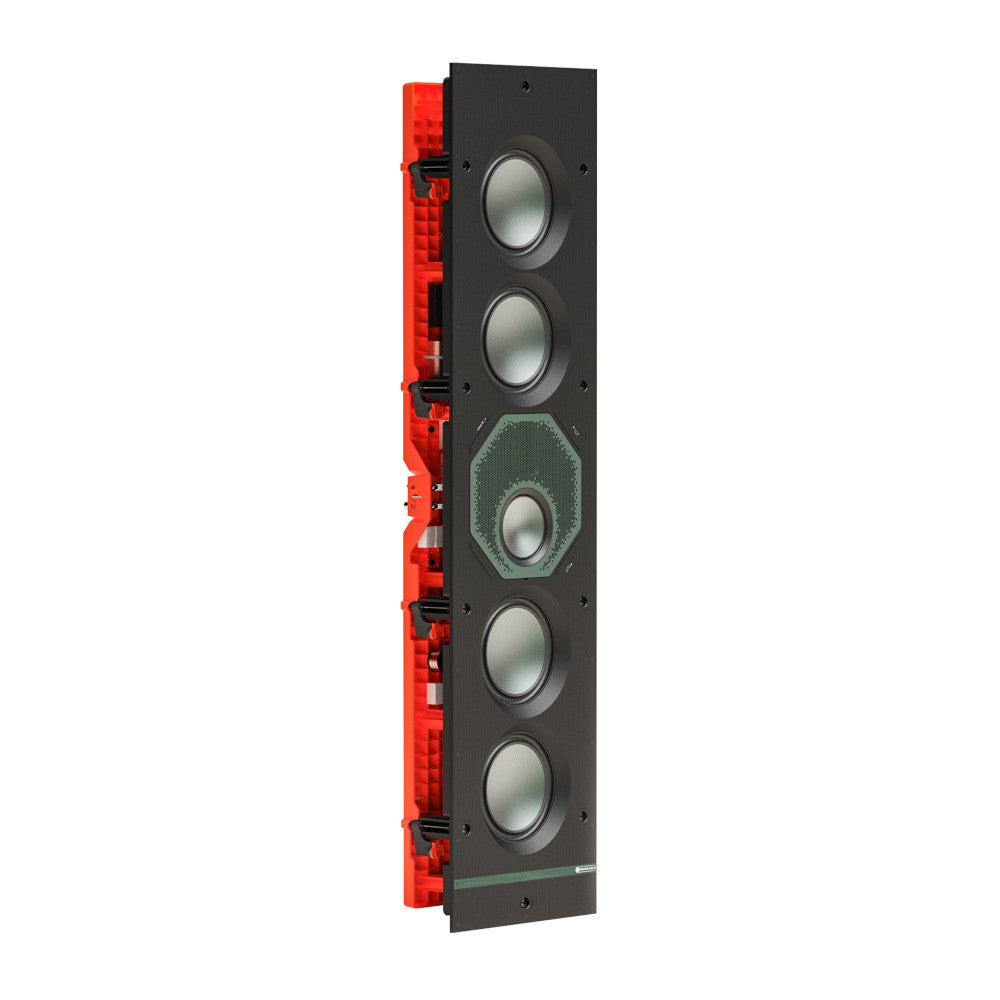

It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.

Features at a glance:

  • Ideal for installations where high-performance acoustics are desired
  • Three-way design
  • 1 x 1" MPD II transducer
  • 4 x 5" RDT III bass drivers
  • 1 x 3" C-CAM midrange driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment
System Format

3–Way

Frequency Response, Installed (-6dB)

36 Hz – 60 kHz​

Sensitivity (2.83Vrms@1m, Installed)

89 dB

Nominal Impedance

4 Ohms

Minimum Impedance (20Hz to 20kHz)

4.5 Ohms @ 1.2 kHz

Maximum Peak SPL (AES75, Z-weighted)

123 dB

Continuous Power Handling (CTA 426-B)

300 W

Recommended Amplifier Power​ (RMS, Music Signal)

150 – 600 W into 4 ohms
75 – 300 W into 8 ohms

Crossover Frequency

LF/HF: 700 kHz
MF/HF: 3.25 kHz

Drive Unit Complement

4 x 5" (127 mm) RDT III bass driver
1 x 3" (76 mm) C-CAM midrange driver
1 x MPD II transducer

Mounting Depth

85 mm (33/8")

Cutout L x W

880 x 202 mm (345/8 x 715/16")

Pre-Construction Bracket

WL-B

External Dimensions with all accessories fitted (H x W x D)

909 x 231 x 93 mm (221/16 x 91/8 x 39/16")

Weight (each)

12.4 kg (27 lb 5 oz)

Cabinet Finish

Matte black & Orange & Green

Sold As

Single Unit

Warranty

Lifetime

Monitor Audio by Monitor Audio

Monitor Audio Creator Series W3L In Wall Speaker

Single
Regular price
$3,059.00
Sale price
$3,059.00
Regular price
$3,399.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Monitor Audio W3L In Wall Speaker

This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer. It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for installations where high-performance acoustics are desired  | Three-way design  |  1 x 1" MPD II transducer  |  4 x 5" RDT III bass drivers  |  1 x 3" C-CAM midrange driver  |  Quik-Link speaker cable connector for quicker installation  |  Tri-Grip II for easy and secure fitment
