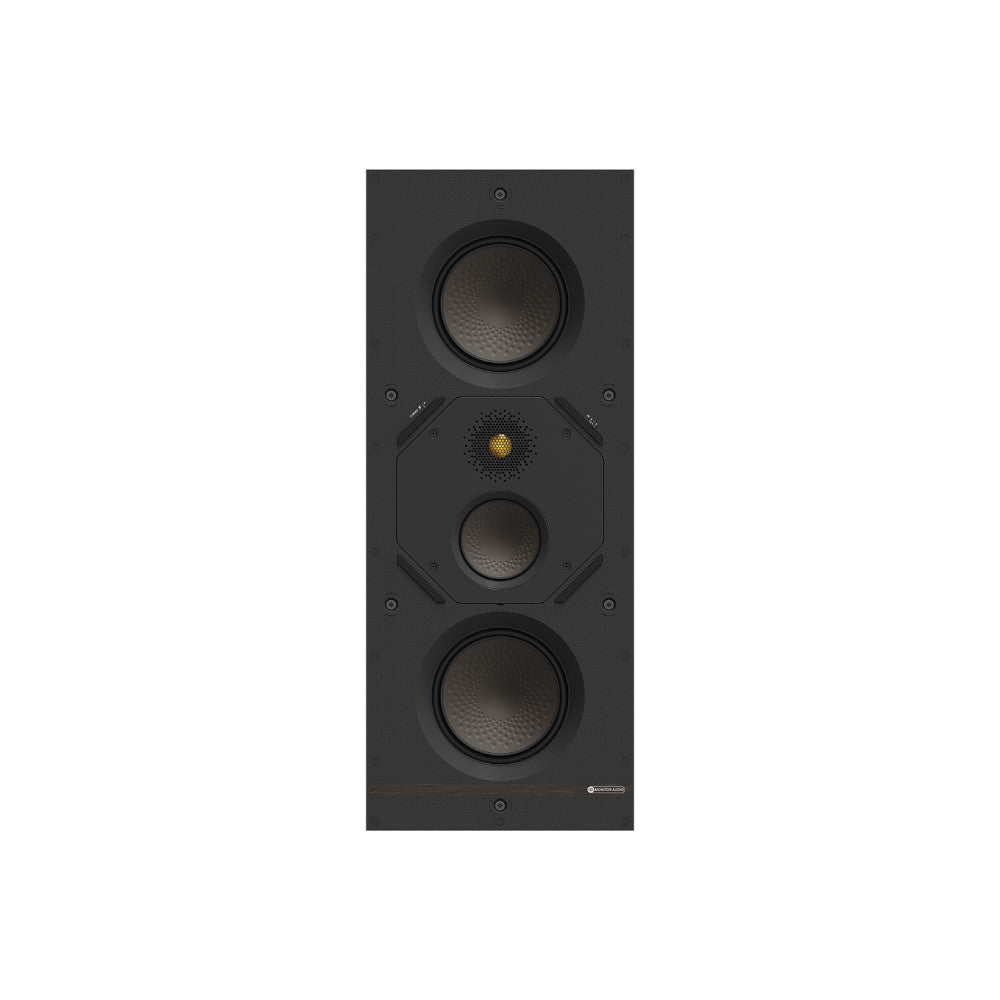

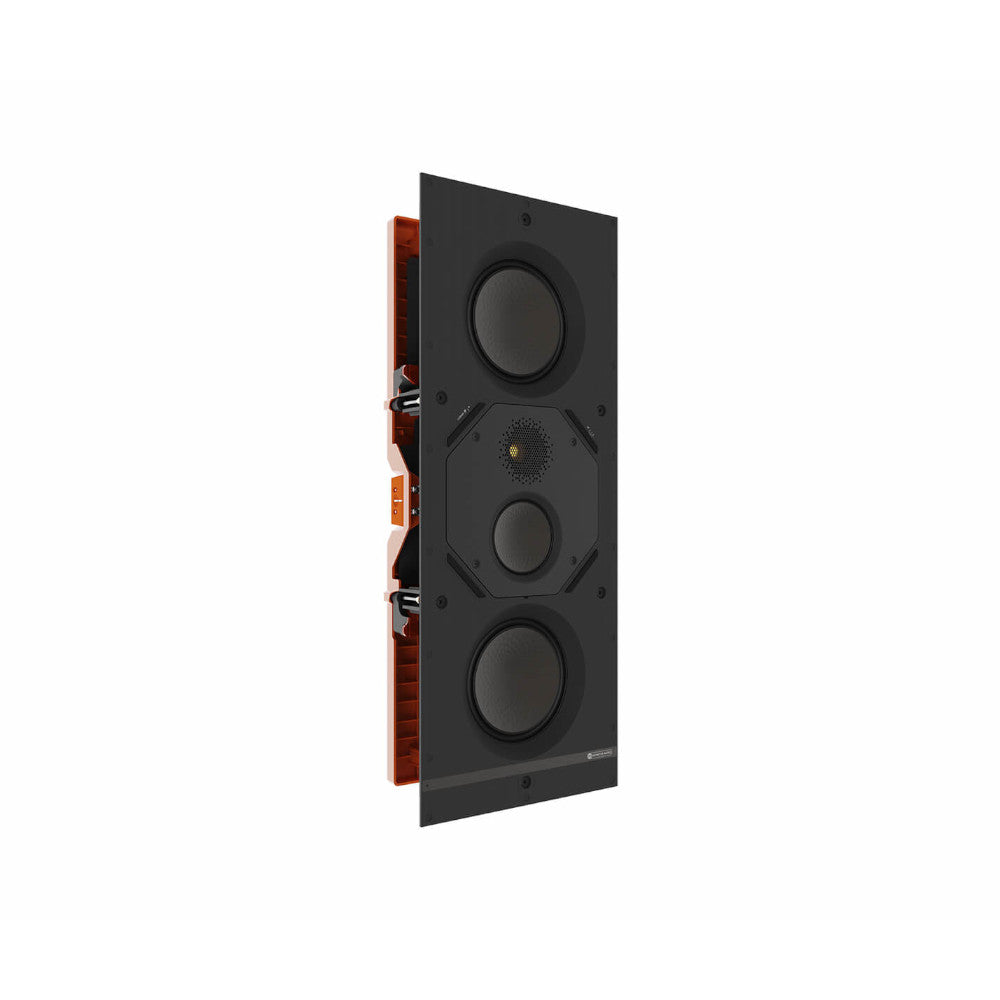

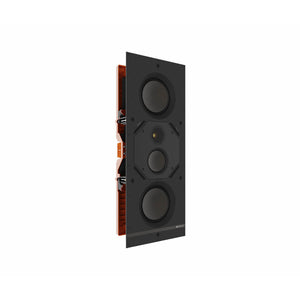

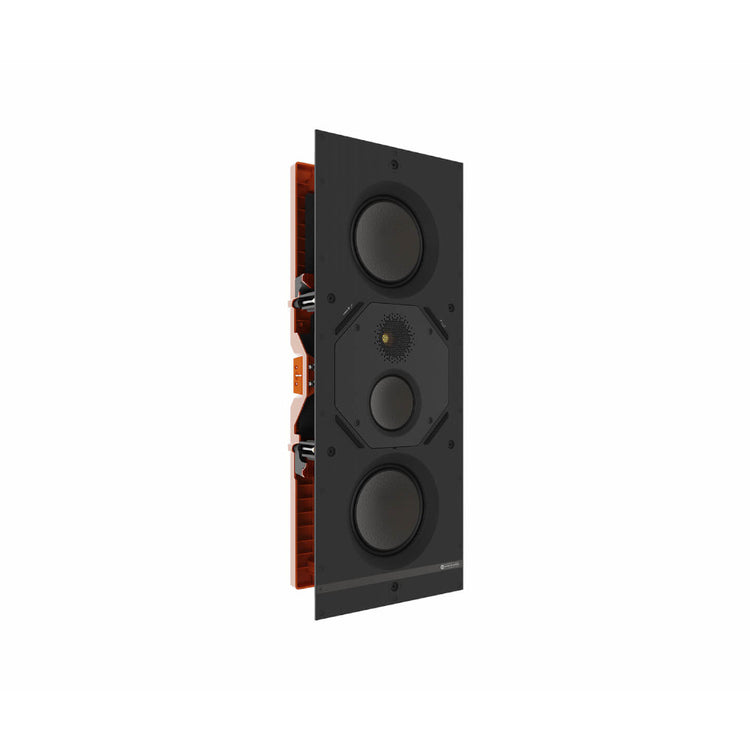

This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features:
- Ideal for installations where pristine acoustic performance is required
- Three-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 3" (76 mm) RST II mid-range driver
- 2 x 5" (127 mm) RST II bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 40 Hz – 35 kHz |
| Nominal Impedance | 6 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 4.8 Ohm @ 1 kHz (4.1 Ohm @ 15 kHz) |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 87 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 116 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 120 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 45 – 180 W |
| Drive Unit Complement | 2 x 5" (127 mm) RST II Bass Driver, 1 x 3" (76 mm) RST II Midrange Driver, 1 x 1" (25 mm) C-CAM Tweeter |
| Crossover Frequency | LF/HF: 650 kHz, MF/HF: 3 kHz |
| Mounting Depth | 85 mm (3 3/8") |
| Cut-Out (L x W) | 527 x 198 mm (20 3/4" x 7 13/16") |
| External Dimensions (Including Grille (H x W x D)) | 540 x 211 x 90 mm (2 11/4" x 8 5/16" x 3 9/16") |
| Weight (Each) | 3.9 kg (8 lb 9 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte Black, Orange & Bronze |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| HF Switch | -/0/+ |
Monitor Audio
by
Monitor Audio

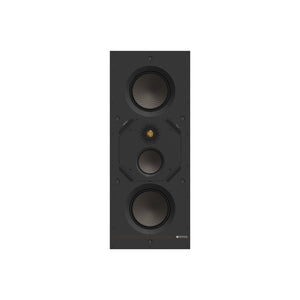

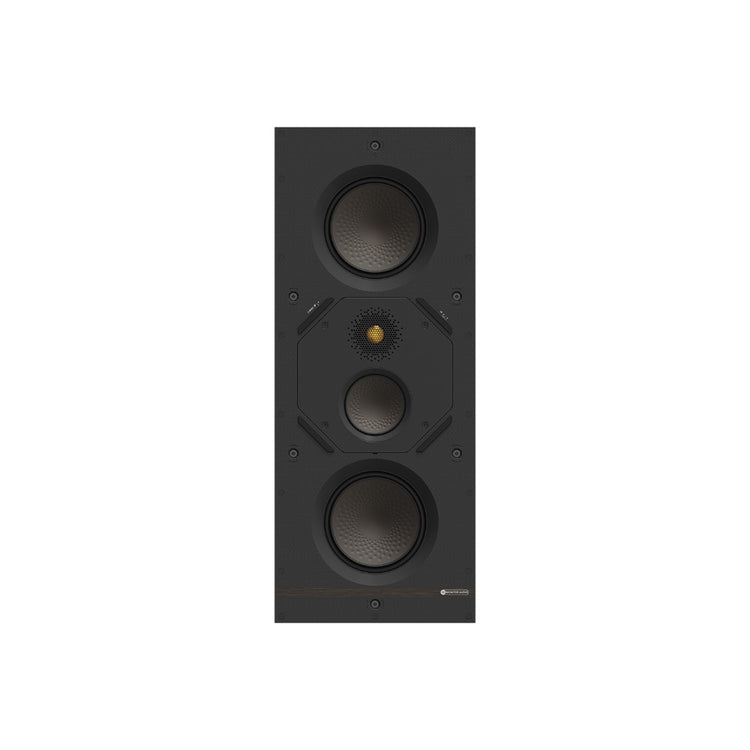

Monitor Audio Creator Series W2M In Wall Speaker
Single
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
$999.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The Monitor Audio Creator Series W2M Tier 2 in-wall loudspeaker is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
