British High-Fidelity Architectural Sound Redefined

The in-wall loudspeaker is a versatile, high-performance tool that can add localised quality to any custom installation. The Creator Series in-wall models allow you to create areas of high-performance sound, often to create a dedicated home cinema space, that rival that of stand-alone loudspeakers while remaining virtually invisible. All the models in the range are the same size, but audio performance and innovative features increase as you move up the tiers.

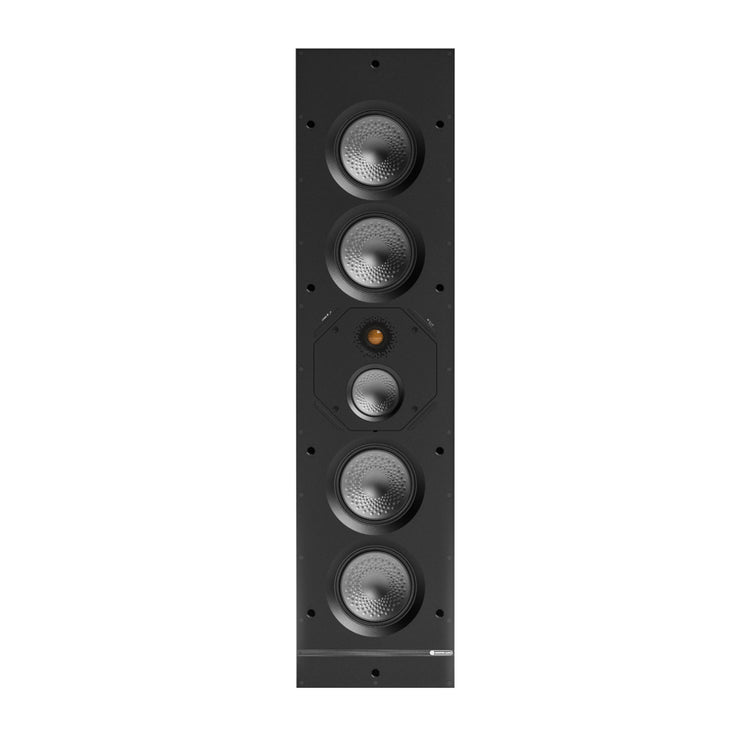

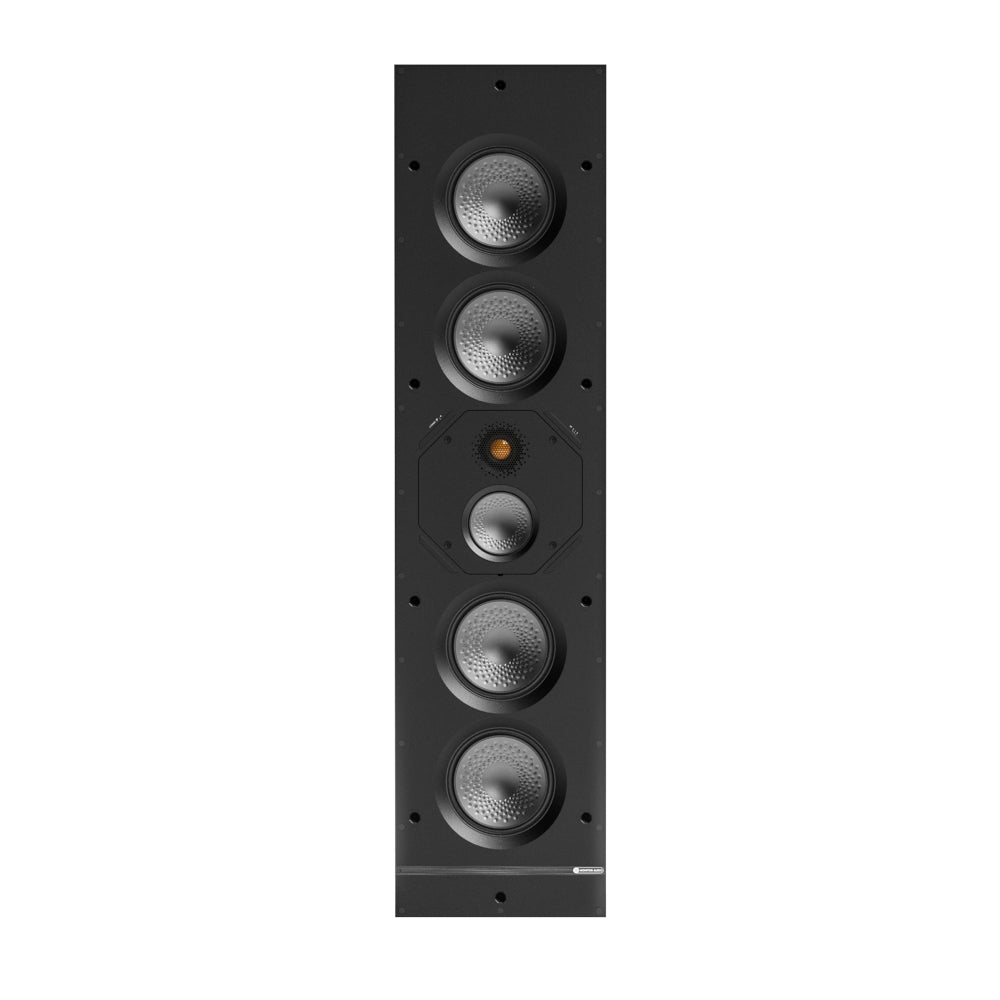

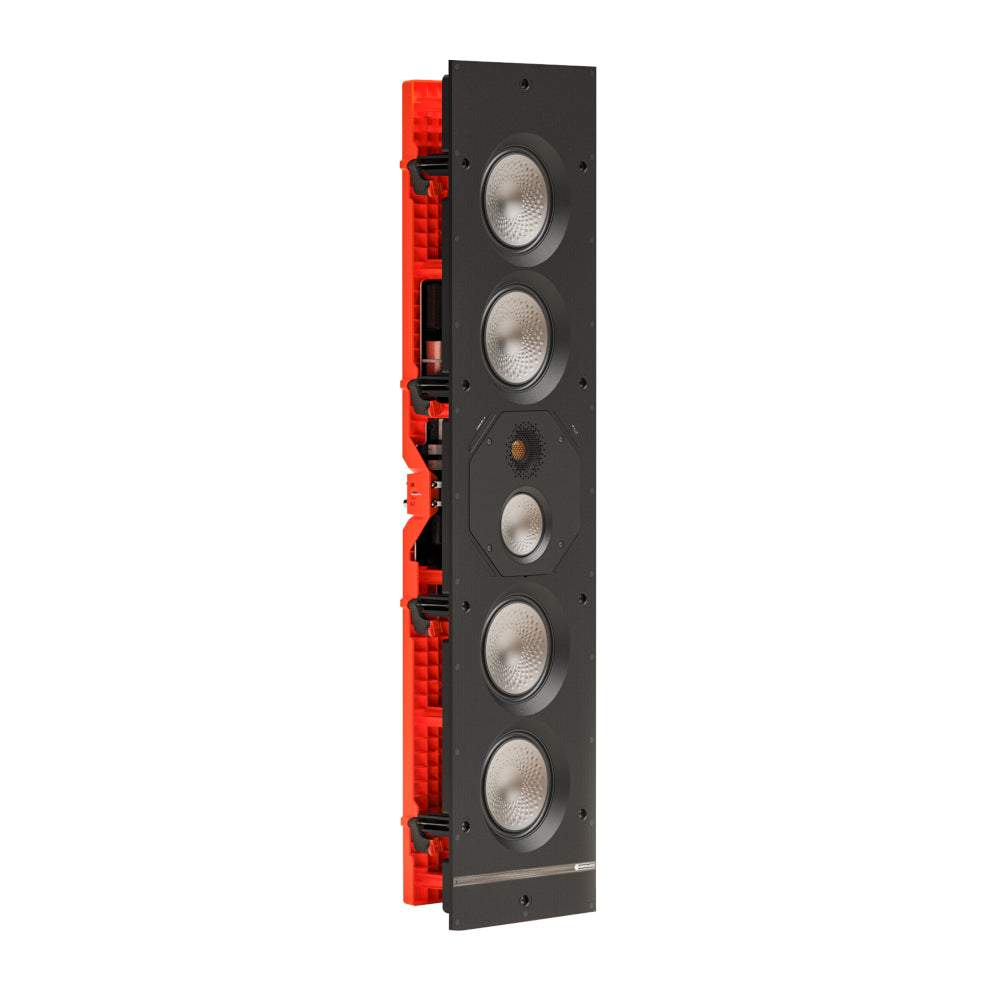

This large-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring four RST II bass drivers, an RST II midrange driver, and a C-CAM tweeter. This combination of clear and lifelike high-fidelity sound is of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.

Features at a glance:

  • Ideal for installations where pristine acoustic performance is required
  • Three-way design
  • 1 x 1" C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 3" RST II midrange driver
  • 4 x 5" RST II bass drivers
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment
System Format

3–Way

Frequency Response, Installed (-6dB)

38 Hz – 35 kHz​

Sensitivity (2.83Vrms@1m, Installed)

88 dB

Nominal Impedance

4 Ohms

Minimum Impedance (20Hz to 20kHz)

4.2 Ohms @ 1.1 kHz

Maximum Peak SPL (AES75, Z-weighted)

117 dB

Continuous Power Handling (CTA 426-B)

225 W

Recommended Amplifier Power (RMS, Music Signal)

110 – 450 W into 4 ohms
50 – 225 W into 8 ohms

Crossover Frequency

LF/HF: 700 kHz
MF/HF: 3 kHz

Drive Unit Complement

4 x 5" (127 mm) RST II bass driver
1 x 3" (76 mm) RST II midrange driver
1 x 1" (25 mm) C-CAM tweeter

Mounting Depth

85 mm (33/8")

Cutout L x W

880 x 202 mm (345/8 x 715/16")

Pre-Construction Bracket

WL-B

External Dimensions with all accessories fitted (H x W x D)

909 x 231 x 93 mm (3513/16 x 91/16 x 35/8")

Weight (each)

With grille 7.77 kg (17 lb 2 oz)
Without grille 6.92 kg (15 lb 4 oz)

Cabinet Finish

Matte black & Orange & Bronze

Sold As

Single Unit

Warranty

Lifetime

Monitor Audio by Monitor Audio

Monitor Audio Creator Series W2L In Wall Speaker

Single
Regular price
$2,069.00
Sale price
$2,069.00
Regular price
$2,299.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Monitor Audio W2L In Wall Speaker

This large-sized Tier 2 in-wall loudspeaker is a three-way model featuring four RST II bass drivers, an RST II midrange driver, and a C-CAM tweeter. It has a cut-out dimension of 880 x 202 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for installations where pristine acoustic performance is required  | Three-way design  |  1 x 1" C-CAM tweeter with UD Waveguide II for lifelike sound  |  1 x 3" RST II midrange driver  |  4 x 5" RST II bass drivers  |  Quik-Link speaker cable connector for quicker installation  |  Tri-Grip II for easy and secure fitment
