British High-Fidelity Architectural Sound Redefined

The in-wall loudspeaker is a versatile, high-performance tool that can add localised quality to any custom installation. The Creator Series in-wall models allow you to create areas of high-performance sound, often to create a dedicated home cinema space, that rival that of stand-alone loudspeakers while remaining virtually invisible. All the models in the range are the same size, but audio performance and innovative features increase as you move up the tiers.

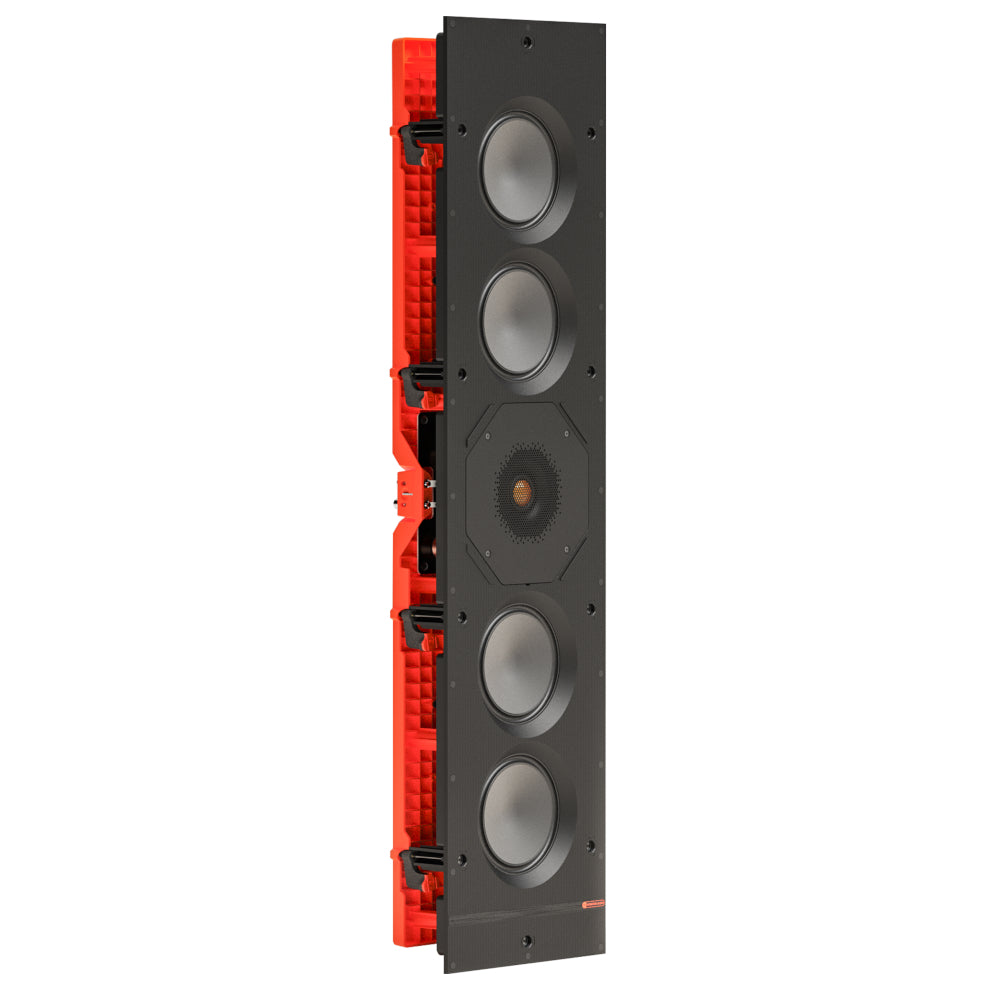

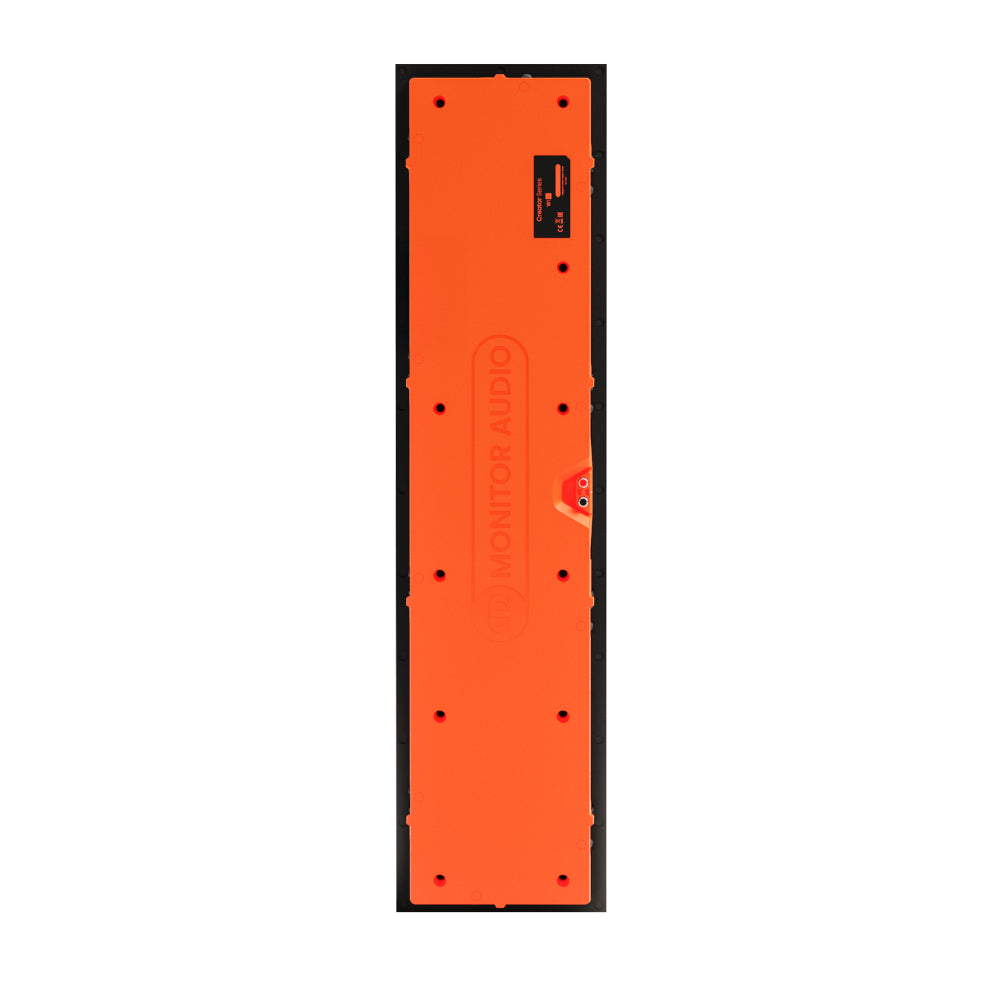

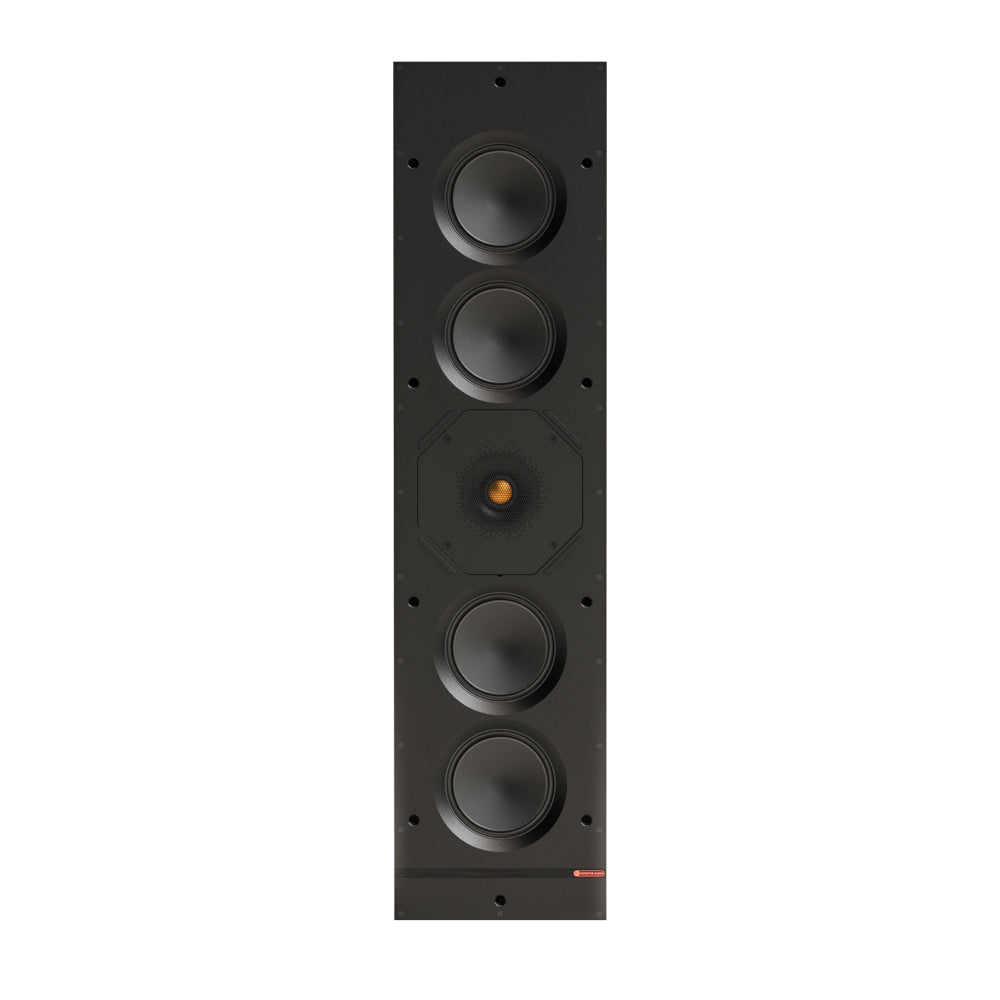

This large-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance are required. It is a two-way model featuring four C-CAM mid-bass drivers and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.

Features at a glance:

  • Ideal for cost-effective installations
  • Two-way design
  • 1 x 1" C-CAM tweeter with UD Waveguide
  • 4 x 5" C-CAM mid-bass driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

2–Way

Frequency Response, Installed (-6dB)

38 Hz – 30 kHz​

Sensitivity (2.83Vrms@1m, Installed)

88 dB

Nominal Impedance

6 Ohms

Minimum Impedance (20Hz to 20kHz)

5.2 Ohms @ 13 kHz

Maximum Peak SPL (AES75, Z-weighted)

114 dB

Continuous Power Handling (CTA 426-B)

100 W

Recommended Amplifier Power​ (RMS, Music Signal)

80 – 300 W into 4 Ohms
30 – 150 W into 8 Ohms

Crossover Frequency

LF/HF: 2.7 kHz

Drive Unit Complement

4 x 5" (127 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter

Mounting Depth

85 mm (33/8")

Cutout L x W

880 x 202 mm (345/8 x 715/16")

Pre-Construction Bracket

WL-B

External Dimensions with all accessories fitted (H x W x D)

909 x 231 x 93 mm (3513/16 x 91/16 x 35/8")

Weight (each)

With grille 6.69 kg
Without grille 5.84 kg

Cabinet Finish

Matte black & Orange​

Sold As

Single Unit

Warranty

Lifetime

Monitor Audio by Monitor Audio

Monitor Audio Creator Series W1L In Wall Speaker

Single
Regular price
$1,349.00
Sale price
$1,349.00
Regular price
$1,499.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Monitor Audio W1L In Wall Speaker

This large-sized Tier 1 in-wall loudspeaker is a two-way model featuring four C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 880 x 202 mm and a revolutionary Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for cost-effective installations  |  Two-way design  |  1 x 1" C-CAM tweeter with UD Waveguide  I  4 x 5" C-CAM mid-bass driver  |  Quik-Link speaker cable connector for quicker installation  |  Tri-Grip II for easy and secure fitment
