Key Features

  • 12" high-excursion, UltraRigid Polypropylene (URP) cone in a stamped steel basket
  • Magnitude® MT-700 Amplifier with 350w RMS (700w peak)
  • Frequency response 24-200 Hz ±3 dB (Anechoic via LFE input)
  • Down-firing driver in a Sealed MDF cabinet, resulting in a clean, grille-less aesthetic
  • Line Level: Left, Right/LFE inputs
  • Optional Wireless Input WSK-1 Kit (Sold Separately)
  • Dimensions: (HxWxD) 406mm x 358mm x 358mm Weight: 13.2 kg
  • Finish: Brushed black vinyl with high-gloss top



Product Overview

Martin Logan Dynamo Foundation Subwoofers are carefully engineered for superior audio quality, integrating advanced technology with sophisticated design to help provide incredible home entertainment experiences, at an exceptional value.
At the core of Dynamo Foundation subwoofers is a high-resolution 200MHz DSP engine with 56-bit processing, power typically only found in high-end audio systems. This advanced processing controls the powerful Magnitude® amplifier onboard, ensuring each note and beat is reproduced with remarkable clarity and precision. Bid farewell to distortion and artifacts with Martin Logan's rigorous engineering guaranteeing pristine sound, immersing you fully in your favourite content.
Crafted for both performance and aesthetics, Dynamo Foundation subwoofers feature custom-designed ultra-rigid polypropylene woofers tuned to perfection. These proprietary drivers deliver robust, deep bass with minimal distortion, even at high volumes. Whether enhancing your living room audio or setting up a dedicated home theatre, the compact yet powerful design seamlessly integrates into any decor.
For added convenience, these subwoofers offer versatile connectivity options including an LFE input for easy home theatre setup and Stereo RCA inputs for compatibility with a variety of audio equipment. Consider the optional WSK-1 Wireless Subwoofer Kit (sold separately) for hassle-free installation flexibility.

Specifications

Specifications are subject to change without notice

Digital Signal Processing: High-resolution 200MHz DSP engine with 56-bit processing

Frequency Response: 24–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer: 12” (30.5cm) high-excursion, Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket

Cabinet: Sealed MDF cabinet with reinforced MDF woofer baffle

Amplifier: Magnitude® MT-700 Amplifier with 700W peak (350W continuous)

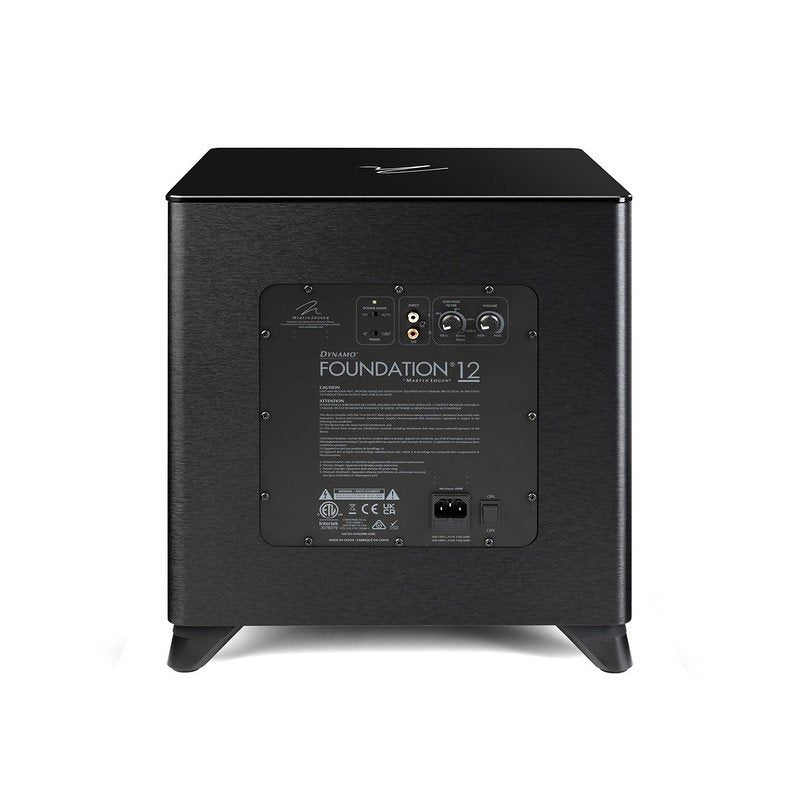

Controls (Backplate)

Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°

Wireless Inputs: WSK-1 Kit Sold Separately

Inputs: Line Level: Left, Right/LFE

Power Draw

Max: 350W
Standby: 0.5W

Feet: Non-Slip

Weight: 29.1 lbs. (13.2 kg)

Dimensions (H x W x D): 16" x 14" x 14" (40.6cm x 35.8cm x 35.8cm)

Finish: Brushed black vinyl with high-gloss top

Martin Logan by Martin Logan

Martin Logan Foundation 12 Subwoofer

Regular price
$1,499.00
Sale price
$1,499.00
Regular price
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

With its larger 12” woofer and more powerful amplifier, Dynamo™ Foundation® 12 offers even more output and low frequency extension than its smaller sibling the Dynamo Foundation 10. Thanks to its enhanced capabilities, the Dynamo Foundation 12 is the ideal choice for those with larger rooms or anyone desiring high output, and low distortion bass from a décor friendly design. With its powerful 12” woofer, strong amplification, and precise DSP Engine encased in a solid yet sleek cabinet, the Dynamo Foundation 12 is perfectly suited to keep up with the speed of MartinLogan loudspeakers and ready to deliver in any system.

Read more
