Key Features

  • 12" high-excursion, anodised-aluminium cone in a stamped steel basket
  • Magnitude® MT-1.6kW Amplifier with 800w RMS (1,600w peak)
  • Frequency response 22-200 Hz ±3 dB (Anechoic via LFE input)
  • Forward firing driver in a Precision-crafted, sealed MDF enclosure featuring a robust 1" thick MDF woofer baffle
  • Line Level: L+R, & LFE XLR: LFE Speaker Level: L+R (requires banana plugs)
  • Wireless Input Integrated Wireless Receiver, Wireless Transmitter Included
  • Anthem Room Correction Compatible: Requires ARC Mic a PC or Mac (sold separately)
  • Dimensions: (HxWxD) 424mm x 399mm x 399mm Weight: 27.9 kg
  • Finish: Gloss Black



Product Overview

Our next-generation Dynamo subwoofers pack an incredible feature list and impressive power into a stylish, compact, room-friendly package. With extensive technology, including built-in wireless signal connection, anti-vibration feet, and easy-to-use app control, Dynamo series subwoofers not only look and sound incredible but are also extremely user-friendly.
Getting the best sound from your subwoofer means placing it just right, but running cables can be a challenge. Our Dynamo subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making setup easy and clutter-free. Enjoy top-notch sound with lossless transmission and low latency.
Dynamo's anti-vibration feet improve bass by reducing floor and wall vibrations, eliminating rattles, and boosting clarity. They also reduce noise transfer to other rooms, perfect for any flooring with both hard surface and carpet options included.
Control your subwoofer effortlessly with our app for iOS and Android. Adjust settings in real time and choose from 3 modes -- Movie, Music, or Night -- all from the comfort of your seat.
Backing up all the technology and features is the heart of the subwoofer, the Vojtko DSP engine. Featuring a 500MHz DSP with 64bit processing, the Vojtko DSP engine commands all aspects of subwoofer performance in real time. Best-in-class computing power controls the advanced technology onboard, as well as the powerful Magnitude® amplification, providing both high tech functionality and audibly transparent processing for incredible, distortion free impact and musicality.

Specifications

Specifications are subject to change without notice

Digital Signal Processing: Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing

Frequency Response: 22–120 Hz ±3 dB (Anechoic via LFE input)

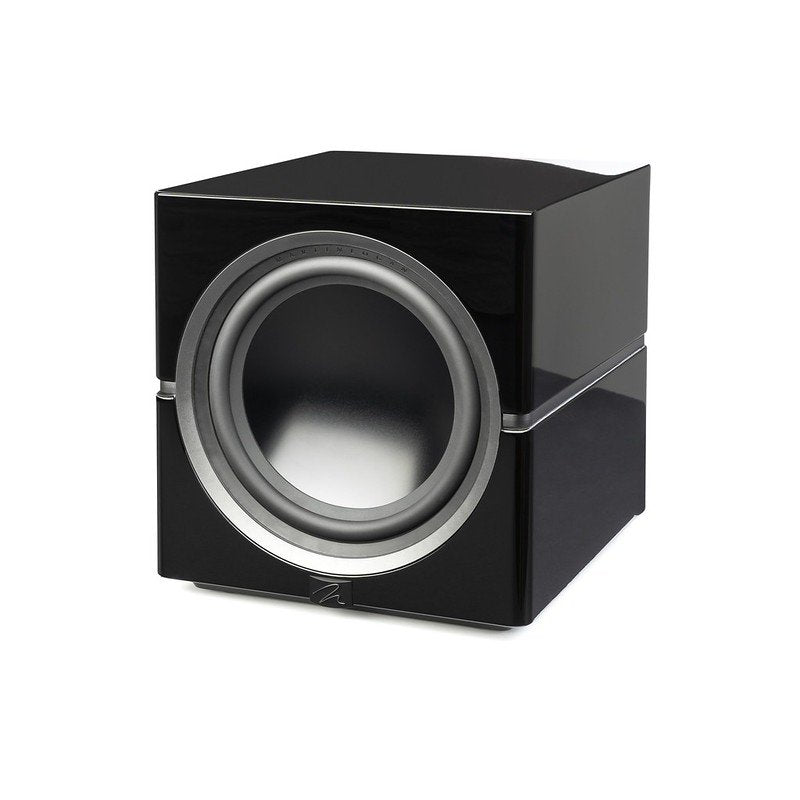

Low Frequency Transducer: 12” (25.4cm) high-excursion, anodized-aluminium cone in a stamped steel basket

Cabinet: Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle

Amplifier: Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous)

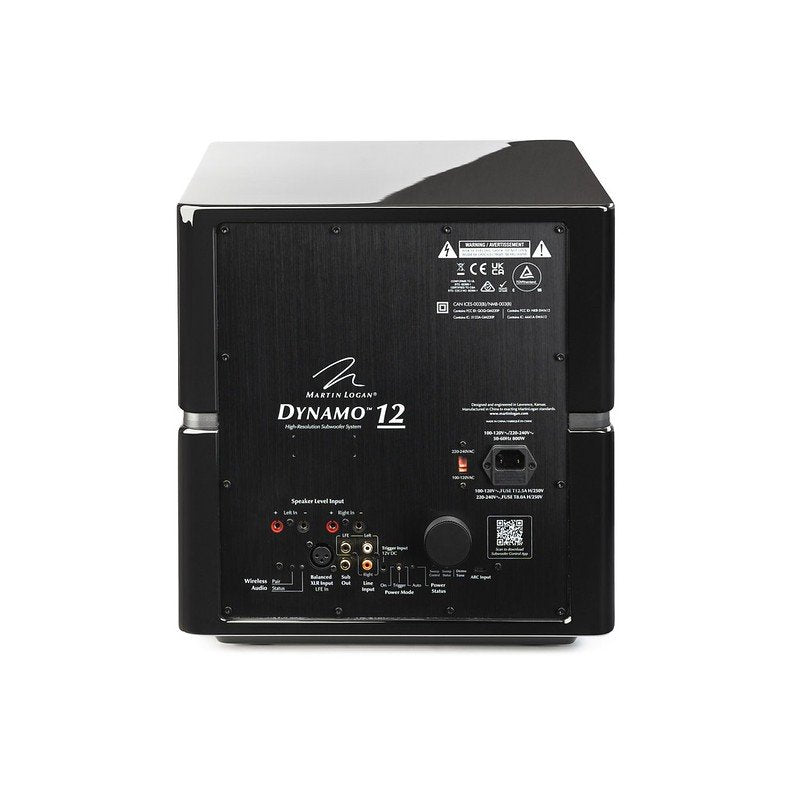

Controls (Backplate)

Level: Interactive LED Backlit Knob

Tone Sweep: Sweep Start and Pause (with status light)

Power Mode: On, 12v Trigger, Auto

Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)

Controls (via Bluetooth)

Level: -40 to 12dB (Min-Max)

Low-Pass Filter (Frequency): 35–120Hz (1° Increments)

Low-Pass Filter (Order): Bypass, Third, Fourth

Phase: 0–180° (1° Increments)

Phase (Polarity): Normal, Inverted

Preset Listening Modes: Movie, Music, Night

20–30Hz Level: ±10dB

Anthem Room Correction (ARC Genesis): On, Off

Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Wireless Inputs

Integrated Wireless Receiver, Wireless Transmitter Included

Inputs

Line Level: Left, Right, and LFE XLR: LFE

Speaker Level: Left and Right (requires banana plugs)

Power Draw

Max: 800W

Standby (Wireless Disabled): 0.5W

Standby (Wireless Enabled): <2W

*Transmitter and Subwoofer combined

Feet: Integrated Anti-Vibration Feet (carpet spikes included)

Weight: 61.5 lbs (27.9 kg)

Dimensions (H x W x D): 16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm)

Finish: Gloss Black

Martin Logan by Martin Logan

Martin Logan Dynamo 12 Subwoofer

Regular price
$3,299.00
Sale price
$3,299.00
Regular price
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Seamlessly Integrating High-Performance Audio with Elegant Design

Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design. As with all MartinLogan subwoofers, the Dynamo Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.
