Features

AirPlay 2: Yes

Amazon Prime Music* / Pandora*: Yes / No

Asynchronous mode rear USB-B: Yes

Bit-perfect transmission: Yes

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC:
Yes / Yes / Yes / Yes / Yes / No

CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta
data: No / Yes / Yes / Yes / No

Copper Plated Chassis: No

Customised Components: Yes

DAC operation mode: USB B type / Coax / Optical: Yes / Yes / Yes

Data Disc Compatibility: DSD / WAV / ALAC: Yes / Yes / Yes

Digital out off / Audio EX Mode: Yes / No

Extra metal plate for chassis strengthing: Yes (1.5mm)

HDAM version: HDAM+HDAM SA3

Headphone: Standard / Buffer / Current feedback: No / No / Yes (HDAM SA2)

HEOS Multiroom and Streaming: Yes

High Grade Audio Components: Yes

Internet radio: tunein

Jitter reducer: Yes

Network Audio Streaming: Yes

Power Transformer: Toroidal / El: Yes / No

Roon Tested: Yes

Signal isolator for DAC Mode operation: Yes

Spotify Connect* / Tidal* / Deezer* / others *: Yes / Yes / Yes / Yes

Symmetric circuit layout: Yes

USB input for memory stick: Yes

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2: Yes / Yes / Yes

Voice Control - Google Assist / Apple Siri: Yes / Yes

Voice Control - Microphone built-in: No

Voice Control - Works with Amazon Alexa: Yes

General

Auto Power off: Yes

Available Colours: Gold / Silver / Black / Silver-Gold: No / No / Yes / Yes

Carton Maximum Dimensions (W x D x H) in mm: 534 x 522 x 255

Carton Weight (inc. product) in kg: 16.2

Detachable Power Cable: Yes

Maximum Dimensions (W x D x H) in mm: 443 x 424 x 130

Metal Front Panel: Yes

Power Consumption in W: 48

Remote Control: RC002PMND

Standby Consumption in W: 0.4

Weight in kg: 13.5

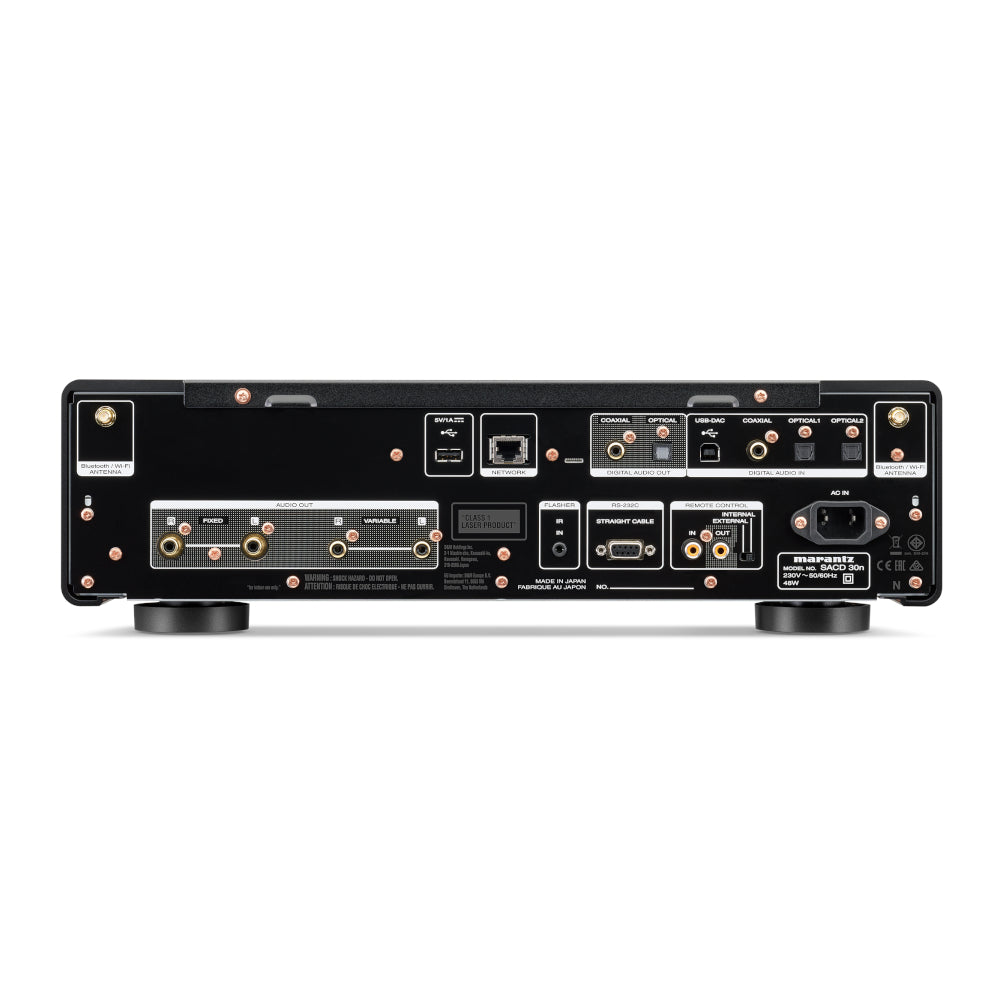

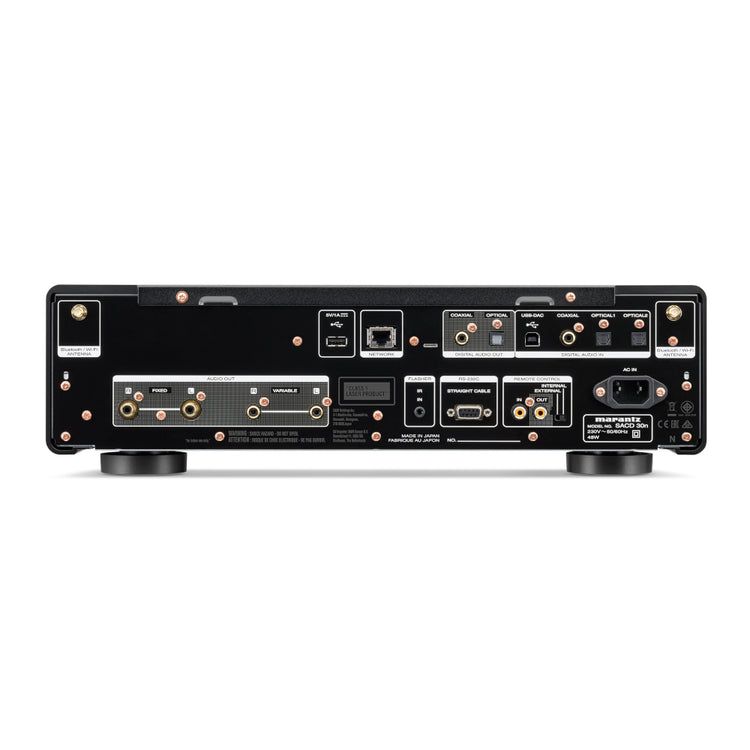

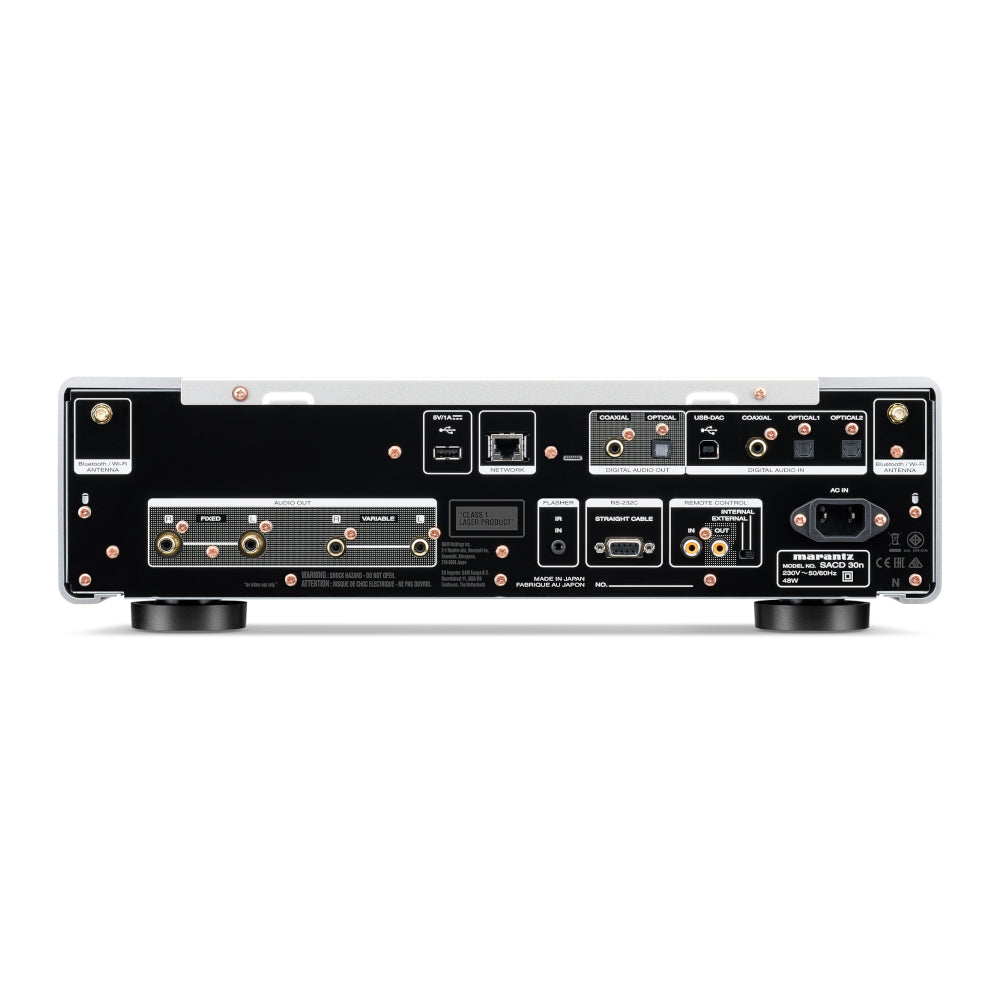

Inputs Outputs

Analogue Out (Cinch): 1

Balanced Out: No

D-Bus: Yes

Digital Coaxial In / Out: 2 / 1

Digital Optical In / Out: 1 / 1

Ethernet port: Yes

Flasher Input: Yes

Gold Plated Cinch: Yes

Headphone Out: Yes

Headphone Volume Control: Yes

IP control: Yes

RS232: Yes

Sample Rate digital In: 192 kHz / 24-bit

USB Audio (front): Yes

USB type B input for PC (rear) Sample Rate USB type B In: Yes up to DSD11.2

Variable Out (Cinch): 1

Network

App control AMP/CD via Network Player: Yes

Bluetooth on / off mode: Yes

DSD Audio Streaming: up to DSD5.6

Gapless Playback: Yes (FLAC, WAV, DSD)

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV
192/24: Yes / Yes / Yes / Yes

Lossy formats MP3 / WMA / AAC: Yes / Yes / Yes

Remote APP: iDevice / Android: Yes / Yes

Wi-Fi on / off mode: Yes

Wi-Fi: 2.4GHz, 5GHz

Wired Lan: Yes

Others

Display: Dimmer / Off: Yes / Yes

Marantz Musical Mastering: Yes

Marantz Musical Mastering Conversion: Yes

Marantz Musical Mastering Stream: Yes

Selectable filter: CD / SA-CD / DAC-Mode: Yes/ No / Yes (PCM only)

Separated rectifier circuit for analogue and digital circuitry: Yes

Playback

Program Play (CD / SA-CD): 25 / No

Random Play: Yes

Repeat: Yes

Specifications

Channel separation: No

Channel Separation (SA): No

D/A Conversion: MMM

DAC IC: MMM

Digital Filter: MMM

Dynamic Range: 98 dB

Dynamic Range (SA): 109dB

Frequency response: 2 Hz - 20 kHz

Frequency Response (Cust.): 2 Hz - 20 kHz

Headphone amp: HDAM SA3

Low Pass Filter stage: HDAM

Mechanism: SACDMNo3L

Noise Shaper: MMM

Output Buffer: HDAM SA3

Signal to Noise Ratio: 104dB

Signal to Noise Ratio (SA): 112dB

Total Harmonic Distortion: 0,000015

Total Harmonic Distortion (SA): 0.0008%
