Features of the Marantz AV8805A:
• 13.2 channel processing with RCA and XLR outputs
• Dolby Atmos, DTS: X, IMAX Enhanced, AURO-3D and more multi-dimensional surround formats supported
• 8K HDMI inputs and outputs for 8K quality video from the latest Ultra-HD source devices and displays
• 8 HDMI inputs with 8K upscaling and Enhanced Audio Return Channel (eARC) HDMI support
• 8K/60Hz pass-through or upscaling along with HDR10+ and Dynamic HDR • High-Res audio streaming with FLAC, ALAC, and WAV support up to 24-bit/192-kHz, as well as DSD 2.8/5.6MHz
• HEOS Built-in for multi-room streaming, music streaming and voice control
• Built-in Wi-Fi with 2.4GHz/5GHz dual-band support (dual antenna)
• Supports all major voice control agents and streaming services
• Integrated phono input to directly connect your turntable
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound. The Marantz Sound Master meticulously tuned the AV8805A for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home. No component leaves the hands of Marantz sound masters until it passes rigorous testing. Envelop yourself with the most musical sound, for any source.
Support For The Most Advanced Object-Based Audio Formats
Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™ processing are all supported to allow you to listen to immersive, multi-dimensional audio.
Advanced 8K HDMI Connectivity With eARC Support
The Marantz AV8805A includes 8 HDMI inputs for connecting all your favourite HD and Ultra-HD sources. The dedicated 8K inputs support 8K/60Hz and 4K/120Hz pass-through capability.
Audyssey MultEQ for Simple Setup and Room Calibration Optimize your audio experience with Audyssey MultEQ, Dynamic Volume and Dynamic EQ for a seamless setup of your listening environment. With the supplied measurement microphone, MultEQ analyzes each speaker output (including the subwoofer) and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Use Audyssey Dynamic EQ to deliver clear dialogue and wide-band response even at reduced volume levels, or Audyssey Dynamic Volume to avoid shocks and normalize volume when content switches between commercials, announcements and TV programs.
HEOS Built-in With HEOS® Built-in technology, enjoy your favourite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, Pandora, TIDAL and more or your local music file libraries. With additional HEOS® Built-in components, like HEOS-capable speakers, play all your music in one room or many.
Marantz AVR Remote App The Marantz AVR Remote app for iOS and Android provides complete control over the latest Marantz network AV receivers. Use it to power on/off, adjust volume, input and settings, or switch instantly to the HEOS app.
Multichannel Surround
DTS-HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes (Update)
DTS Neo:X / DTS Neural:X No / Yes (11 Ch)
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Surround Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D Yes
360 Reality Audio / MPEG H No / No
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 13.2
Sound Enhancements
Copper Plated Chassis Yes
Power Transformer: Toroidal / EI Yes / No
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Compressed Audio Enhancer: MDAX2 Yes
Network
HEOS Multi-Room and Streaming Yes
Bluetooth Re-Transmit for Bluetooth Headphones No
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Network Audio Sharing Yes
Lossy Formats MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6 MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming Yes (AirPlay 2)
Internet Radio Yes (TuneIn)
Spotify Connect / TIDAL / Deezer / Pandora / SiriusXM Yes / Yes / Yes / Yes / Yes / Yes
Other Streaming Services Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested Yes
Compatible with Remote APP for Smart Phones Marantz 2016 AVR RemYeste
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back / Front 7 / 1
HDCP 2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analogue -> HDMI Yes
Analogue to HDMI Scaling Up to 8K 60/50
HDMI to HDMI Scaling Up to 8K 60/50
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / Yes/td>
3D Signal Pass-Through Yes
8K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes
Multi-Room / CI
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR / IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 Lines + Port Hole
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 3
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode No
Auto Power Off Yes
Sleep Timer Yes

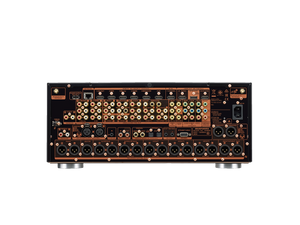

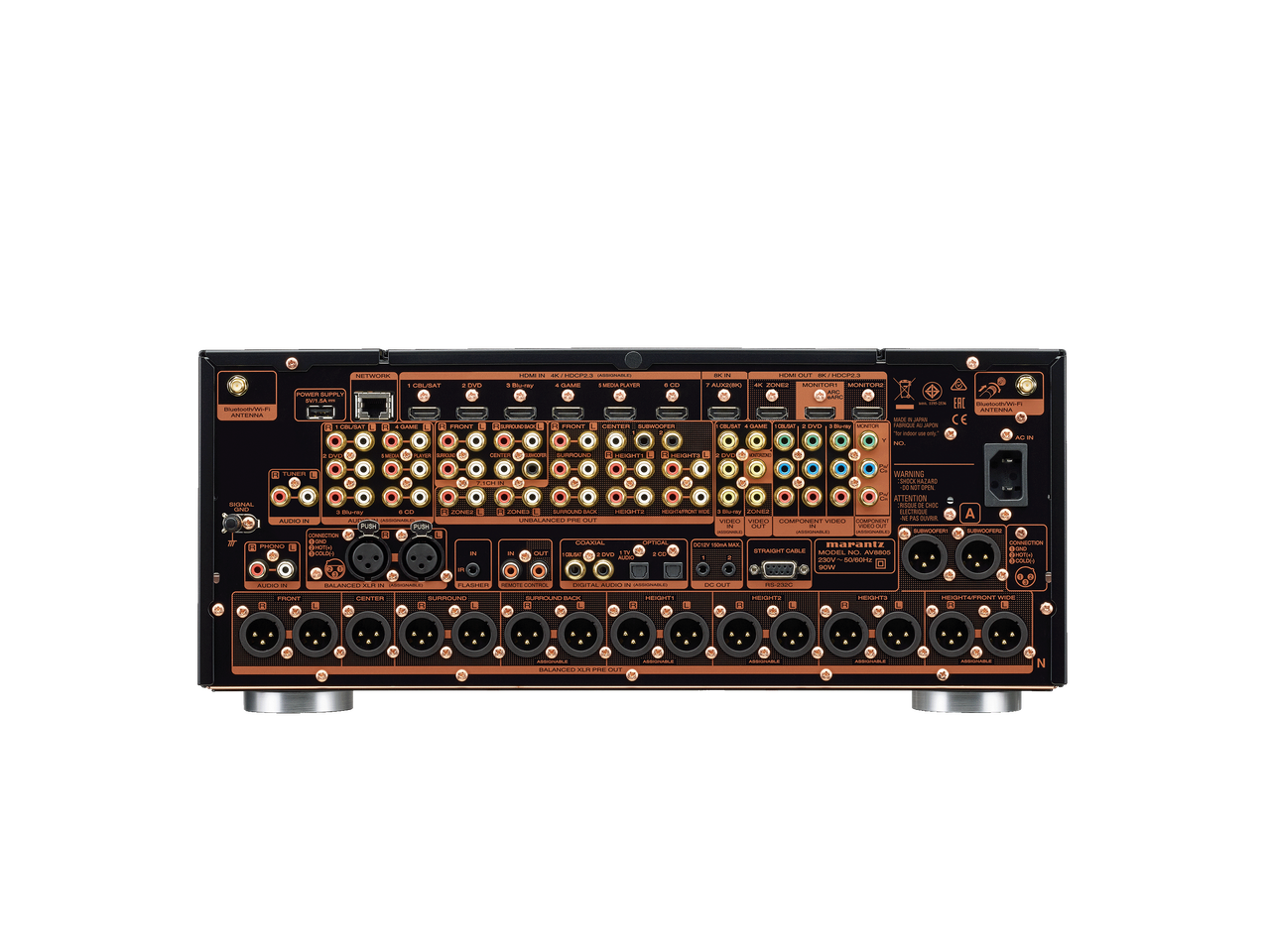

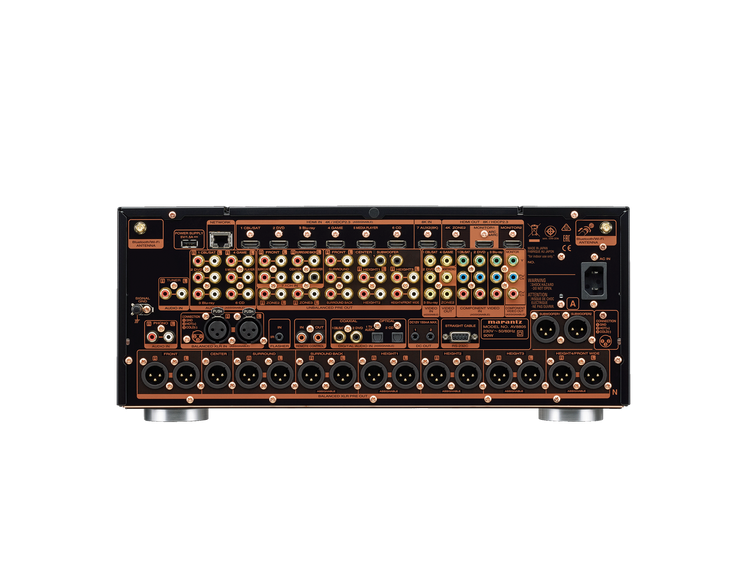

Inputs / Outputs
Composite In / Out 4+1 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-Room Video Out: Video / HDMI Yes / Yes
Analogue In / Out 6+1 (1 x XLR) / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analogue / Digital 2 / No
Multichannel Pre Out Yes (15.2 RCA & 15.2 XLR)
Subwoofer Out 2 (Independant)
7.1 Multichannel Input Yes
Speaker A / B Assignable Pre Out
Bi-Amp Drive Assignable Pre Out
Multi-Room Speaker Terminal Pre Out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / Yes / Yes
USB Audio / Made for iPod® / Made for iPhone® Yes / No / No
AM/FM Tuner Yes
General
Metal Front Panel Yes
System Remote Control RC039SR
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
Power Consumption 90 W
Standby Consumption 0.2 W
CEC Standby Consumption 0.5 W
Network Standby Consumption 3.5 W
Dimensions - Antenna: Horizontal (W x D x H) 439 x 460 x 185 mm (17.3" x 18.1" x 7.3")
Dimensions - Antenna: Vertical (W x D x H) 439 x 460 x 249 mm (17.3" x 18.1" x 9.8")
Dimensions - No Antenna (W x D x H) 439 x 450 x 185 mm (17.3" x 17.7" x 7.3")
Weight 13.79 kg (30.4 lb)
Marantz
by
Marantz

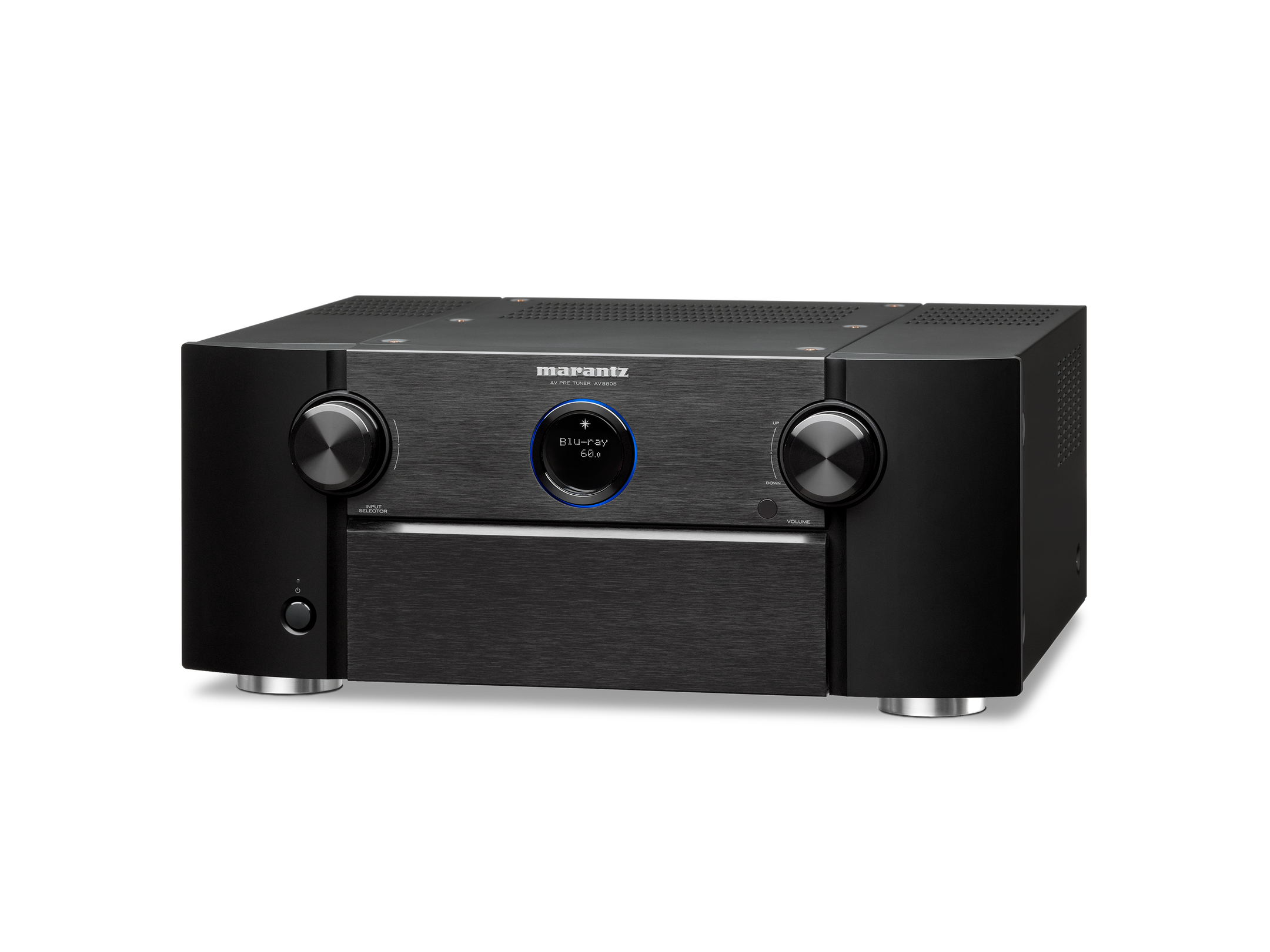

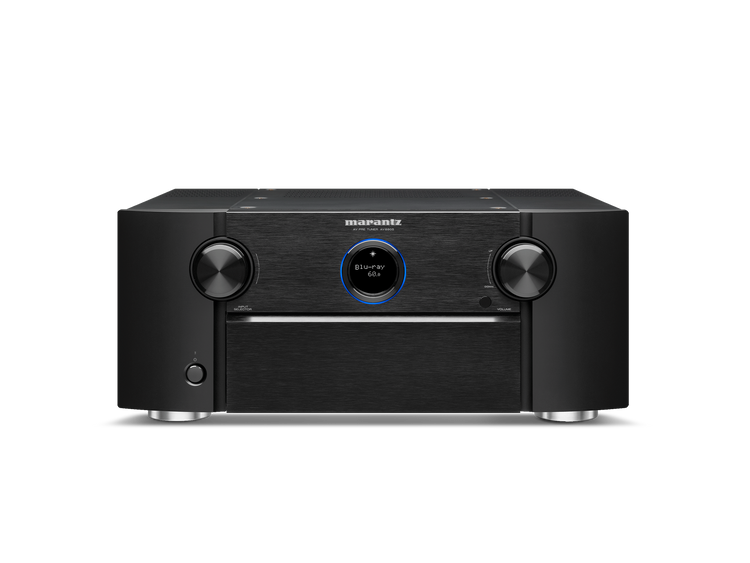

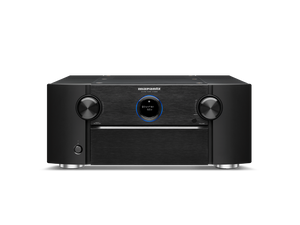

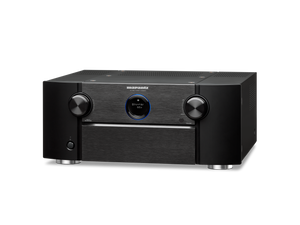

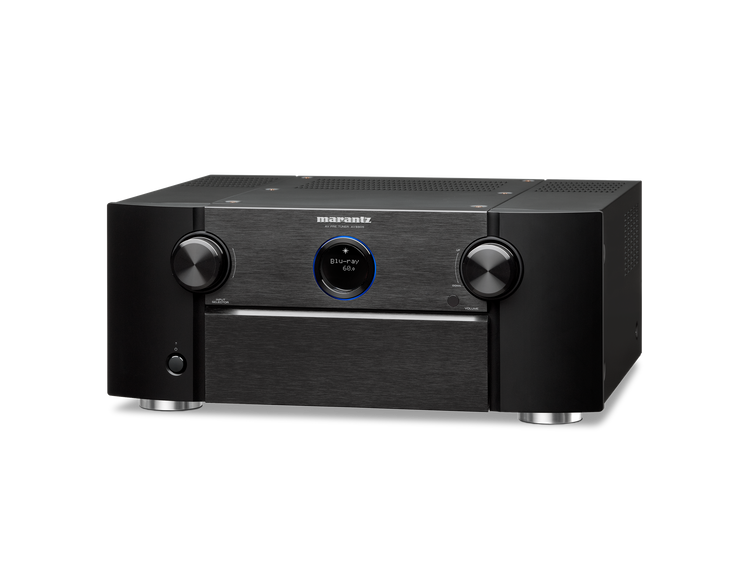

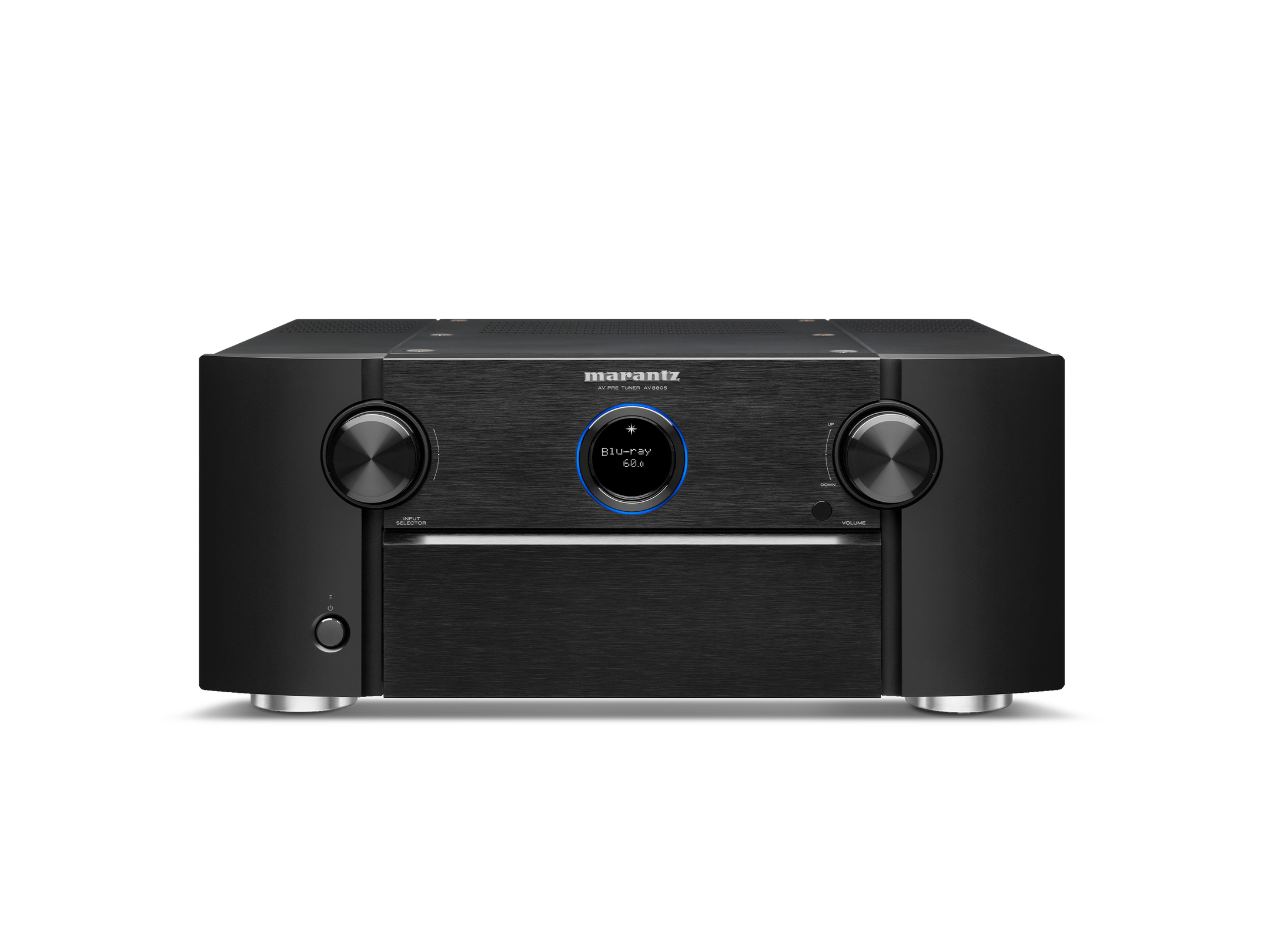

Marantz AV8805A 13.2 Channel AV Preamplifier Processor
- Regular price
- $7,000.00
- Sale price
- $7,000.00
- Regular price
-
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The versatile Marantz AV8805A pre-amplifier redefines the audiophile home cinema and music listening experience with 13.2 channel processing capability, 8K pass-through, and support for the latest in surround sound audio formats, such as Dolby Atmos®, DTS:X®, DTS:X® Pro, IMAX Enhanced®, and Auro-3D®. With the Marantz AV8805A, you get incredible fidelity and unparalleled audio precision.
