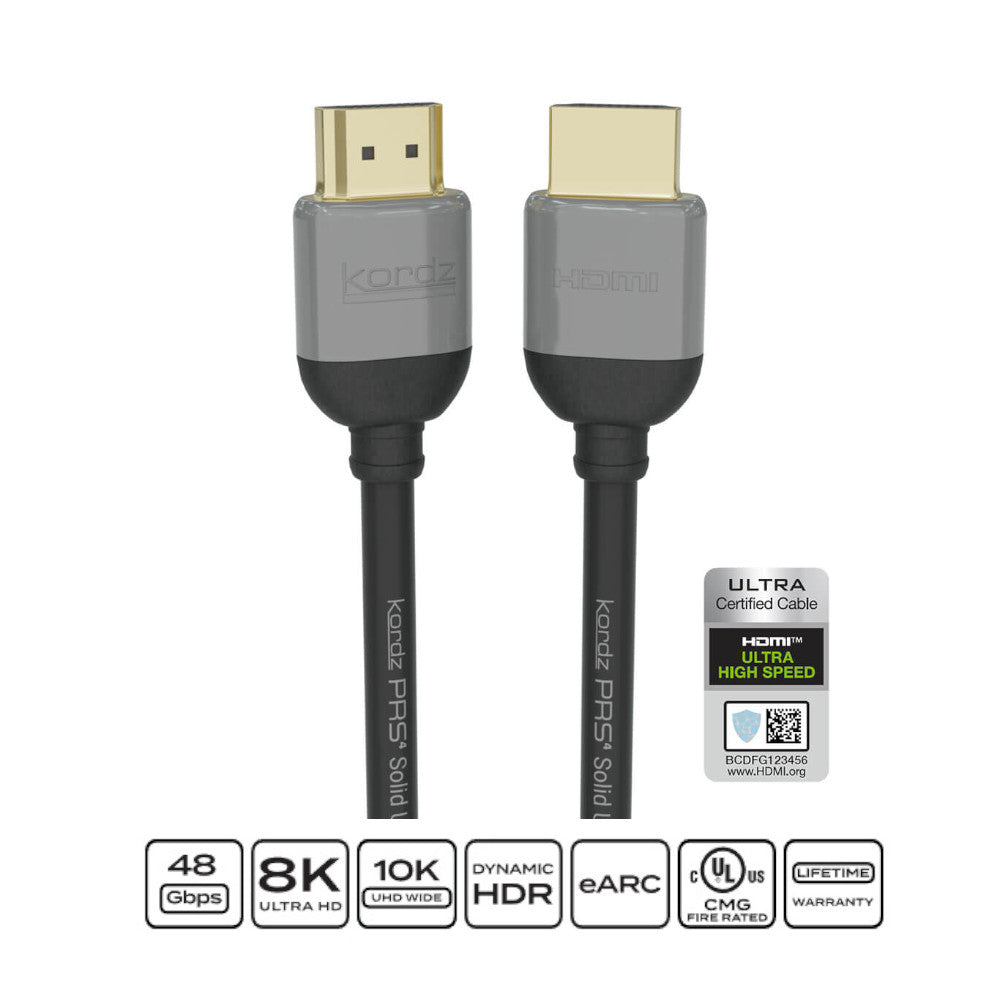

Kordz PRS4 Passive HDMI Cables are designed to meet the high demands and rigour of professional integration. The Kordz PRS4 range features cables that are compact, tough and flexible with a 2kg retention force die-cast connector. Kordz PRS4 HDMI Passive Cables support the full features and benefits of the latest HDMI technology when using 4K HFR or 8K devices.
- Ultra High Speed certified
- 48Gbps support for 8K/10K, HDR, VRR, HFR, 3D, FRL
- Each cable individually performance tested
- Robust engineering and construction with premium materials
- 15μ” gold-plated solid copper pins
- Compact connector with full internal zinc-alloy diecast housing
- Easy installation aided by the unique Kordz shark-nose dust-cap
- Convenient easy tear bulk packaging minimising waste on site
- UL CMG rating
- High contrast detailed labelling with inventory management design
- Backed by the Kordz Lifetime Guarantee
HDMI CERTIFICATION ≤ 9.0m PASSIVE
HDMI CTS Certification: Ultra High Speed HDMI® Cable
DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
Supported Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)
Supported HDMI Clock: 1200MHz
MECHANICAL
Cable Diameter: 0.5m – 3.0m: 30 AWG 6.0mm / 0.24in Ø | 4.0m – 5.0m: 26 AWG, 8.0mm | 0.31in Ø| 7.0m – 9.0m: 24 AWG 9.0mm | 0.35in Ø
Mounting Length: 0.5m – 3.0m: 30AWG, 59.0mm/2.3” |4.0m – 5.0m: 26 AWG, 66mm/2.6” |7.0m – 9.0m: 24 AWG, 110.5mm/4.4”
Cable Bend Radius: 0.5m – 3.0m: 30 AWG, 25.0mm/1.0” | 4.0m – 5.0m: 26 AWG, 32.0mm/1.3” |7.0m – 9.0m: 26 AWG, 72.0mm/2.8”
Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%
CONSTRUCTION
Primary Conductors: Solid 30-24 AWG OFC, length dependent
Insulation on TMDS: Polyethelyene / Polypropylene, length dependent
Insulation on 4C + HEAC Pairs: Polyethelyene / Polypropylene, length dependent
Shielding on TMDS Pairs: AL/Mylar, 100% Coverage with 25% Overlapping
Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
Cable Jacket: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering
HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief
Kordz
by
Kordz
Kordz PRS4 48Gbps 8K Passive HDMI Cable
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
4K UHD 48Gbps PASSIVE HDMI CABLE
Kordz PRS4 Passive HDMI Cables are designed to meet the high demands and rigour of professional integration. The Kordz PRS4 range features cables that are compact, tough and flexible with a 2kg retention force die-cast connector. Kordz PRS4 HDMI Passive Cables support the full features and benefits of the latest HDMI technology when using 4K HFR or 8K devices.
