Product outline

Supports uncompressed 48Gbps for 4K120/8K60/10K30 video transmission up to 100m

No external power required for ease of installation

Lightweight ABS connector assembly with 1kg retention force

Inner metallic shell for component protection and EMI shielding

7mm cable diameter with 20kg pull rating for durability

Individually tested and DPL Labs 48G Enhanced certified for guaranteed performance

Fire-rated to UL CMG standards for fire safety

Backed by a 2-year warranty

Eco-friendly paper and cardboard packaging

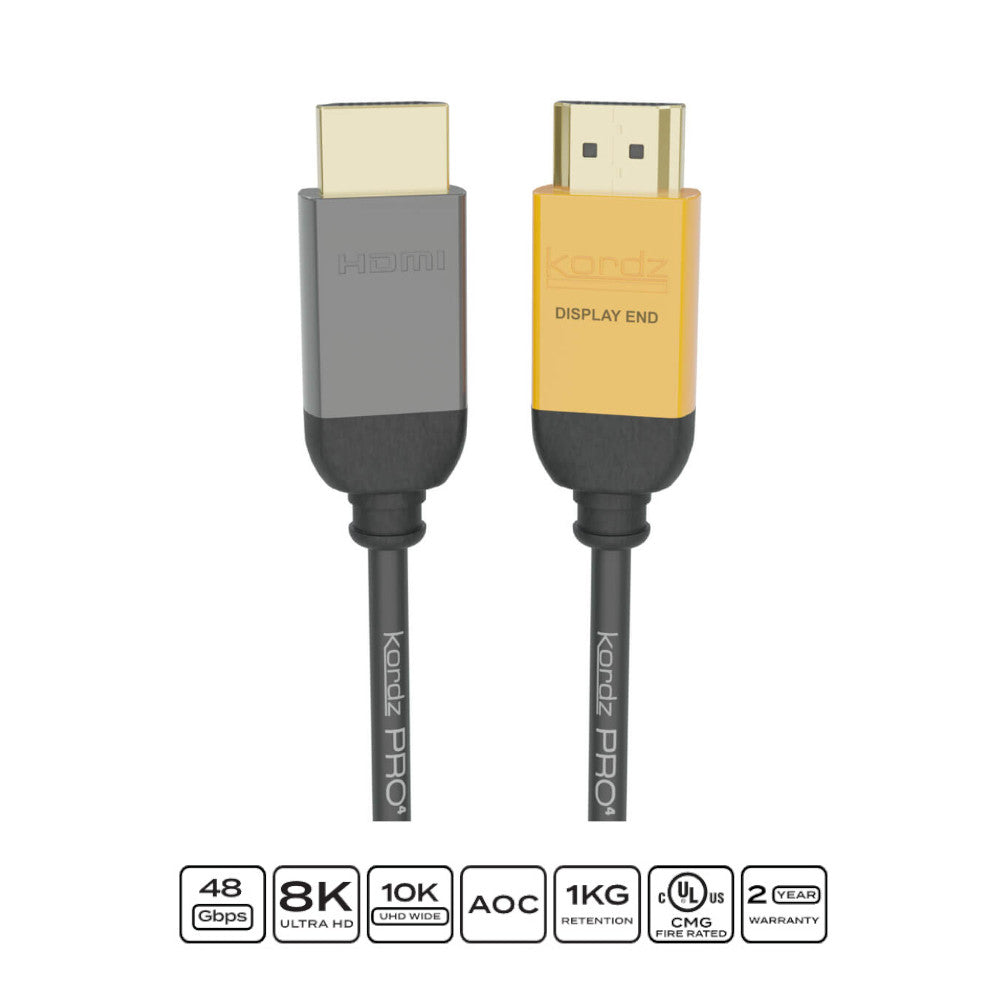

PRO4 Series 48Gbps Active Optical HDMI Cable

The Kordz PRO4 Series Active Optical HDMI Cable is the professional grade solution for uncompressed 8K/10K HDMI connectivity over ultra long distances. Supporting full 48Gbps data rates, it delivers seamless performance from 7.5m up to 100m, with minimal latency and no external power required.

Its lightweight ABS connector assembly with gold-plated HDMI connector ensure secure, reliable connections, while the robust 4.7mm cable diameter and 20kg pull-force rating provide exceptional durability. Individually tested and DPL Labs certified for true 48Gbps performance, the PRO4 Series AOC HDMI Cable is the professional’s choice for demanding AV installations.

HDMI CERTIFICATION 7.5m – 25.0m ACTIVE OPTICAL

HDMI CTS Certification: Ultra High Speed HDMI® Cable

DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg

Supported Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)

Supported HDMI Clock: 1200MHz

MECHANICAL

Cable Diameter: 4.7mm | 0.19in

Mounting Length: 7.5m-20m: 70.1mm / 2.76in | 25m-100m: 84.8mm / 3.34in

SR Length: 6.8mm

Cable Bend Radius: 37.6mm

Connector Retention Force: 20N (approx. 2kg / 4.4lbs) +10/-5%

CONSTRUCTION

FRL/TMDS Conductors : OM3 (50/125) optical fibre

Conductors: Tinned Copper, 30 – 26 AWG

Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out)
Tinned copper wire braiding(16/13/0.08mm), with nom. 85% coverage

Cable Jacket Material: UL CMG fire-rated PVC composite materials

HDMI Connector Shell: Premium gauge folded steel, 1µ” 24K Gold-plated

HDMI Connector Pins: Solid OFC, 18µ” 24K Gold-plated

Active Technology: Directional, In-shell Optical Light Engine

HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

Kordz by Kordz

Kordz PRO4 48Gbps Active Optical HDMI Cable

Regular price
$316.00
Sale price
$316.00
Regular price
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

PRO4 Series 48Gbps Active Optical HDMI Cable

The Kordz PRO4 Series Active Optical HDMI Cable is the professional grade solution for uncompressed 8K/10K HDMI connectivity over ultra long distances. Supporting full 48Gbps data rates, it delivers seamless
performance from 7.5m up to 100m, with minimal latency and no external power required.

Read more
