Product outline

  • All lengths support resolutions requiring 48Gbps transfer rates, including 4K120, 8K60 or 10K60 HDR
  • Lightweight and robust ABS connector assembly with 1kg retention force
  • UL CMG fire-rated cable (3m and above) for safe in-wall installations
  • Slim, flexible cable diameters (variable per length) ideal for professional AV installs
  • Individually tested for consistent performance that’s ‘Connectivity Assured’
  • Gold-plated connectors for optimal signal integrity and longevity
  • Lifetime warranty for peace of mind

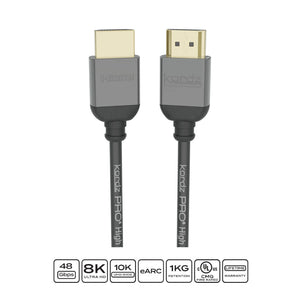

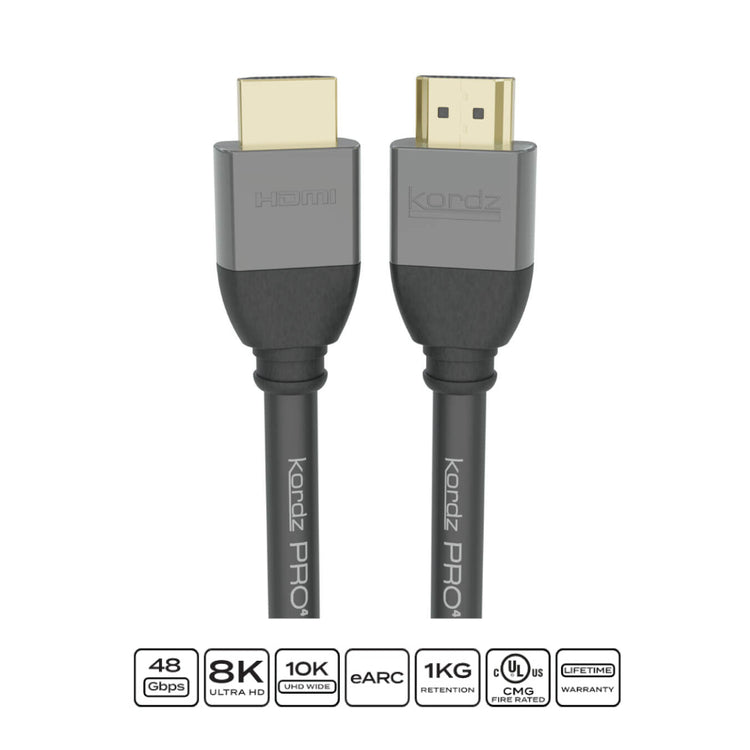

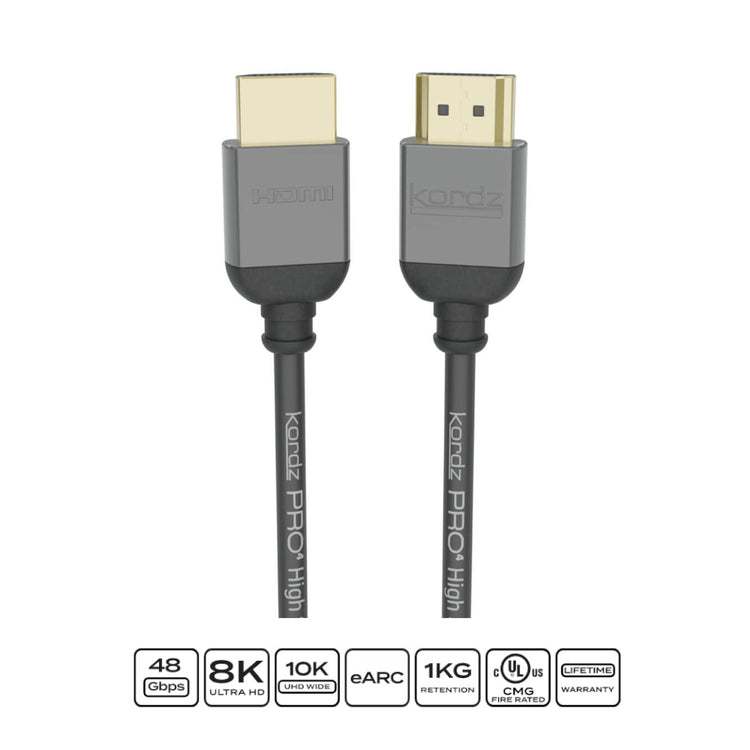

PRO4 48Gbps Passive HDMI Cable

The Kordz PRO4 Passive HDMI® Cable is the professional grade solution for uncompressed 8K/10K HDMI signal transmission, supporting full 48Gbps bandwidth and eARC compatibility for flawless audio-visual performance in short to medium length installations up to 9m.

Its lightweight ABS connector assembly features a secure 1kg retention force, ensuring stable connections, while the flexible, fire-rated cable is designed for easy, hassle-free installation. Each cable undergoes individual production testing for ‘Connectivity Assured’ performance.

Built for durability and backed by a lifetime warranty, the PRO4 Series Passive HDMI Cable is the ideal choice for professional AV installations.

HDMI CERTIFICATION 0.5m – 9.0m PASSIVE

HDMI CTS Certification: Ultra High Speed HDMI® Cable

DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg

Supported Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)

Supported HDMI Clock: 1200MHz

MECHANICAL

Cable Diameter: 0.5m – 2.0m: 34 AWG 4.5mm / 0.18in Ø | 3.0m: 30AWG, 6.0mm / 0.23 | 4.0m – 5.0m: 26 AWG, 8.0mm | 0.31in Ø| 7.0m – 9.0m: 24 AWG 9.0mm | 0.35in Ø

Mounting Length: 0.5m – 2.0m: 34AWG, 59.0mm/2.3” | 3.0m: 30AWG, 59.0mm/2.3” |4.0m – 5.0m: 26 AWG, 66mm/2.6” |7.0m – 9.0m: 24 AWG, 110.5mm/4.4”

Cable Bend Radius: 0.5m – 2.0m: 34 AWG, 25.0mm/1.0” | 3.0m: 30 AWG, 25.0mm/1.0” | 4.0m – 5.0m: 26 AWG, 32.0mm/1.3” |7.0m – 9.0m: 26 AWG, 72.0mm/2.8”

CONSTRUCTION

Primary Conductors: 0.5m-2.0m: Solid 34-24 AWG OFC, length dependent / 3.0m: Solid 30-26 AWG OFC, length dependent / 4.0m-9.0m: Solid 30-24 AWG OFC, length dependent

Insulation on TMDS: Polyethelyene / Polypropylene, length dependent

Insulation on 4C + HEAC Pairs: Polyethelyene / Polypropylene, length dependent

Shielding on TMDS Pairs: AL/Mylar, 100% Coverage with 25% Overlapping

Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage

Cable Jacket: UL CMG fire-rated PVC composite materials

HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1μ” 24K Gold plated

HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated

Termination: High Frequency Soldering

HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief



Kordz by Kordz

Kordz PRO4 48Gbps Passive HDMI Cable

$37.00
$37.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

PRO4 48Gbps Passive HDMI Cable

The Kordz PRO4 Passive HDMI® Cable is the professional grade solution for uncompressed 8K/10K HDMI signal transmission, supporting full 48Gbps bandwidth and eARC compatibility for flawless audio-visual performance in short to medium length installations up to 9m.
