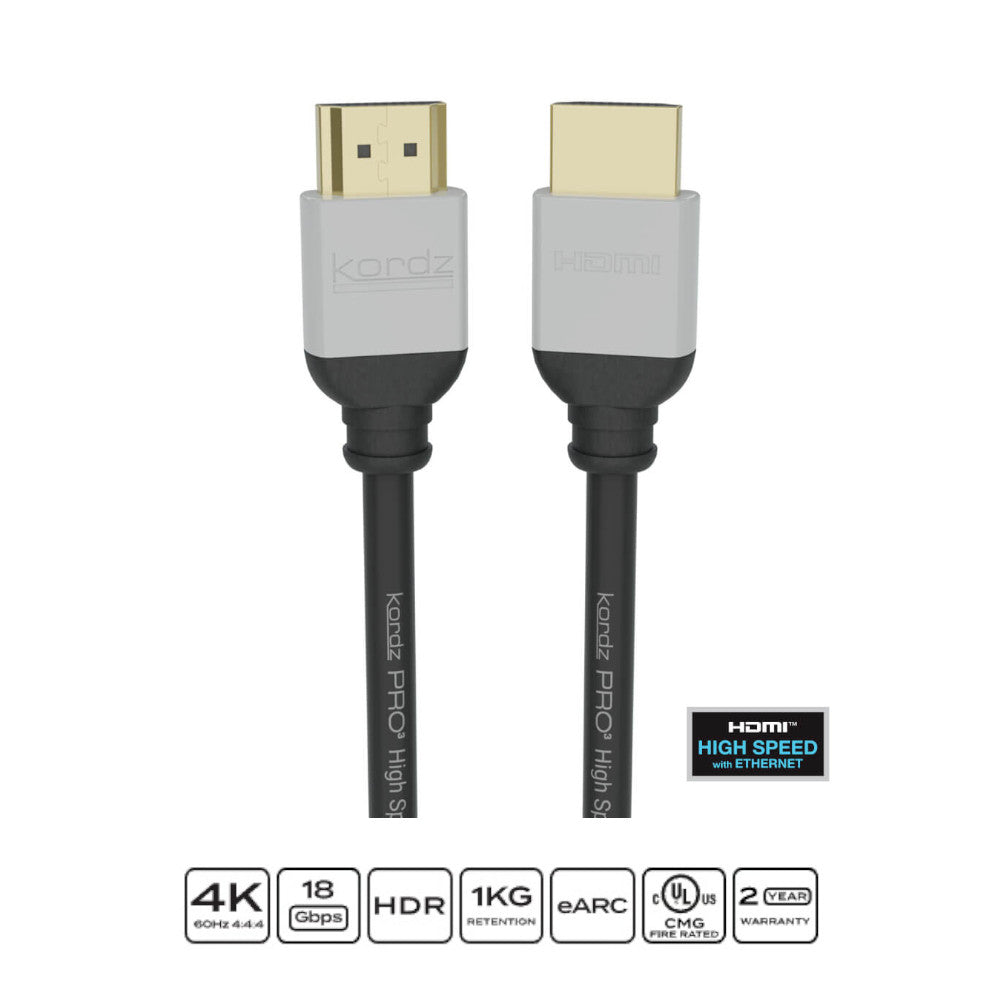

Kordz PRO3 Passive 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free and electronics-free installation experience with compact, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable. Supporting 18Gbps 4K60 HDR up to 9m, they’re backed by the Kordz promise of ‘Connectivity Assured’.
Kordz PRO³ Series is engineered to increase AV installation uptime with high quality materials and production processes for an updated 18Gbps signal across all lengths. Each cable combines lightweight, small form-factor assemblies, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable to make installations easier for the professional AV integrator. This update also reduces the connector footprint by 65% of the previous model, is licensed to support all HDMI 2.0 features and is backed by a Lifetime Warranty.
- Certified High Speed with Ethernet HDMI Cable.
- All lengths support resolutions requiring 18Gbps transfer rates, including 4K60 HDR or 8K/30 4:2:0.
- Every cable individually production tested.
- Solid copper pins and lightweight, folded-gold plated HDMI connectors decrease oxidation and increase signal stability.
- Environmentally friendly lightweight ABS connector assembly (65% of the previous iteration).
- Highly flexible, UL CMG fire rated jacket fits any installation environment.
- Benchmark inter-terminal uniformity through Kordz’ patented soldering techniques.
- Licensed HDMI 2.0 Adopter product individually product tested on assembly line.
- Kordz’s product performance guarantee and warranty for your lifetime.
HDMI CERTIFICATION – 0.5m – 9.0m Lengths
HDMI CTS (Certified Test Specification): High Speed with Ethernet
Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
HDMI Clock: 27-340MHz

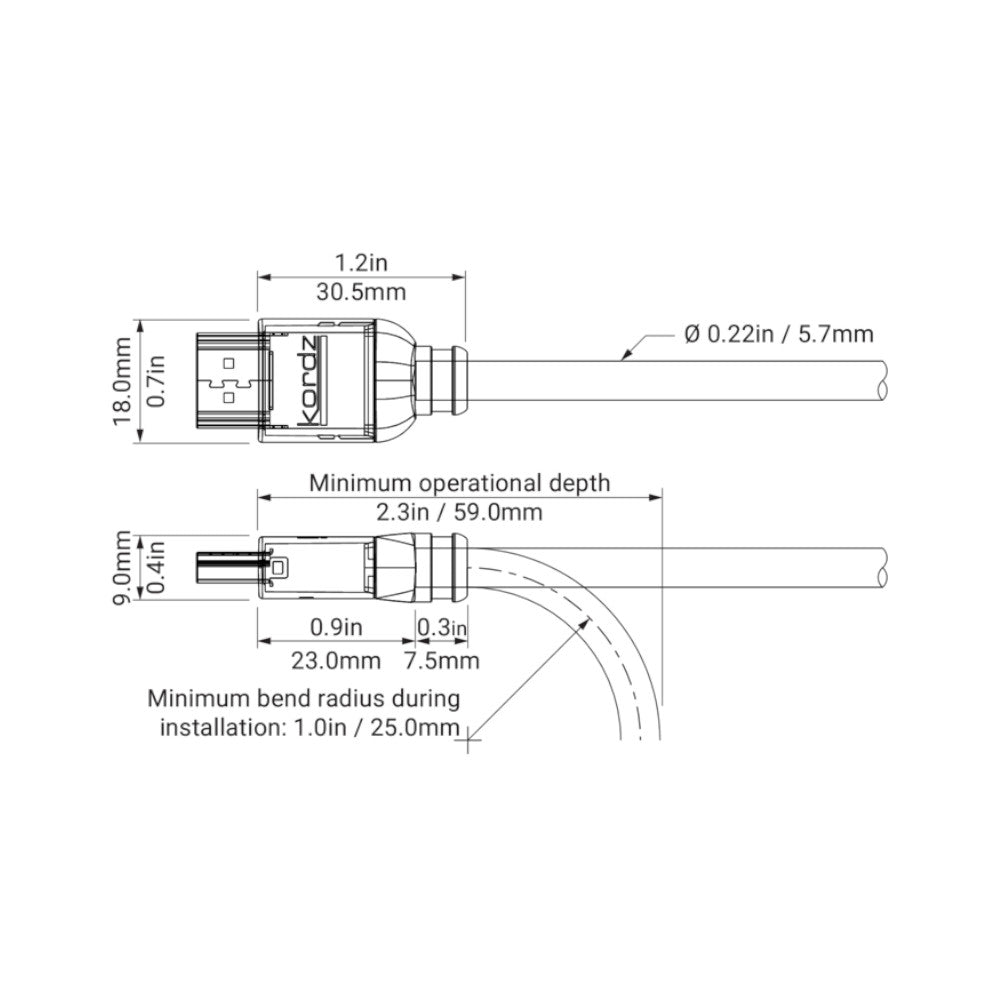

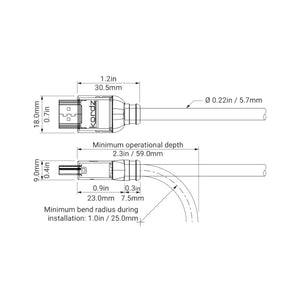

MECHANICAL
Cable Diameter: 30AWG 5.7mm/0.22ӯ| 28AWG 6.5mm/0.26ӯ| 24AWG 9.0mm/0.35ӯ
Mounting Length: cable gauge dependent (see below)
Cable Bend Radius: cable gauge dependent (see below)
Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
Primary Conductors: Solid 30-24AWG OFC, length dependent
Insulation on TMDS: HDPE, Foamed-PE, length dependent
Insulation on 4C + HEAC Pairs: HDPE
Shielding on TMDS Pairs: Al / Mylar, 125% coverage
Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 85% coverage
Cable Jacket: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering
Connector Assembly: ABS connector shell with PVC injection moulded boot and strain relief
Kordz
by
Kordz
Kordz PRO3 Passive HDMI Cable
- Regular price
- $38.50
- Sale price
- $38.50
- Regular price
-
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
4K UHD 18Gbps PASSIVE HDMI CABLE
Kordz PRO3 Passive 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free and electronics-free installation experience with compact, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable. Supporting 18Gbps 4K60 HDR up to 9m, they’re backed by the Kordz promise of ‘Connectivity Assured’.
