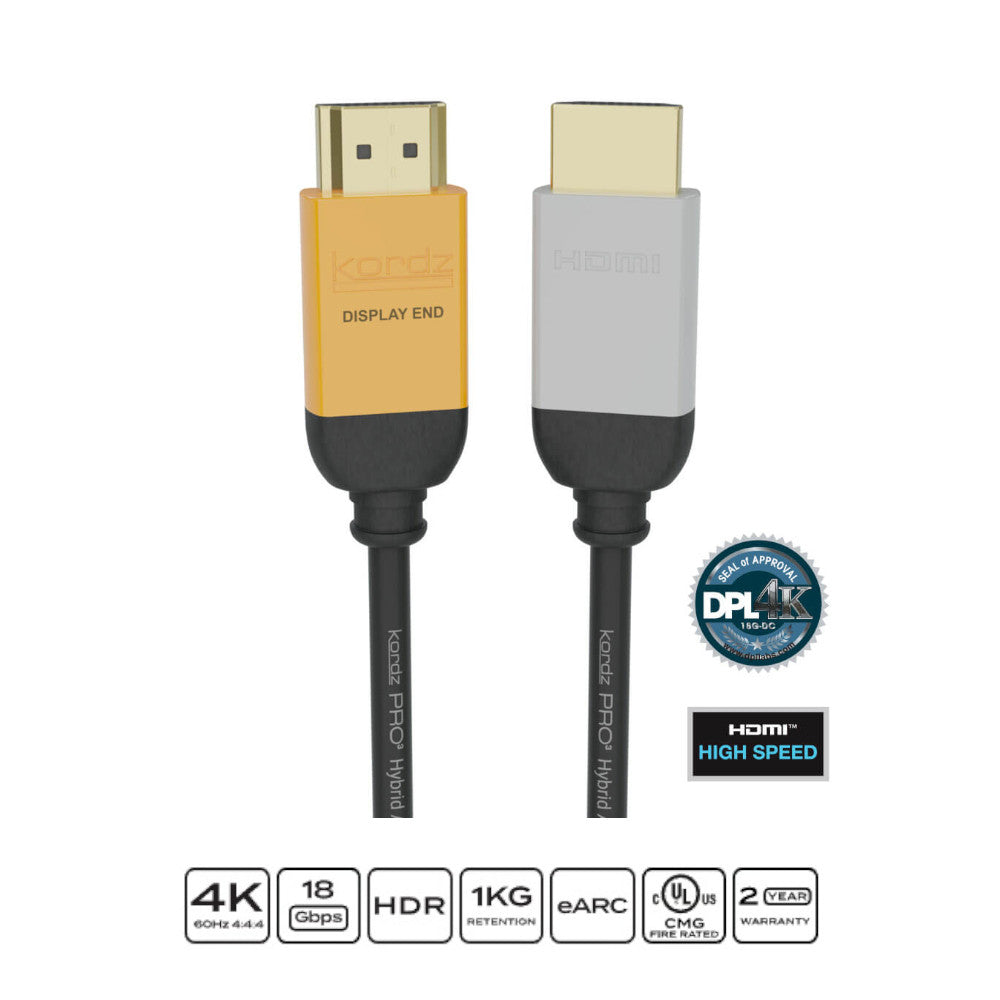

4K UHD 18Gbps ACTIVE OPTICIAL HDMI CABLE (AOC)
Kordz PRO3 Active Optical HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances and they are optimised through Active Optical Technology. Fully shielded high quality ABS shells and 1kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3 Active Optical HDMI Cables with confidence, backed by the Kordz warranty.
- A solid 1kg grip, ensuring connectors stay in place for as long as required
- A compact 18mm wide ABS headshell for easy installation
- Reinforced internals for superior flexibility and pull strength during installation
- A lightweight and UL CMG fire rated jacket for safety
- No external power dependencies, it works like a normal passive HDMI cable
- DPL Labs certified for 18Gbps applications
- High contrast detailed labelling with inventory management design
- Available in 10m, 15m, 20m
HDMI CERTIFICATION 10.0m – 20.0m ACTIVE OPTICAL
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz
MECHANICAL
Cable Diameter: 4.70mm±0.15mm / 0.19” Ø
Mounting Length: 50.0mm/1.96”
Cable Bend Radius: 20.0mm/0.78”
Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
TDMS: OM3 (50/125) optical fibre
Conductors: Tinned copper, 32-26AWG
Insulation on TMDS: CMG Composite Polymer
Insulation on 4C + HEAC Pairs: FEP / FRPVC
Shielding Overall: AL/Mylar
Cable Jacket Material: CMG FRPVC Composite, 10-20m lengths
HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
Active Technology: Directional, In-shell Optical Light Engine
Termination: Contactless IR induction soldering
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
Kordz
by
Kordz
Kordz PRO3 Active Optical HDMI Cable
- Regular price
- $268.00
- Sale price
- $268.00
- Regular price
-
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
4K UHD 18Gbps ACTIVE OPTICIAL HDMI CABLE (AOC)
Kordz PRO3 Active Optical HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances and they are optimised through Active Optical Technology. Fully shielded high quality ABS shells and 1kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3 Active Optical HDMI Cables with confidence, backed by the Kordz warranty.
