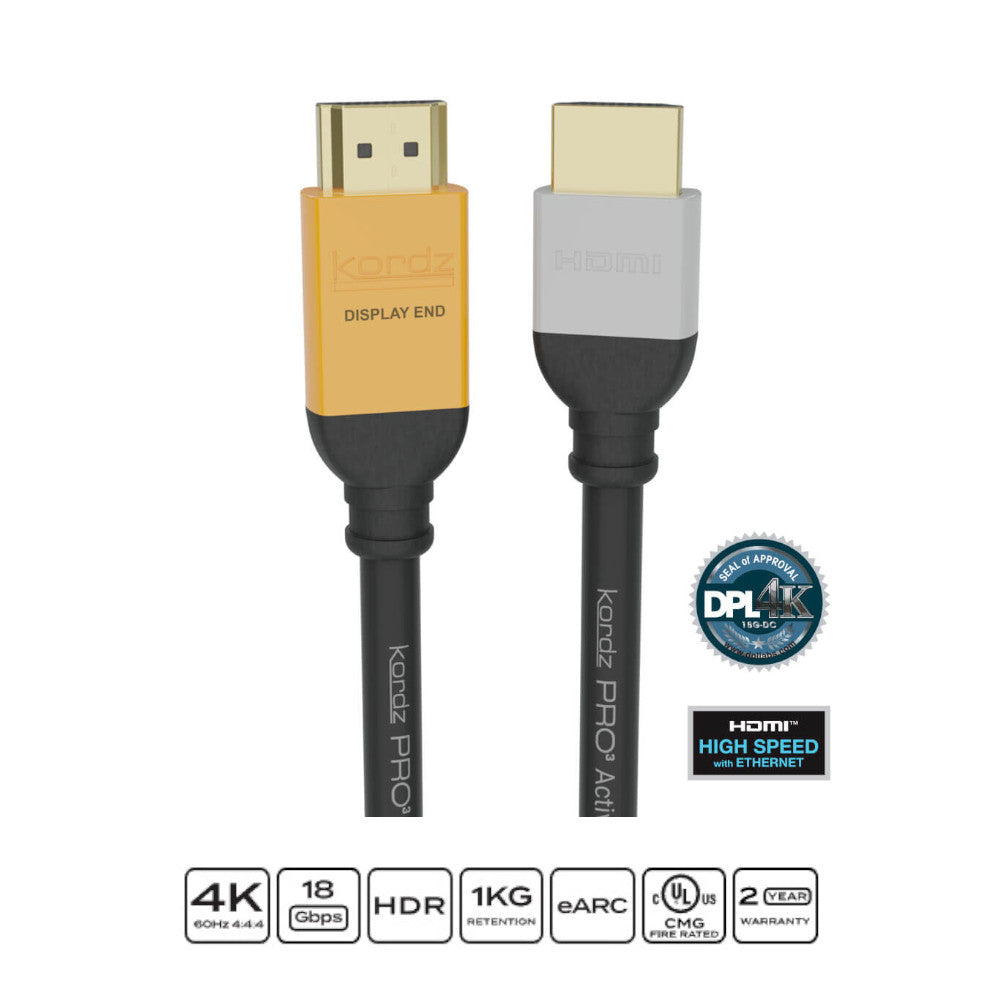

Kordz PRO3 Active Copper HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances, optimised through Active Copper Technology. Fully shielded high quality ABS shells and 1Kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3 Active Copper HDMI Cables with confidence, backed by the Kordz warranty.
- Solid 1Kg grip, ensuring connectors stay in place for as long as required
- Compact 18mm wide ABS headshell for easy installation
- Superior flexibility and pull strength during installation
- A lightweight and UL CMG fire rated jacket for safety
- No external power dependencies, it works like a normal passive HDMI cable
- 18Gbps certification from DPL Labs
- High contrast detailed labelling with inventory management design
- Available in 7.5m, 12.5m, 15m
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz
MECHANICAL
Cable Diameter: 28 AWG 6.8mm | 0.26in Ø
Mounting Length: 50.0mm/1.96 in
Cable Bend Radius: 40.8mm | 1.60in
Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
TDMS: HDPE, Foamed-PE, length-dependent
Conductors: Solid 28 AWG OFC, length dependent
Insulation on 4C + HEAC Pairs: HDPE
Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 65% coverage
Cable Jacket Material: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
Termination: High-Frequency Soldering
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
Kordz
by
Kordz
Kordz PRO3 Active Copper HDMI Cable
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Kordz PRO3 Active Copper HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances, optimised through Active Copper Technology. Fully shielded high quality ABS shells and 1Kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3 Active Copper HDMI Cables with confidence, backed by the Kordz warranty.
