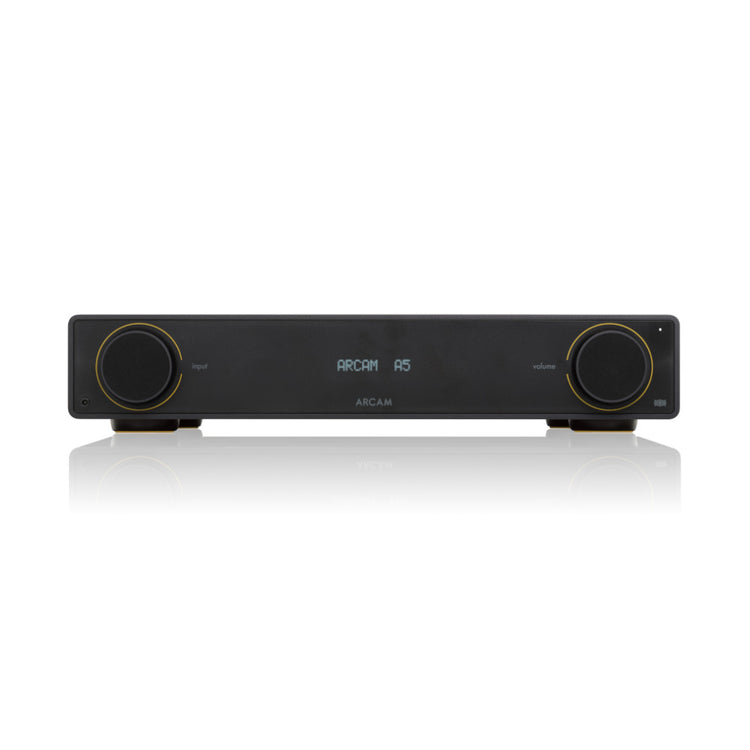

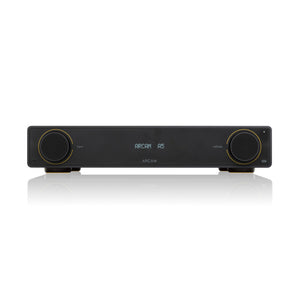

ARCAM A5 Stereo Integrated Amplifier Front

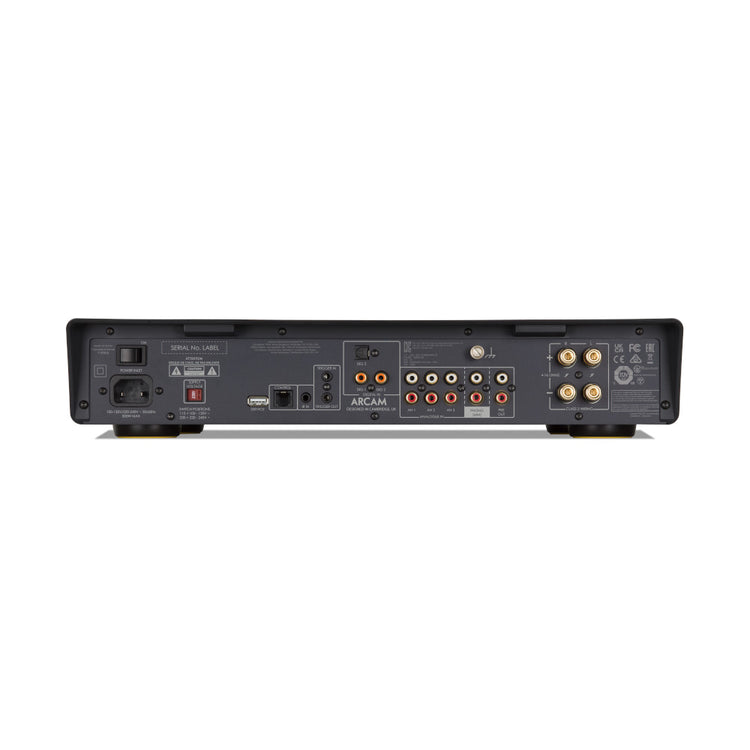

ARCAM A5 Stereo Integrated Amplifier Rear Panel

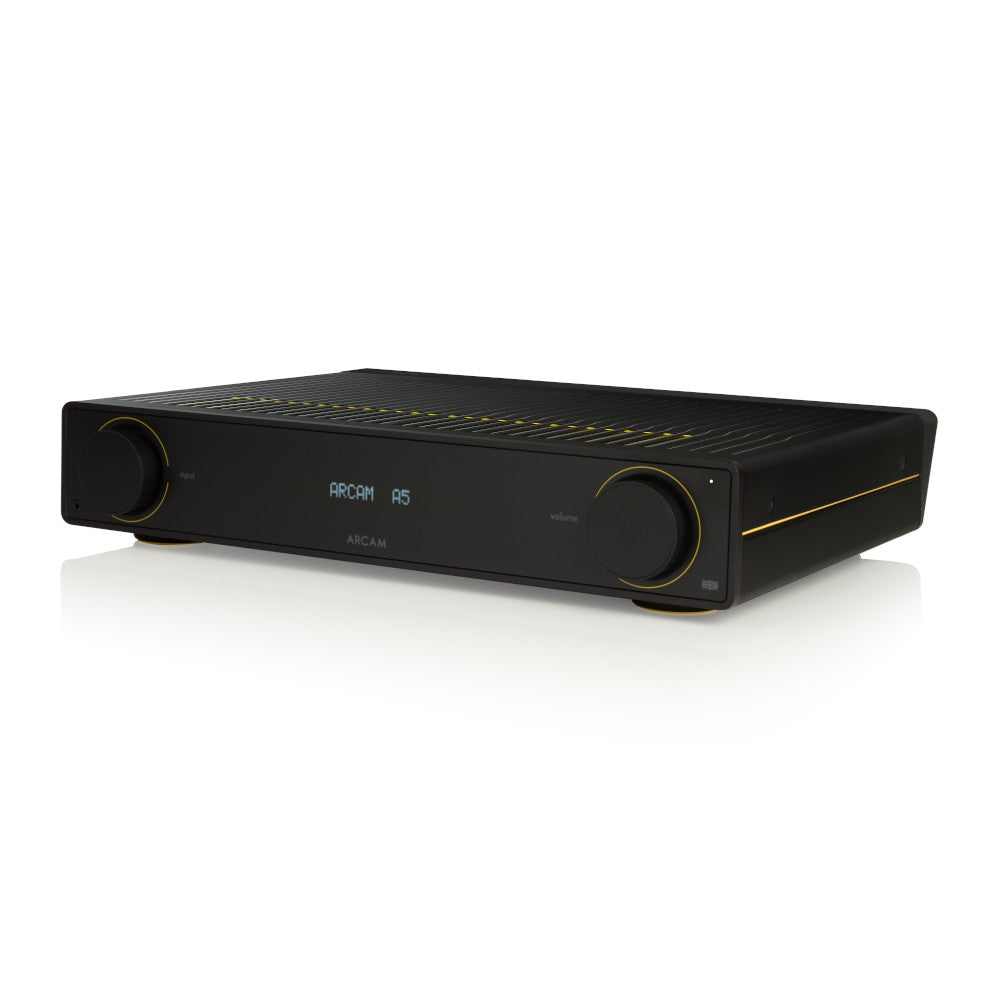

ARCAM A5 Stereo Integrated Amplifier angled photo
    ARCAM A5 Stereo Integrated Amplifier Front
    ARCAM A5 Stereo Integrated Amplifier Rear Panel
    ARCAM A5 Stereo Integrated Amplifier angled photo
ARCAM A5 Stereo Integrated Amplifier Front
ARCAM A5 Stereo Integrated Amplifier Rear Panel
ARCAM A5 Stereo Integrated Amplifier angled photo
ARCAM A5 Stereo Integrated Amplifier Front
ARCAM A5 Stereo Integrated Amplifier Rear Panel
ARCAM A5 Stereo Integrated Amplifier angled photo
    ARCAM A5 Stereo Integrated Amplifier Front
    ARCAM A5 Stereo Integrated Amplifier Rear Panel
    ARCAM A5 Stereo Integrated Amplifier angled photo
ARCAM A5 Stereo Integrated Amplifier Front
ARCAM A5 Stereo Integrated Amplifier Rear Panel
ARCAM A5 Stereo Integrated Amplifier angled photo

Features:


• 2x 50 Watts per channel into 8 ohms
• Bluetooth 5.2 with AptX Adpative
• Connect wired or wireless headphones
• Hi-res audio digital inputs
• ESS ES9018 DAC
• Class AB amplification
• Solid aluminium dials
• Aluminium front, top, sides and rear panels
• Compact remote control
• Plastic free packaging

The ARCAM A5 is for those intimate listening experiences with your favourite music.

The "A" in ARCAM stands for Amplification - this is our core competence. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.

So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.

Hi-res audio is included with high resolution digital audio inputs included.

Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.

Continuous Power Output (0.5% THD), per channel:

  • 2 channels driven, 20Hz – 20kHz, 8Ω: 50W
  • 2 channels driven, 1kHz, 4Ω: 75W

Harmonic Distortion, 80% Power, 8Ω at 1kHz: 0.003%

Analogue Inputs:

  • Number of inputs: 3 (RCA pairs)
  • Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
  • Frequency response: 20Hz—20kHz ± 0.2dB

Phono (MM) Input:

  • Input impedance: 47kΩ + 100pF
  • Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB

Digital Inputs:

  • Supported Sample Rates (kHz):
  • Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
  • Optical (Toslink): 192, 176.4, 96, 88.2, 48, 44.1
  • Bit depths (bit): 24, 16
  • Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
  • Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB

Headphone Output:

  • Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5V
  • Load range: 16Ω – 2kΩ

General:

  • Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum): 350W
  • Power consumption (standby): <0.5W
  • Dimensions (W x D x H, including speaker terminals and feet): 431 x 344 x 83mm
  • Weight (net): 8kg
  • Weight (packed): 11kg

Supplied Accessories:

  • Mains lead(s)
  • Remote control with 2 x AAA batteries
  • Quick Start Guide
  • Important Safety Instructions
Arcam by Arcam

Arcam A5 Stereo Amplifier

Regular price
$1,495.00
Sale price
$1,495.00
Regular price
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Call us on (02) 9651 4922 for our special introductory price!

The ARCAM A5 is for those intimate listening experiences with your favourite music.

The “A” in ARCAM stands for Amplification – this is our core competence. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 – the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
