Key Features of the Rotel CD14 MKII
- Texas Instruments premium 32-bit/384kHz Digital to Analogue Converter

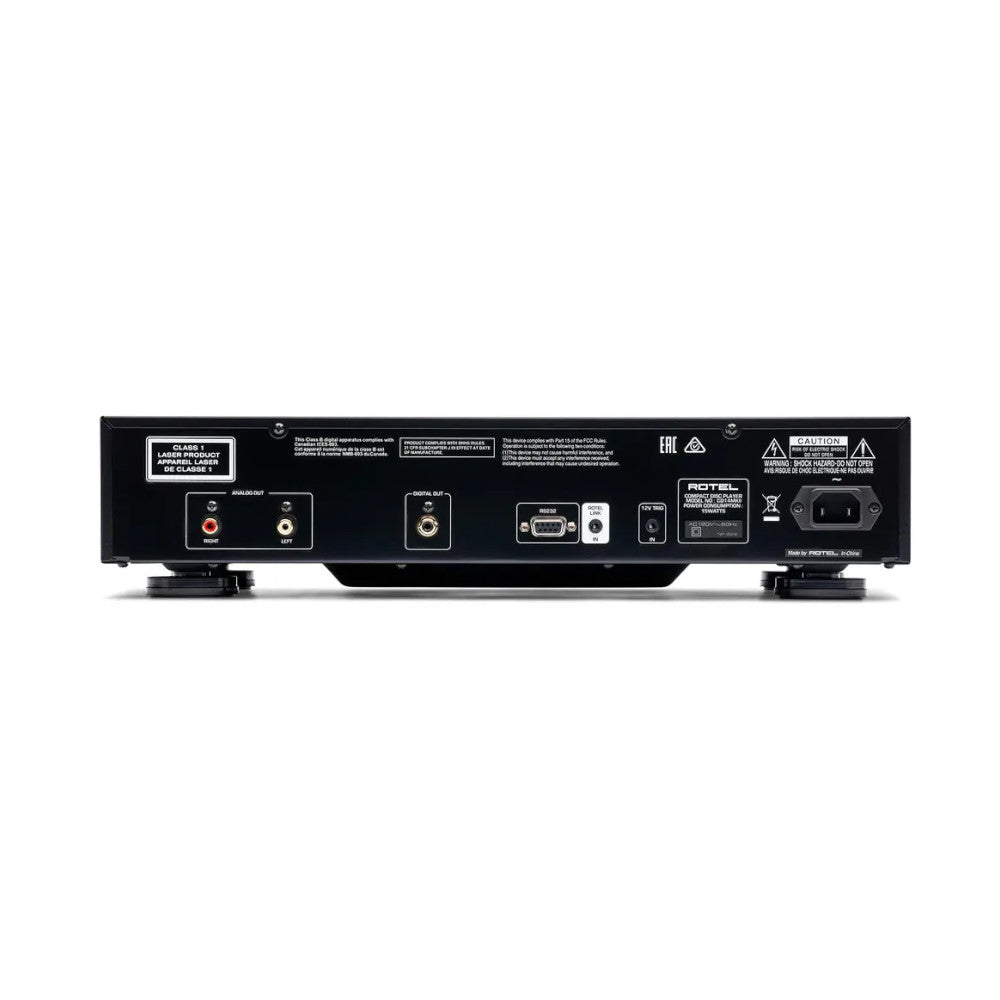

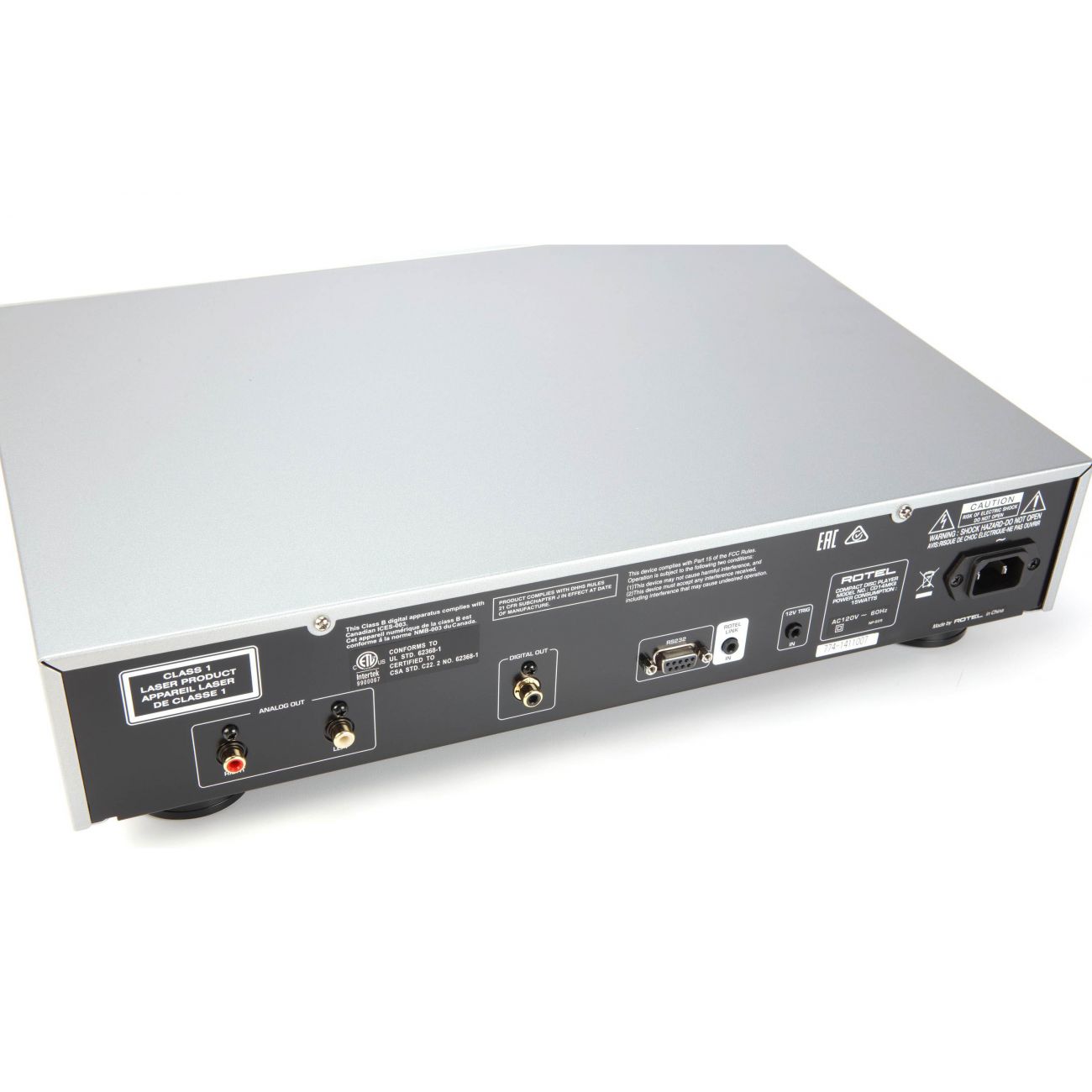

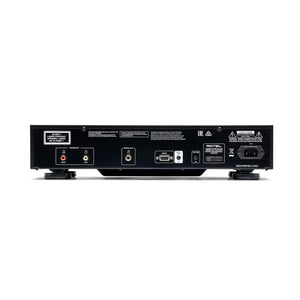

- Digital and analogue outputs
- RS-232 connection
- 12 volt trigger input
- Includes remote control

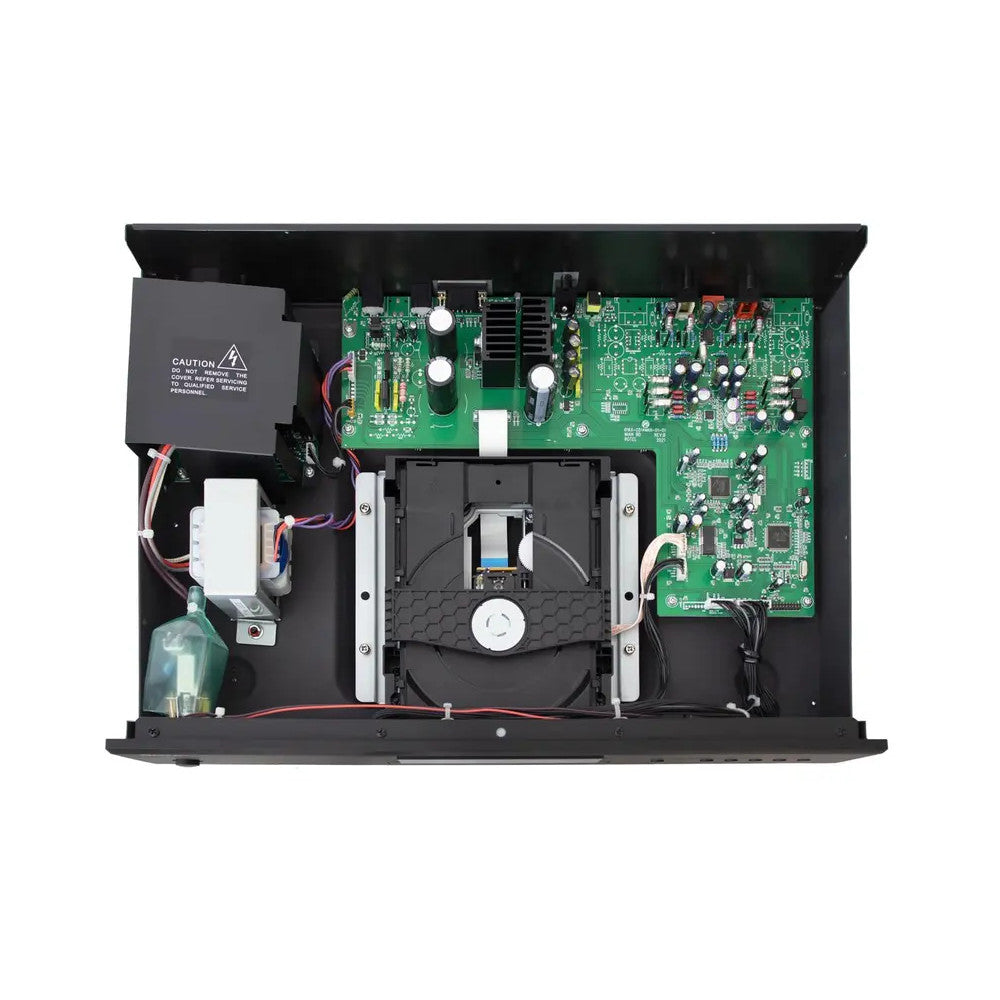

Critical Digital to Analog conversion is managed by a premium Texas Instruments 32-bit DAC with independent power supplies eliminating unwanted distortion and isolating motor controls from sensitive audio circuits reducing noise and distortion.

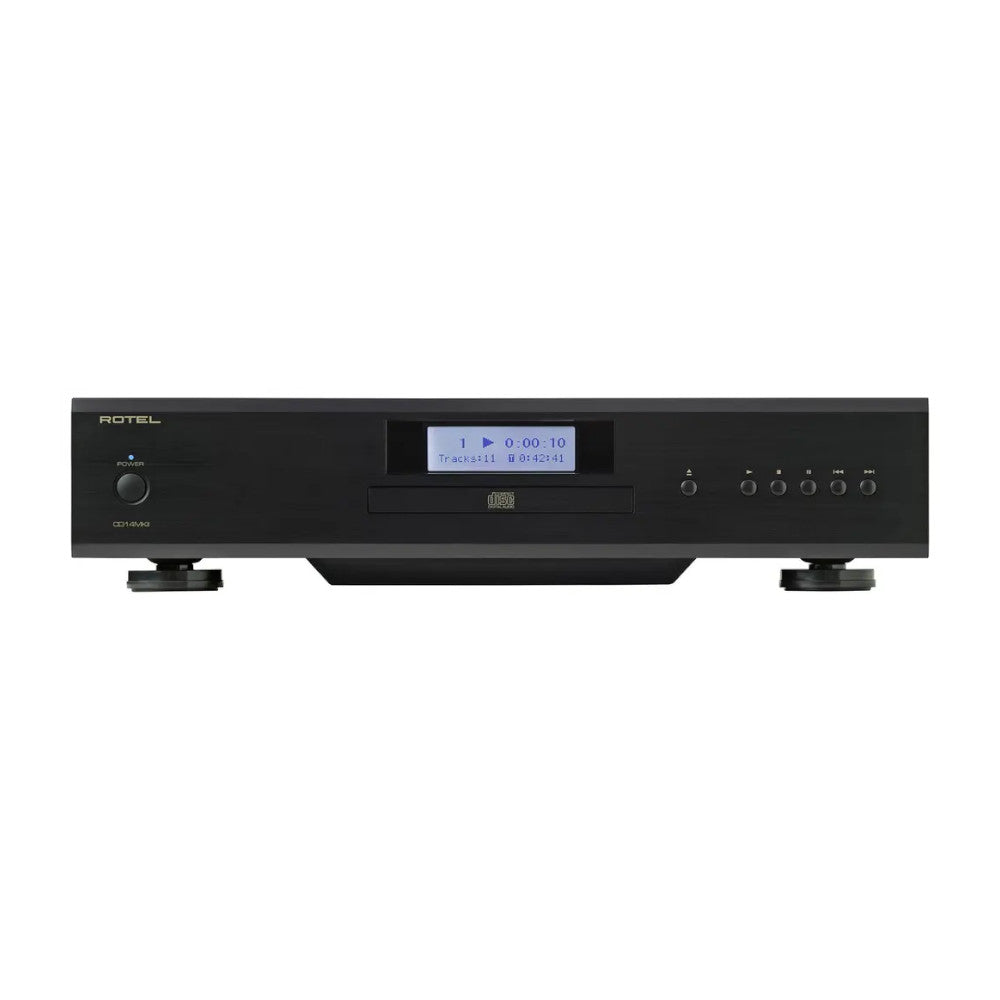

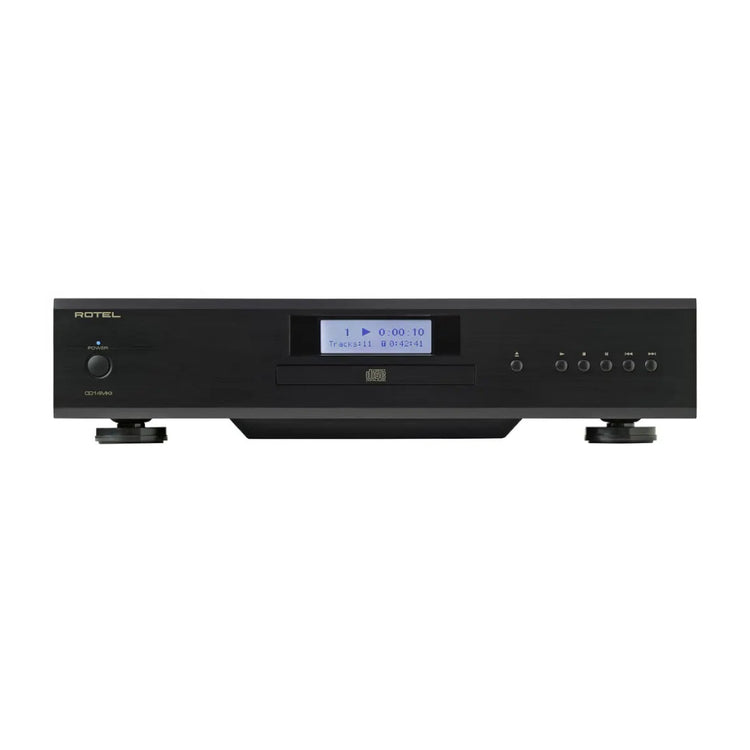

The tray loading CD mechanism, IR remote, front panel controls and graphic display ensure seamless operation.
Bring your CD’s and allow the CD14MKII to showcase your music with stunning detail, clarity, and accuracy.
Total Harmonic Distortion + Noise: 0.0035% @ 1 kHz
Intermodulation Distortion: 0.0035% @ 1 kHz
Frequency Response (± 0.5 dB): 20 - 20,000 Hz
Channel Balance: ± 0.5 db
Phase Linearity: ± 0.5 degree
Channel Separation: > 118 dB @ 10 kHz
Signal to Noise Ratio (A weighting): > 118 dB
Dynamic Range > 99 dB
Digital to Analog Converters Texas Instruments
Analog Output impedance 100 Ohms
Digital Output 0.5 Volt, Peak to Peak
Load Impedance 75 Ohms
Power Requirements (AC)
USA 120V, 60 Hz
EC 230V, 50 Hz
Power Consumption 15 Watts
Standby Power Consumption < 0.5 Watts
Dimensions (W, H, D) 430 x 98 x 314 mm
17'' x 3 7/8'' x 12 3/8''
Front Panel Height 80 mm / 3 1/8''
Weight (net) 6.51 kgs, 14.35 lbs.
- Analogue Outputs: RCA 1
- DAC: Resolution 32-bit/384kHz Type Texas Instruments
- Digital Outputs: Coaxial 1
Rotel
by
Rotel

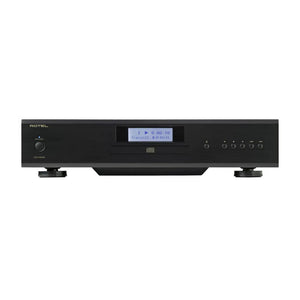

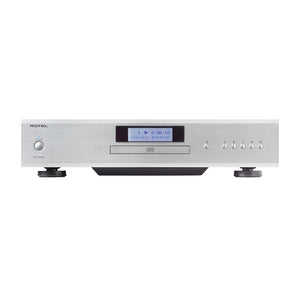

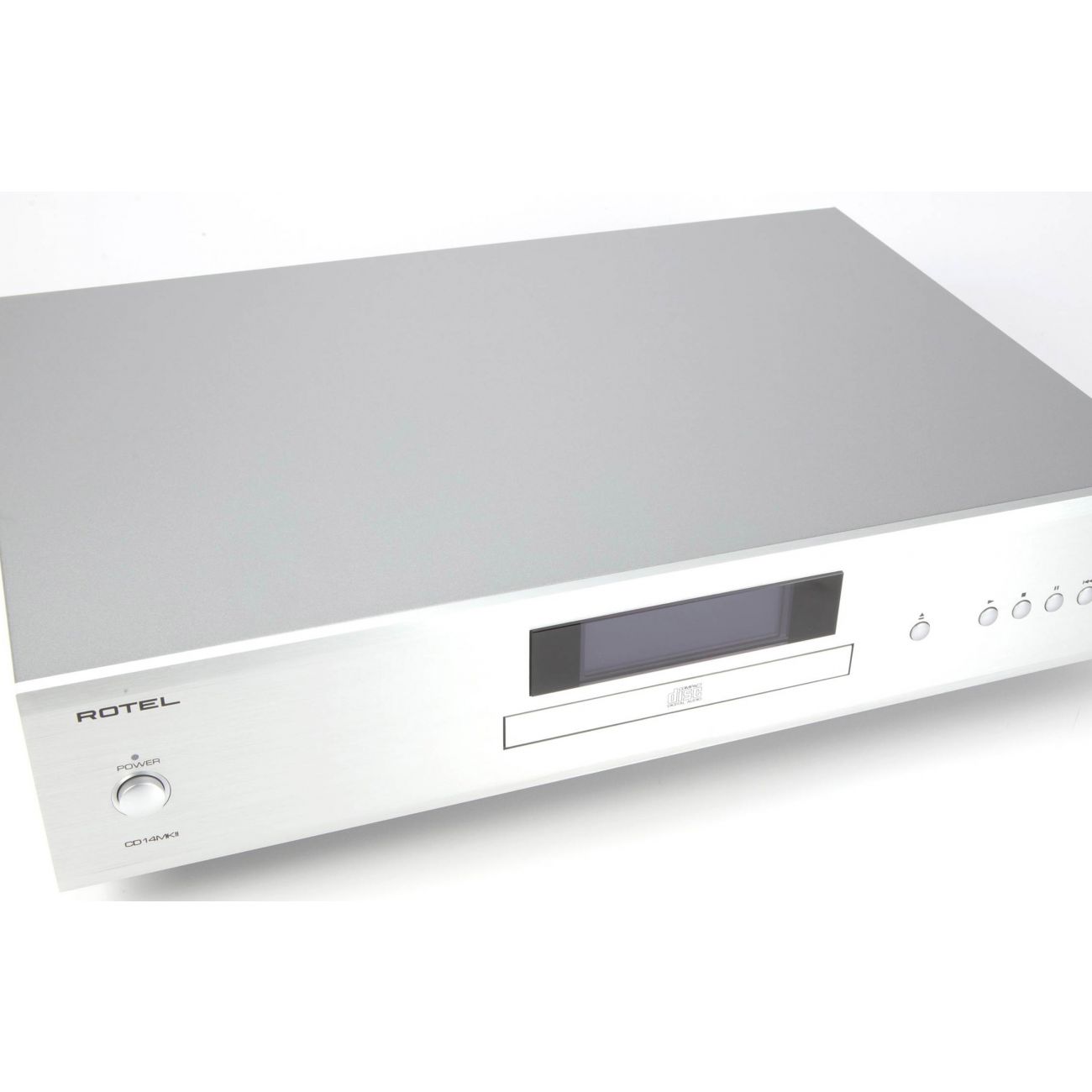

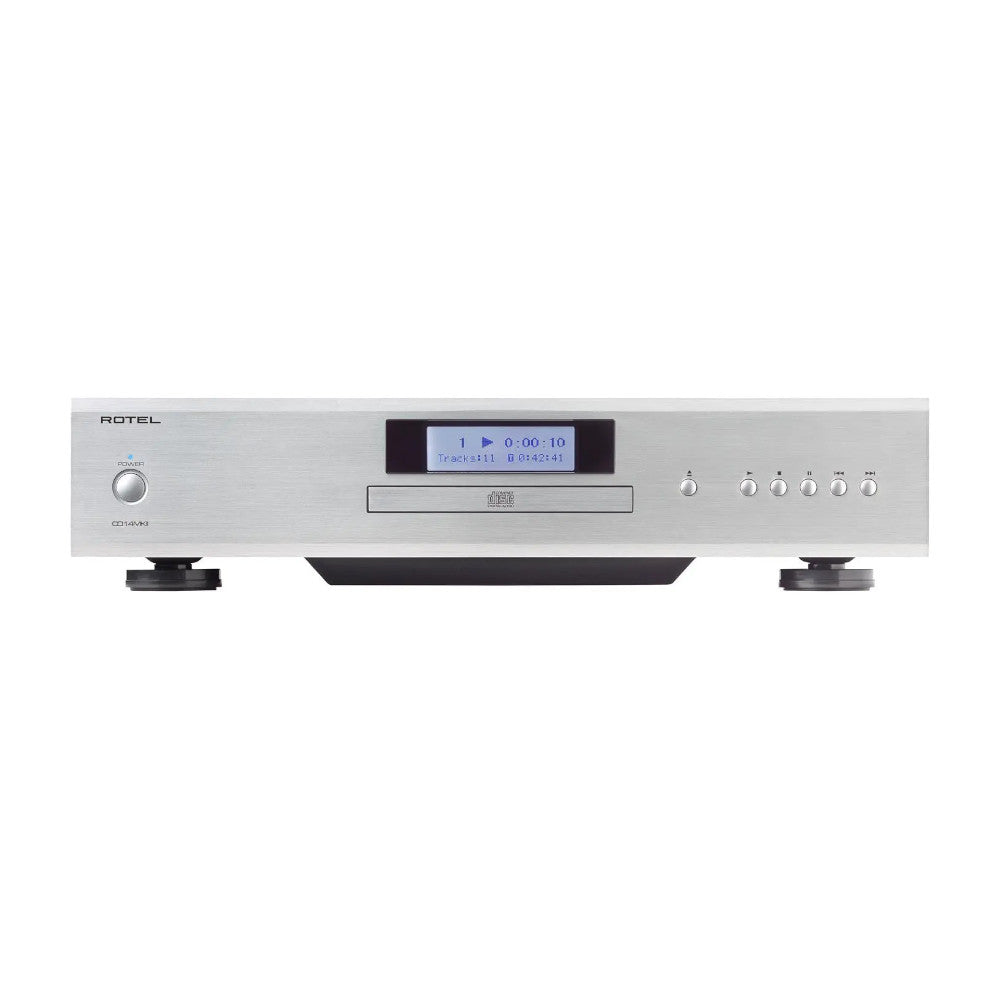

Rotel CD14 MKII CD Player
- Regular price
- $989.00
- Sale price
- $989.00
- Regular price
-
$1,099.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
The CD14 MKII follows Rotel’s tradition of award-winning CD players with innovations to the power supply, and newly tuned acoustic component resulting in a more accurate reproduction of the audio with rich, genuine detail.
